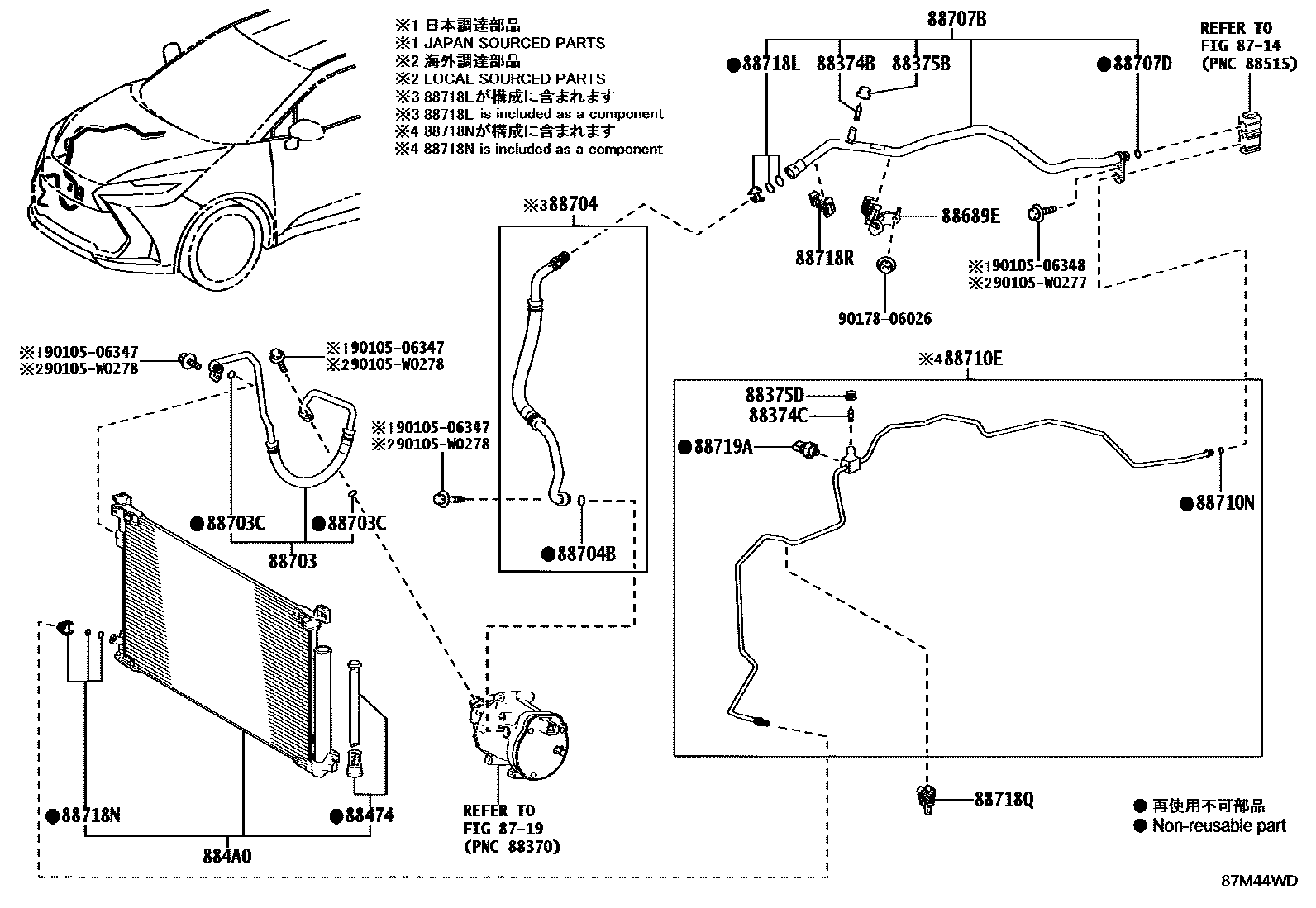

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZYX20;MAXH20,25..EUR202310

88374CVALVE, SERVICE, NO.2

main88374-30010iMAXH21202401

main88374-30020iMAXH20,25,ZYX20..EUR,TUR¥350202310

main88374-33070iMAXH20,25,ZYX20..ARL202310-202502

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZYX20..ARL202310-202502

main88375-30310iMAXH20,25,ZYX20..EUR,TUR202310

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iMAXH20,25,ZYX20..ARL202310-202502

main88375-30310iMAXH21202401

main88375-30320iMAXH20,25,ZYX20..EUR,TUR202310

88474DRYER, COOLER

main88474-12010iMAXH20,25,ZYX20¥0202310

884A0CONDENSER ASSY, COOLER

main884A0-02340iMAXH20,25,ZYX20202310

main884A0-F4090iMAXH21202401

88689EBRACKET, COOLER, NO.1

main88688-F4050iMAXH20,25,ZYX20202310

88703HOSE SUB-ASSY, DISCHARGE

main88703-02E90iZYX20202310

main88703-02F50iMAXH20,25202310

main88703-47140iMAXH21¥8,400202401

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iMAXH2#,ZYX20¥0202310

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-02D21iMAXH20,25202310

main88704-02G10iZYX20202310

main88704-47150iMAXH21¥9,500202401

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iMAXH20,25,ZYX20202310

ID=13.4,OD=18.2

main90099-14169iMAXH21¥0202401

ID=17.2,OD=22.0

88707BTUBE SUB-ASSY, SUCTION, B

main88707-02510iMAXH20,25..LHD202310

main88707-02530iMAXH20,25..RHD..EUR202310

main88707-F4010iZYX20..RHD..EUR202310

main88707-F4020iZYX20..LHD202310

main88707-F4100iZYX20..ARL202310-202502

main88707-F4140iMAXH20,25..ARL202310-202502

88707DRING, O(FOR SUCTION TUBE)

main90068-14038iZYX20..LHD..EUR¥220202310

ID=13.4,OD=18.2

main90068-14038iMAXH20,25..EUR¥220202310

ID=13.4,OD=18.2,MOLDOVA SPEC

main90068-14038iMAXH20,25..EUR¥220202310

ID=13.4,OD=18.2,AZERBAIJAN SPEC

main90068-14038iMAXH20,25..EUR¥220202310

ID=13.4,OD=18.2,UKRAINE SPEC

main90068-14038iMAXH20,25..EUR¥220202310

ID=13.4,OD=18.2,GEORGIA SPEC

main90099-14121iZYX20202310

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-F4160iMAXH20,25..ARL202310-202502

main88710-F4220iZYX20..ARL202310-202502

main88710-F4330iMAXH20,25..LHD202310

main88710-F4340iMAXH20,25..RHD..EUR202310

main88710-F4360iZYX20..RHD..EUR202310

main88710-F4370iZYX20..LHD202310

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iMAXH20,25,ZYX20202310

ID=6.7,OD=10.3

88718LCLAMP, PIPING

main88718-52280iZYX20;MAXH20,25..EUR¥0202310

88718NCLAMP, PIPING

main88718-1E150iMAXH20,25,ZYX20¥0202310

88718QCLAMP, PIPING

main88718-02A30iMAXH20,25,ZYX20202310

88718RCLAMP, PIPING

main88718-76030iMAXH20,25202310

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMAXH20,25..ARL202310-202502

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

90105W0277

main90105-W0277

90105W0278

main90105-W0278

9017806026

main90178-06026¥80

27 parts on this diagram · 8 diagrams in section
