HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

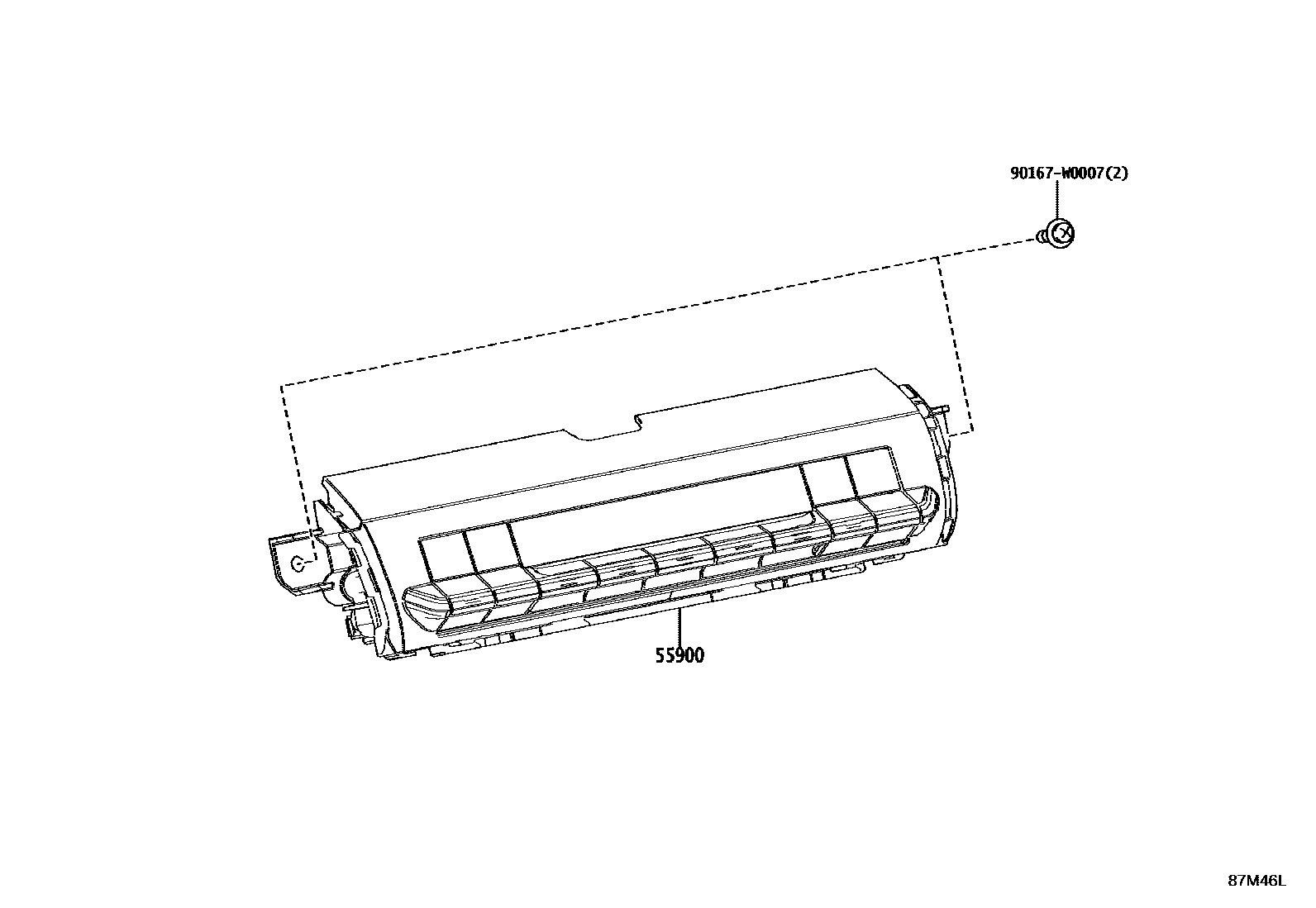

55900CONTROL ASSY, AIR CONDITIONER

main55900-F4580iZYX20..LHD..N202310

main55900-F4600iMAXH20,25,ZYX20..LHD..K202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55900-F4610iMAXH20,25,ZYX20..LHD..K202310

SEAT HEATER-WITH

main55900-F4610iMAXH21..LHD;MAXH20,25,ZYX20..LHD..(E,G)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT HEATER-WITH

main55900-F4620iZYX20..RHD..N..EUR202310

main55900-F4640iZYX20..N..ARL202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55900-F4650iMAXH2#,ZYX20..RHD..(E,G,K)202310

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT HEATER-WITH

main55900-F4650iMAXH2#,ZYX20..RHD..(E,G,K)202310

SEAT HEATER-WITH

90167W0007

main90167-W0007¥110

2 parts on this diagram · 5 diagrams in section
