SPEAKER

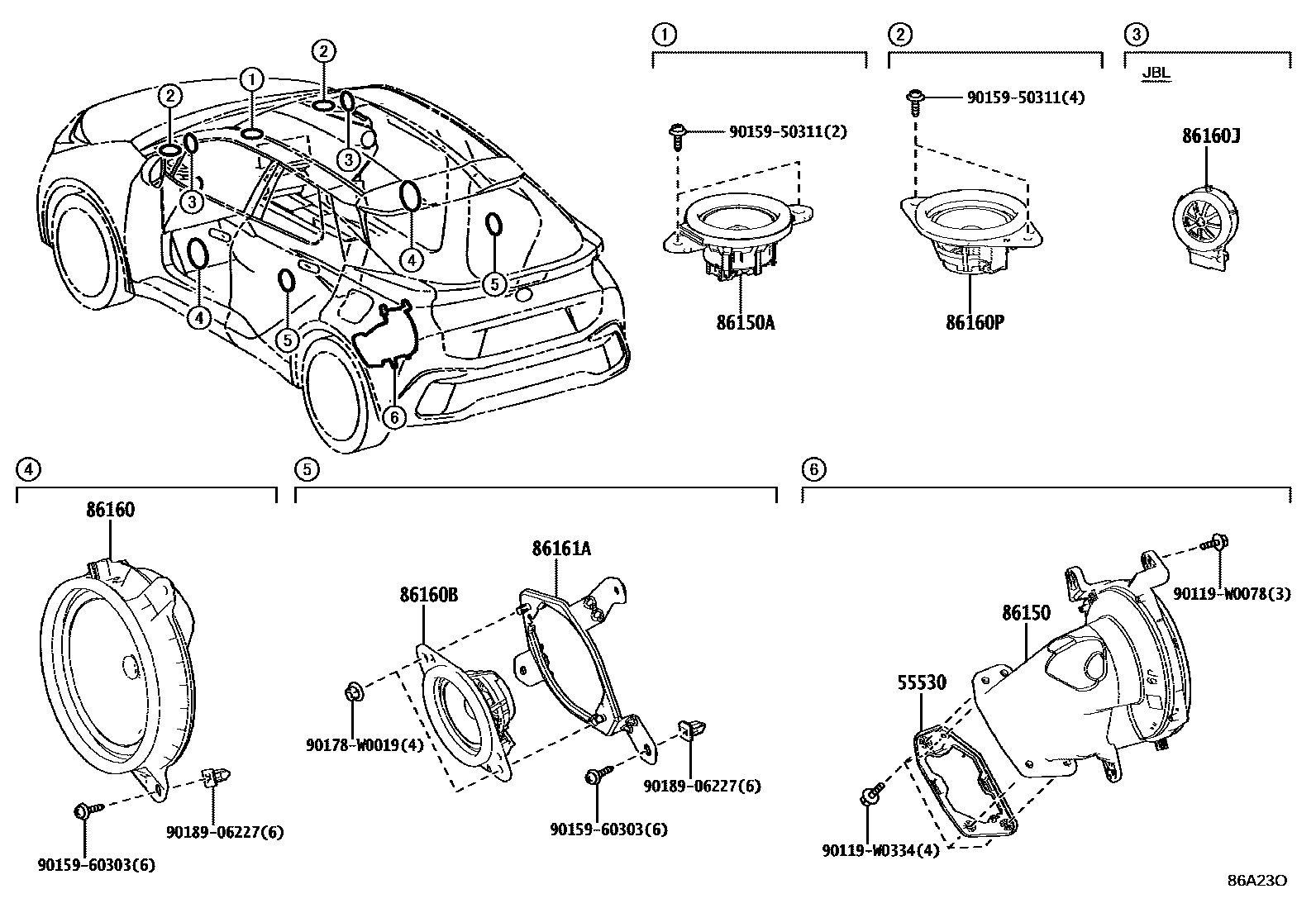

Parts diagram
55530COVER ASSY, SPEAKER OPENING
86150SPEAKER ASSY, W/BOX, NO.1
86150ASPEAKER ASSY, W/BRACKET, NO.2
main86150-F4090i202310
MOLDOVA SPEC
main86150-F4090i202310
AZERBAIJAN SPEC
main86150-F4090i202310
UKRAINE SPEC
main86150-F4090i202310
NEW ZEALAND SPEC
main86150-F4090i202310
GEORGIA SPEC
86160SPEAKER ASSY, FRONT NO.1
main86160-1A210i202310
86160BSPEAKER ASSY, REAR
main86160-F4070i202310
86160JSPEAKER ASSY, FRONT NO.3
86160PSPEAKER ASSY, FRONT NO.2
main86160-F4060i202310
86161ABRACKET, SPEAKER, REAR
main86161-F4010i202310
RH
main86161-F4020i202310
LH
90119W0078
90119W0334
9015950311
9015960303
90178W0019
9018906227

14 parts on this diagram · 1 diagram in section
