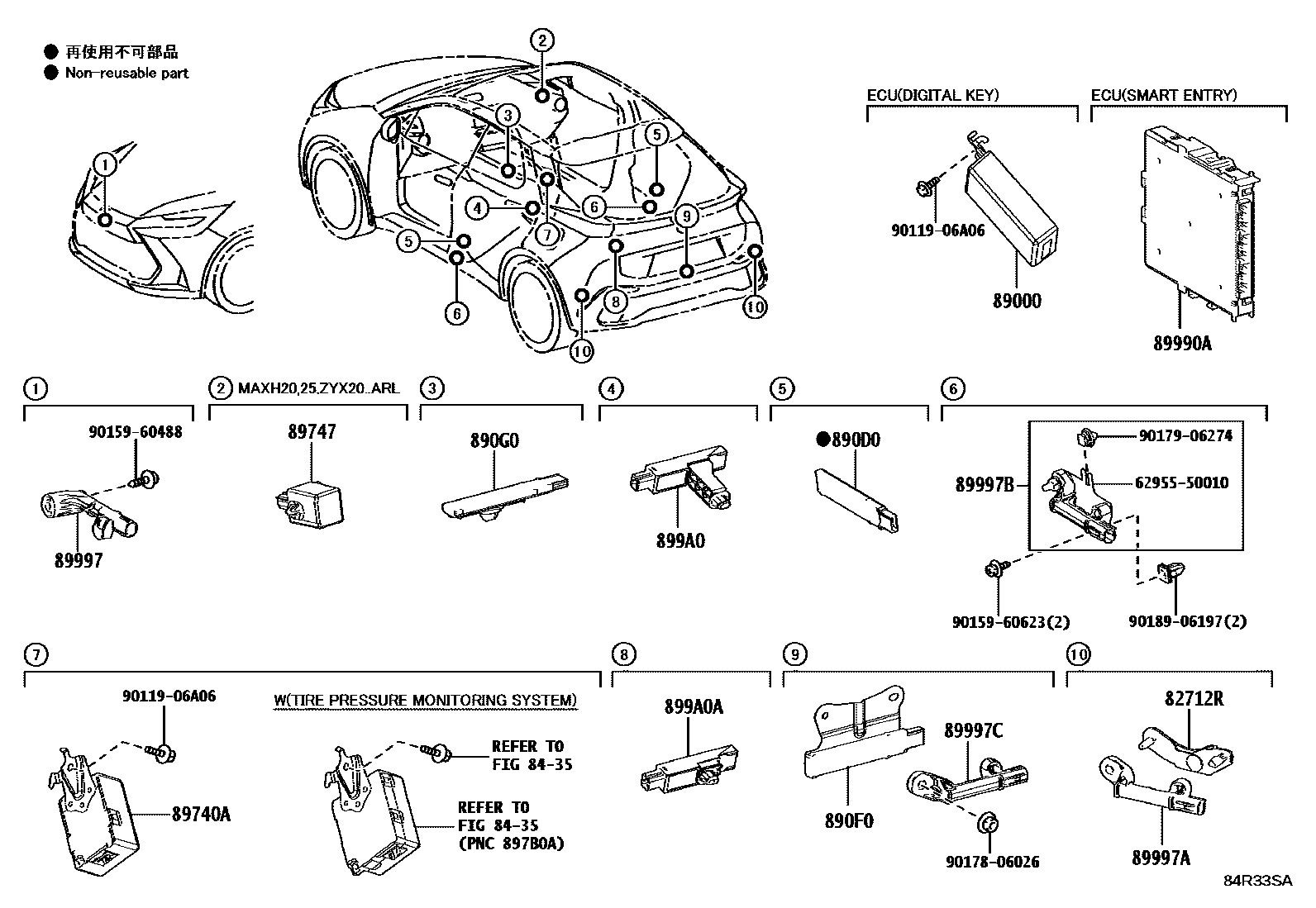

WIRELESS DOOR LOCK
82712RSUPPORT, ELECTRICAL KEY ANTENNA
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
ADVANCED PARK-WITH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
8435
890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY
main890D0-78010
890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY
main890F0-47010
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
main890G0-76010
89740ARECEIVER ASSY, SMART DOOR CONTROL
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
SMART ENTRY-WITH
89997ANTENNA, ELECTRICAL KEY
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
ADVANCED PARK-WITH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
89997AANTENNA, ELECTRICAL KEY, NO.2
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
ADVANCED PARK-WITH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
89997BANTENNA, ELECTRICAL KEY, NO.3
SMART ENTRY-WITH
89997CANTENNA, ELECTRICAL KEY, NO.4
SMART ENTRY-WITH
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
6295550010SEAL, ROOF SIDE VENT
main62955-50010
9011906A06
main90119-06A06
9015960488
main90159-60488
9015960623
main90159-60623
9017806026
main90178-06026
9017906274
main90179-06274
9018906197
main90189-06197
22 parts on this diagram · 1 diagram in section
