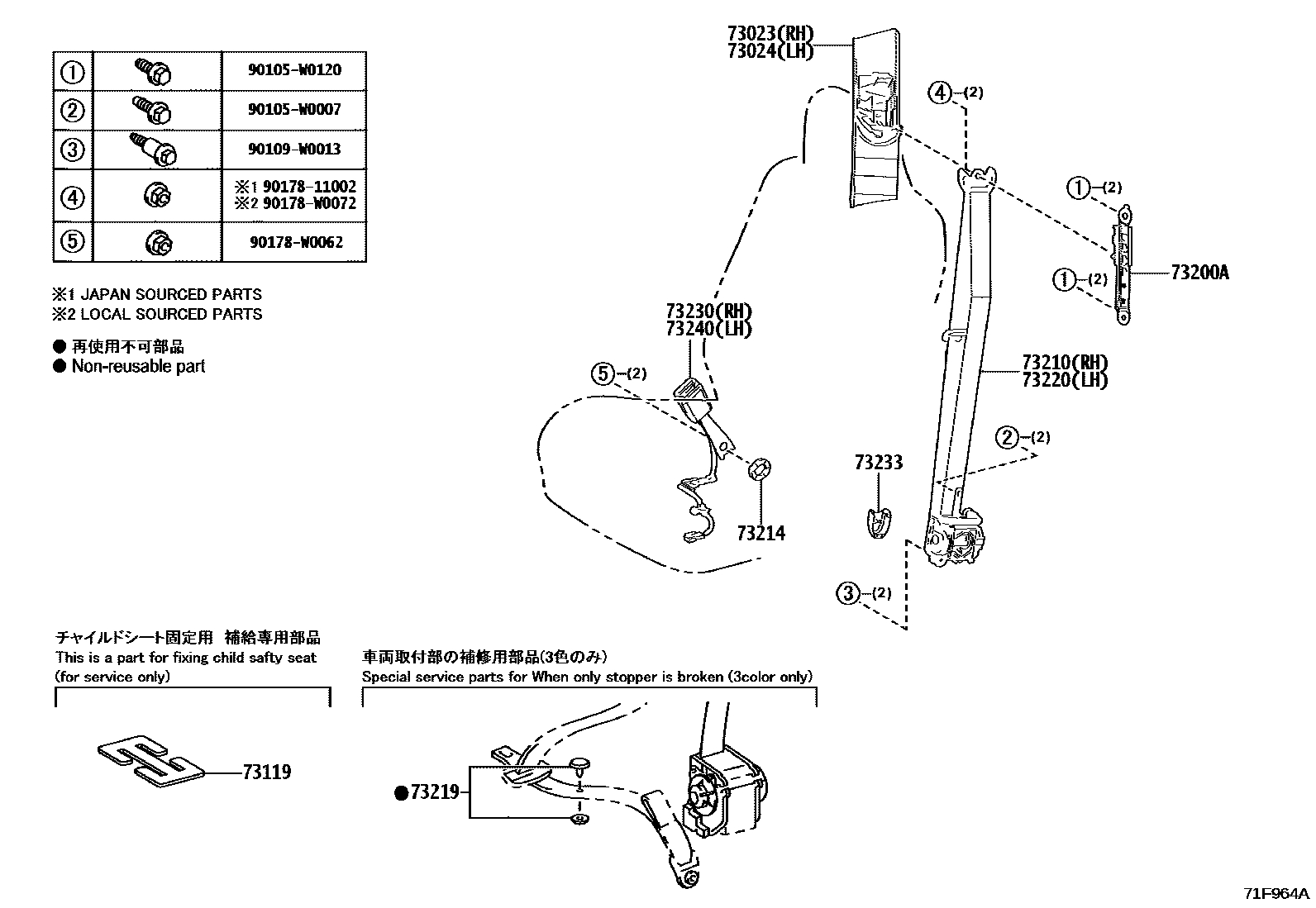

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02060-C2iMAXH2#,ZYX20202310

BLACK,TRIM2#

sub73023-02060

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02060-C2iMAXH2#,ZYX20202310

BLACK,TRIM2#

sub73024-02060

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMAXH2#,ZYX20202310

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-F4010iMAXH2#,ZYX20202310

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-F4012-C2iMAXH2#,ZYX20202310

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iMAXH2#,ZYX20202310

73219STOPPER, TONGUE PLATE

main73219-33010iMAXH2#,ZYX20202310

BLACK

main73219-33020iMAXH2#,ZYX20202310

GRAY

main73219-33030iMAXH2#,ZYX20202310

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-F4012-C2iMAXH2#,ZYX20202310

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-F4190-C0iZYX20..N..ARL;MAXH21..RHD..(E,K);MAXH20,25,ZYX20..RHD..EUR202310

BLACK,TRIM2#

main73230-F4200-C0iZYX20..LHD..N202310

BLACK,TRIM2#

main73230-F4210-C0iMAXH2#,ZYX20..LHD..(E,G,K)202310

BLACK,TRIM2#

main73230-F4220-C0iMAXH21..RHD..G;MAXH20,25,ZYX20..(E,G)..ARL202310

BLACK,TRIM2#

main73230-F4220-C0iMAXH21..RHD..G;MAXH20,25,ZYX20..(E,G)..ARL202310

FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02060-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-F4190-C0iMAXH21..LHD..(E,K);MAXH20,25,ZYX20..LHD202310

BLACK,TRIM2#

main73230-F4200-C0iZYX20..RHD..N202310

BLACK,TRIM2#

main73230-F4210-C0iMAXH2#,ZYX20..RHD..(E,G,K)202310

BLACK,TRIM2#

main73230-F4220-C0iMAXH21..LHD..G202401

BLACK,TRIM2#

90105W0007

main90105-W0007

90105W0120

main90105-W0120

90109W0013

main90109-W0013

9017811002

main90178-11002

90178W0062

main90178-W0062

90178W0072

main90178-W0072

17 parts on this diagram · 2 diagrams in section
