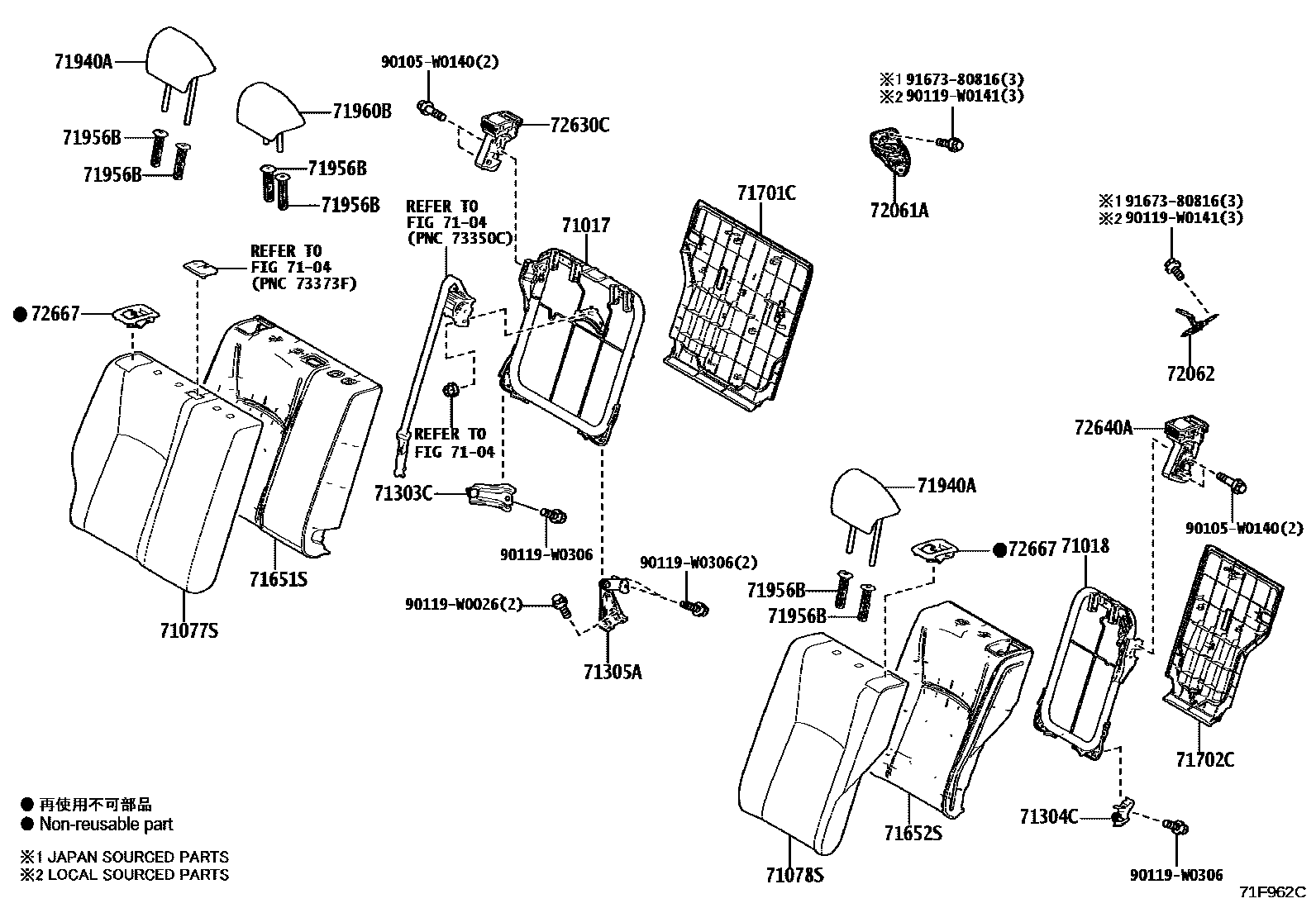

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
DARK ANTHRACITE,TRIM2#
PLATINUM,TRIM2#
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM2#
BLACK/DK.GRAY/COPPER,TRIM2#
DARK ANTHRACITE,TRIM2#
PLATINUM,TRIM2#
HYPER BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
DARK GREY,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE,PLATINUM,TRIM2#
PLATINUM,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,PLATINUM,T
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,PLATINUM,TRIM2#
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM20
BLACK/DK.GRAY,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71940AHEADREST ASSY, REAR SEAT
DARK GREY,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/PLATINUM,TRIM20
BLACK/PLATINUM,TRIM20
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE,BLACK/PLATINUM,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/PLAT
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-LEATHER&FRONTSEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/PLATINUM,TRIM20
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/BLAC
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/BLACK,TRIM20
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-LEATHER&FRONTSEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/BLACK,TRIM20
BLACK/BLACK,TRIM20
BLACK/SULPHUR,TRIM21
BLACK,TRIM2#
HYPER BLACK,TRIM20
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE,BLACK,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK,TRIM
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-LEATHER&FRONTSEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK,TRIM2#
BLACK,TRIM2#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM2#
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM2#
90105W0140
main90105-W0140
90119W0026
main90119-W0026
90119W0141
main90119-W0141
90119W0306
main90119-W0306
9167380816
main91673-80816
25 parts on this diagram · 2 diagrams in section
