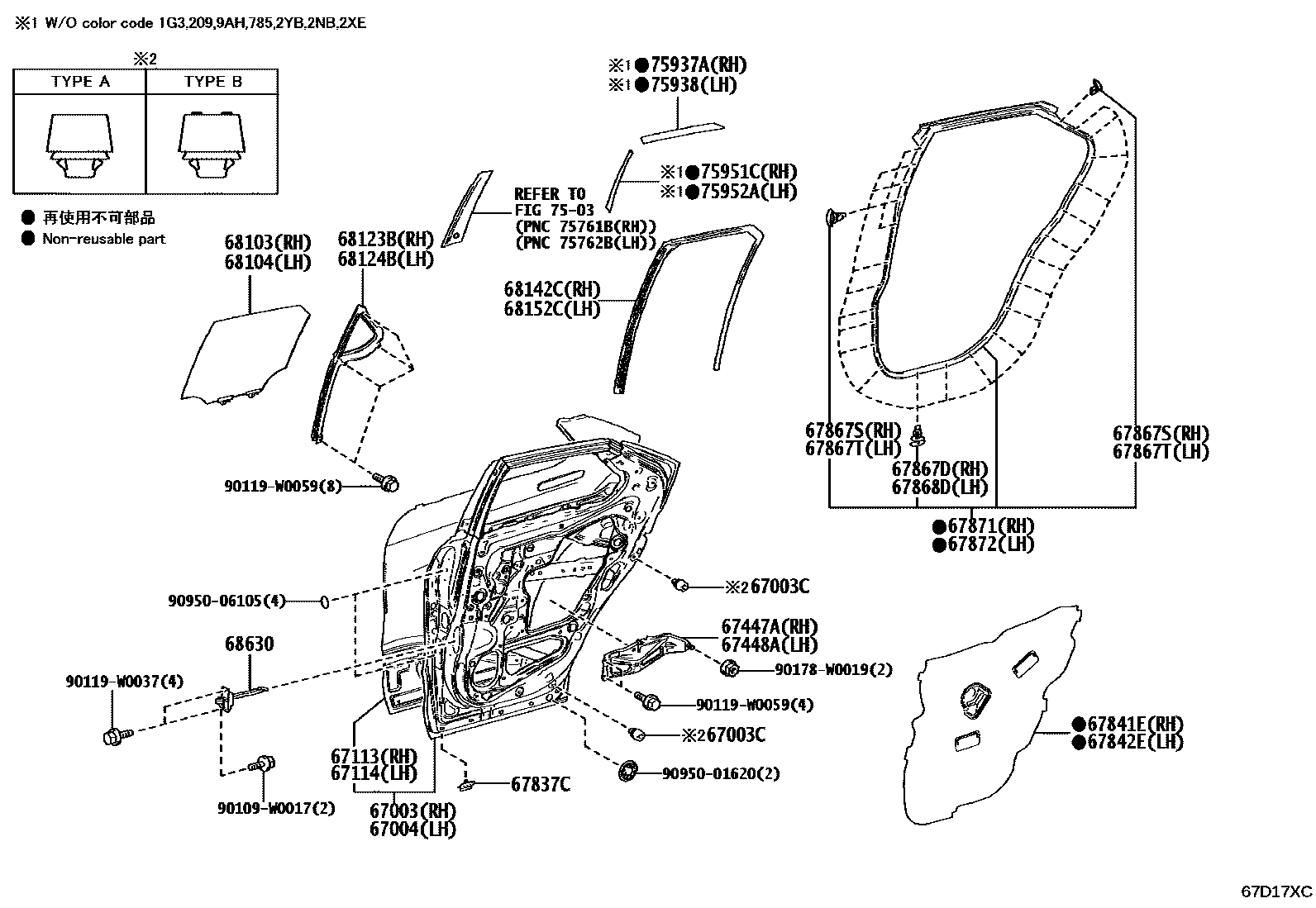

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
SMART ENTRY-WITH
67003CCUSHION, REAR DOOR PANEL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67004PANEL SUB-ASSY, REAR DOOR, LH
SMART ENTRY-WITH
67113PANEL, REAR DOOR, OUTER RH
SMART ENTRY-WITH
67114PANEL, REAR DOOR, OUTER LH
SMART ENTRY-WITH
67447APLATE, REAR DOOR INSIDE PANEL, RH
67448APLATE, REAR DOOR INSIDE PANEL, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867SRETAINER, REAR DOOR WEATHERSTRIP, NO.2, RH
67867TRETAINER, REAR DOOR WEATHERSTRIP, NO.2, LH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR SIDE GLASS-GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR SIDE GLASS-GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630CHECK ASSY, REAR DOOR
7503
75937ATAPE, BLACK OUT, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75938TAPE, BLACK OUT, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75951CTAPE, BLACK OUT, INNER FRONT RH
0 OR 1PIECE,REF.ILL.
75952ATAPE, BLACK OUT, INNER FRONT LH
0 OR 1PIECE,REF.ILL.
90109W0017
main90109-W0017
90119W0037
main90119-W0037
90119W0059
main90119-W0059
90178W0019
main90178-W0019
9095001620
main90950-01620
9095006105
main90950-06105
34 parts on this diagram · 2 diagrams in section
