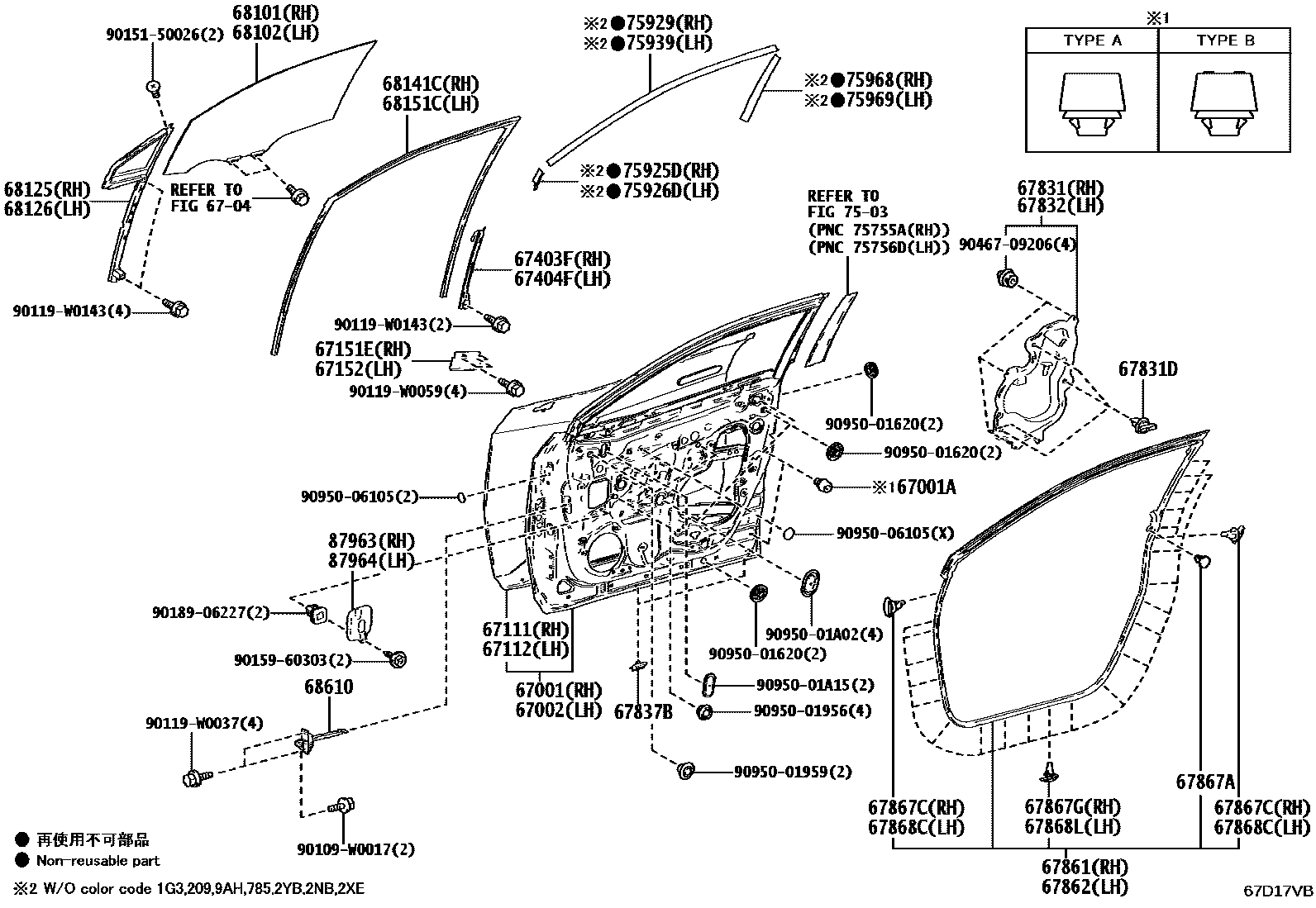

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-F4060iMAXH2#,ZYX20202310

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMAXH2#,ZYX20202310

TYPE A:REFER ILLUST.

main90541-09143iMAXH2#,ZYX20202310

TYPE B:REFER ILLUST.

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-F4060iMAXH2#,ZYX20202310

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-F4050iMAXH2#,ZYX20202310

67112PANEL, FRONT DOOR, OUTER LH

main67112-F4050iMAXH2#,ZYX20202310

67151EREINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, RH

main67053-F4040iMAXH2#,ZYX20202310

67152REINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, LH

main67054-F4040iMAXH2#,ZYX20202310

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-F4050iMAXH2#,ZYX20202310

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-F4050iMAXH2#,ZYX20202310

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-F4050iMAXH2#,ZYX20202310

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4010iMAXH2#,ZYX20202310

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-F4050iMAXH2#,ZYX20202310

67837BSEAL, FRONT DOOR DUST PROOF

main67837-F4020iMAXH2#,ZYX20202310

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-F4060iMAXH2#,ZYX20202310

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-F4060iMAXH2#,ZYX20202310

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-26050iMAXH2#,ZYX20202310

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-30080iMAXH2#,ZYX20202310

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iMAXH2#,ZYX20202310

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-30080iMAXH2#,ZYX20202310

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iMAXH2#,ZYX20202310

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-F4050iMAXH20,25,ZYX20..K,N202310

main68101-F4070iMAXH21;MAXH20,25,ZYX20..E,G202310

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-F4050iMAXH20,25,ZYX20..K,N202310

main68102-F4070iMAXH21;MAXH20,25,ZYX20..E,G202310

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68013-F4010iMAXH2#,ZYX20202310

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68014-F4010iMAXH2#,ZYX20202310

68141CRUN, FRONT DOOR GLASS, RH

main68141-F4050iMAXH2#,ZYX20202310

68151CRUN, FRONT DOOR GLASS, LH

main68151-F4050iMAXH2#,ZYX20202310

68610CHECK ASSY, FRONT DOOR

main68610-F4070iMAXH2#,ZYX20202310

7503

75925DTAPE, BLACK OUT, INNER FRONT RH

main75975-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

75926DTAPE, BLACK OUT, INNER FRONT LH

main75976-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75985-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75986-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75965-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75966-F4050iMAXH2#,ZYX20202310

0 OR 1PIECE,REF.ILL.

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-F4010iMAXH2#,ZYX20202310

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-F4010iMAXH2#,ZYX20202310

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0059

main90119-W0059

90119W0143

main90119-W0143

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9046709206

main90467-09206

9095001620

main90950-01620

9095001956

main90950-01956

9095001959

main90950-01959

9095001A02

main90950-01A02

9095001A15

main90950-01A15

9095006105

main90950-06105

51 parts on this diagram · 2 diagrams in section
