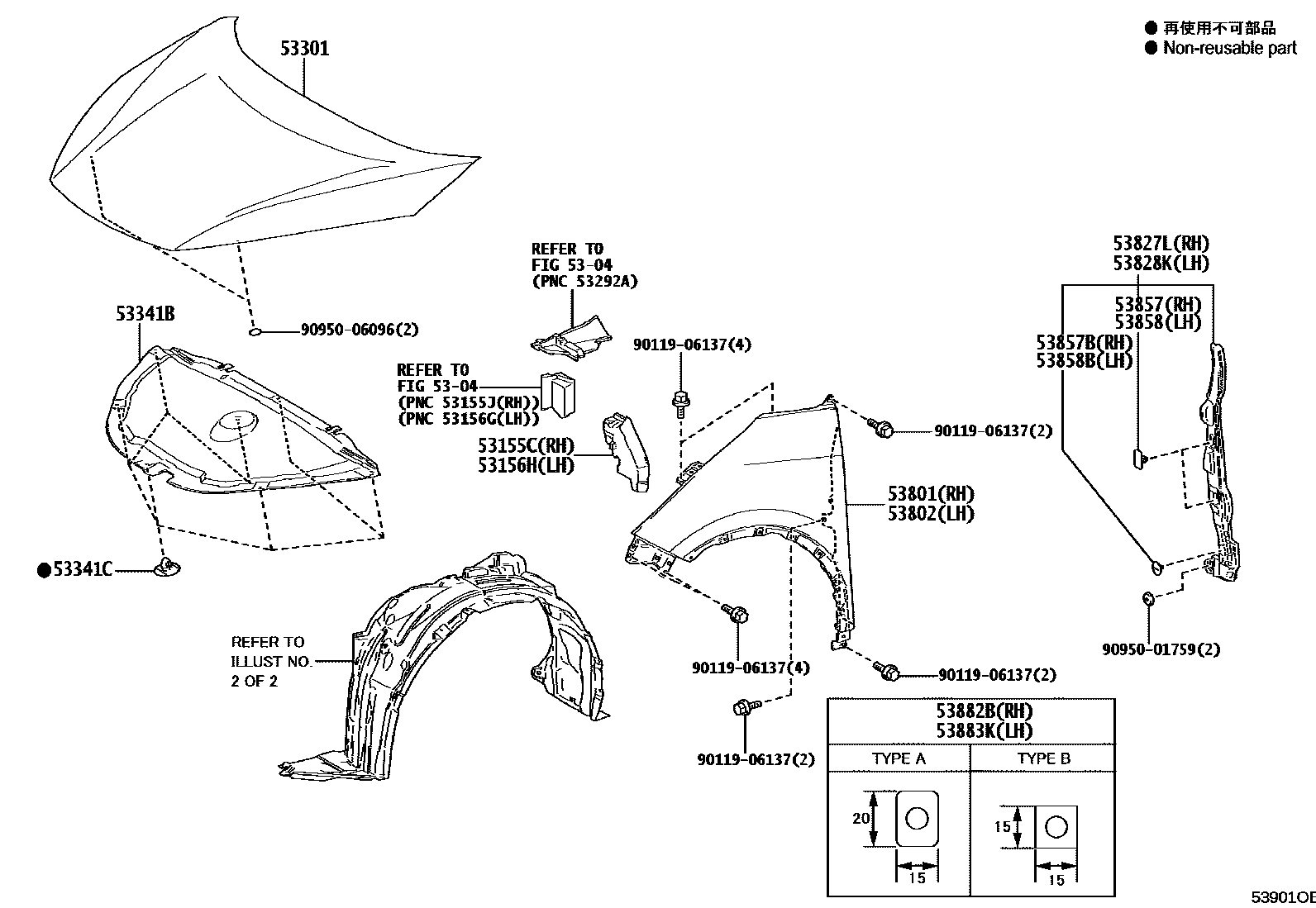

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

5304

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-F4070iMAXH2#,ZYX20202310

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-F4070iMAXH2#,ZYX20202310

53301HOOD SUB-ASSY

main53301-F4060iMAXH2#,ZYX20202310

53341BINSULATOR, HOOD

main53341-F4050iMAXH2#,ZYX20202310

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMAXH2#,ZYX20202310

(J)

main90467-W0003iMAXH2#,ZYX20202310

(L)

53801FENDER SUB-ASSY, FRONT RH

main53811-F4050iMAXH2#,ZYX20202310

53802FENDER SUB-ASSY, FRONT LH

main53812-F4050iMAXH2#,ZYX20202310

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-F4060iZYX20..N202310

main53827-F4070iMAXH2#,ZYX20..E,G,K202310

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-F4060iZYX20..N202310

main53828-F4070iMAXH2#,ZYX20..E,G,K202310

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMAXH2#,ZYX20202310

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iMAXH2#,ZYX20202310

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMAXH2#,ZYX20202310

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMAXH2#,ZYX20202310

53882BSEAL, FRONT FENDER, RH

main53882-16030iMAXH2#,ZYX20202310

TYPE A:REFER ILLUST.

main53882-33060iMAXH2#,ZYX20202310

TYPE B:REFER ILLUST.

53883KSEAL, FRONT FENDER, LH

main53882-16030iMAXH2#,ZYX20202310

TYPE A:REFER ILLUST.

main53882-33060iMAXH2#,ZYX20202310

TYPE B:REFER ILLUST.

9011906137

main90119-06137

9095001759

main90950-01759

9095006096

main90950-06096

19 parts on this diagram · 2 diagrams in section
