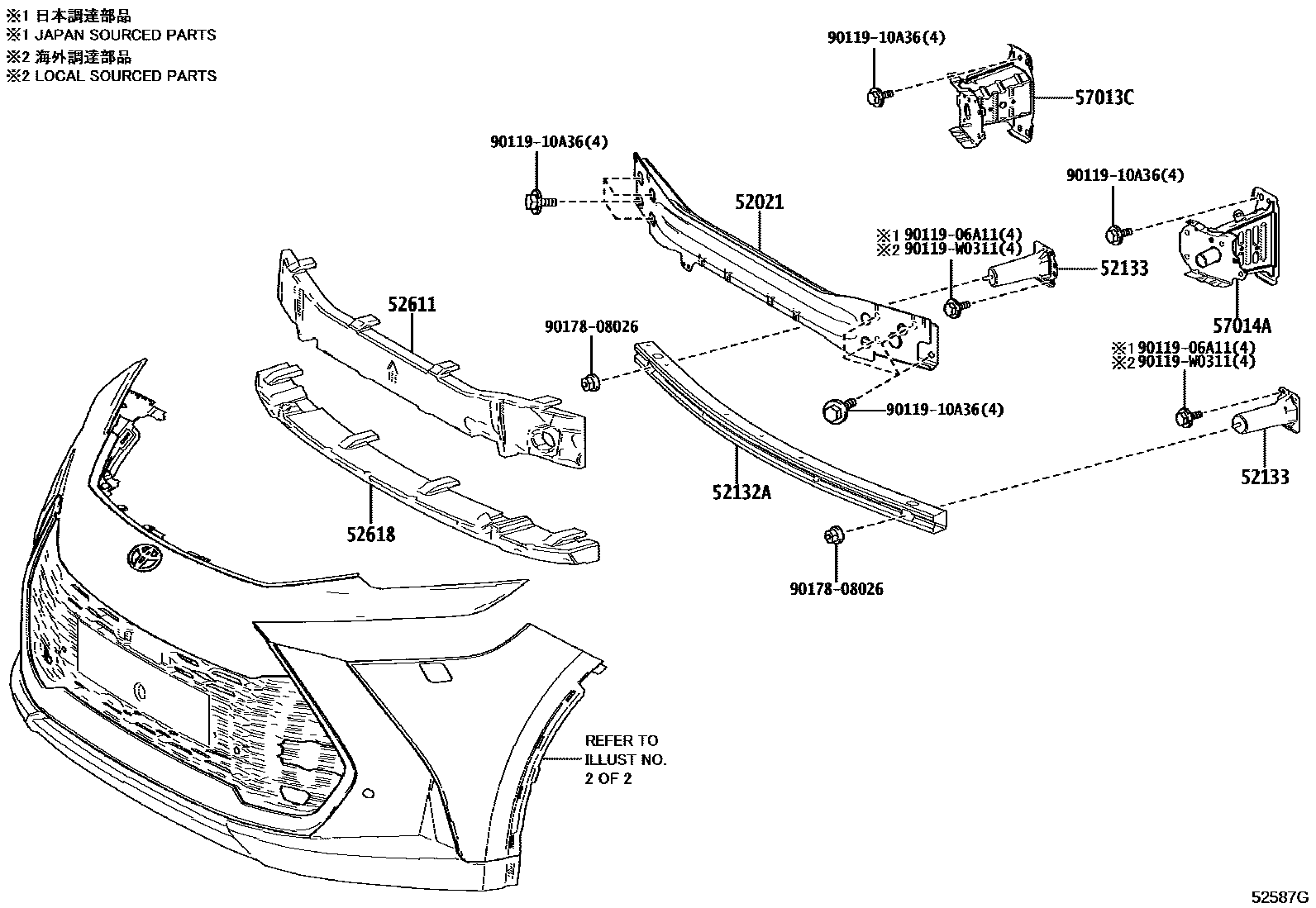

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-F4030iMAXH2#,ZYX20202310

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02140iMAXH2#,ZYX20202310

52133REINFORCEMENT, FRONT BUMPER

main52133-02110iMAXH2#,ZYX20202310

52611ABSORBER, FRONT BUMPER ENERGY

main52611-F4110iMAXH2#,ZYX20202310

52618ABSORBER, FRONT BUMPER, LOWER

main52618-F4110iMAXH2#,ZYX20202310

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02190iMAXH2#,ZYX20202310

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02190iMAXH2#,ZYX20202310

9011906A11

main90119-06A11

9011910A36

main90119-10A36

90119W0311

main90119-W0311

9017808026

main90178-08026

11 parts on this diagram · 4 diagrams in section
