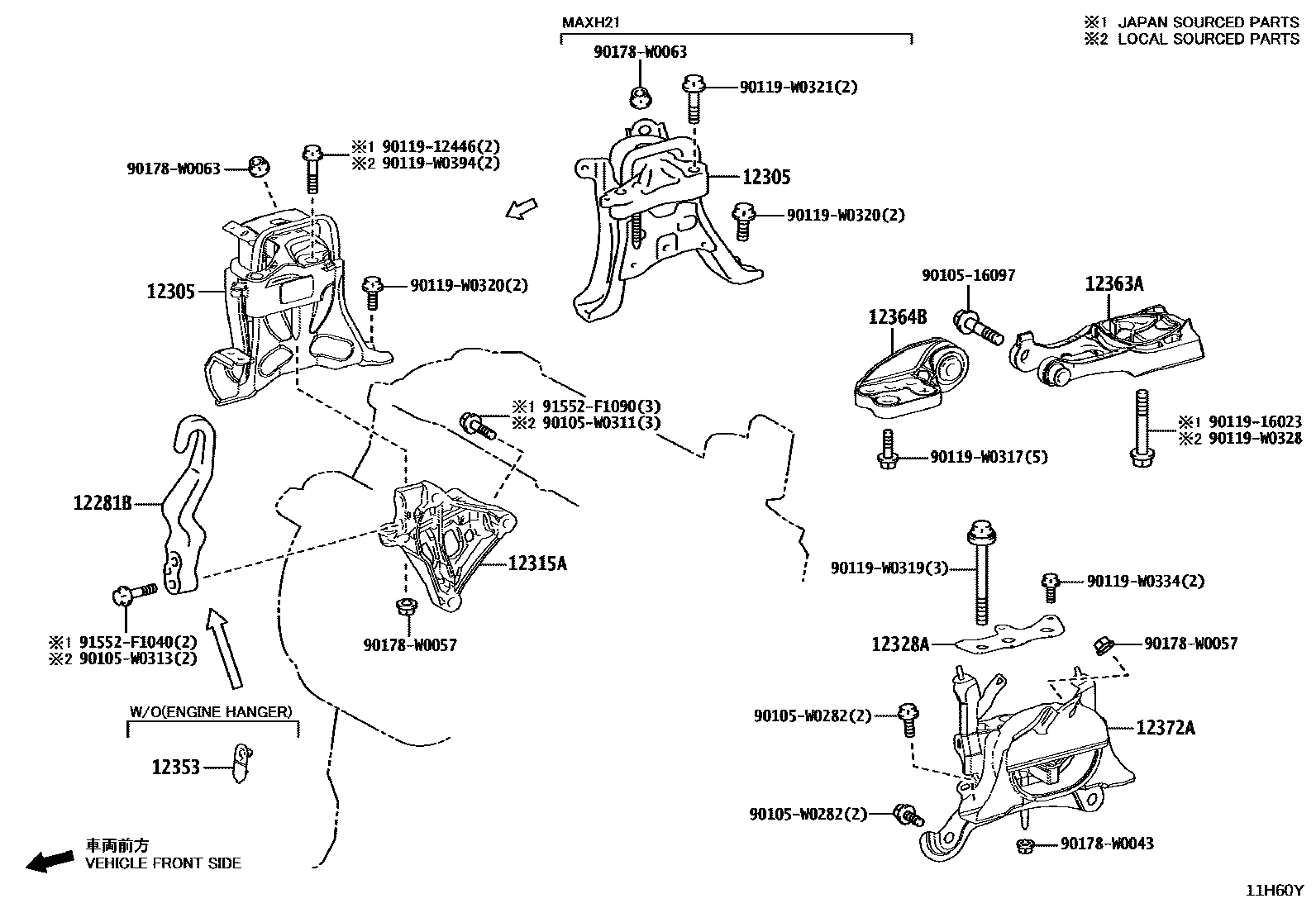

MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20..MAXH2#202310

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T420i2ZR..ZYX20202310

main12305-F2130iM20..MAXH20,25202310

main12305-F2140iM20..MAXH21202401

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37070i2ZR..ZYX20202310

main12315-F2041iM20..MAXH2#202310

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-0T050i2ZR..ZYX20202310

main12328-F2070iM20..MAXH2#202310

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM20..MAXH2#202310

12363AROD, ENGINE MOVING CONTROL

main12363-0T060i2ZR..ZYX20202310

main12363-F2080iM20..MAXH2#202310

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-F2090i2ZR..ZYX20202310

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T680i2ZR..ZYX20202310

main12372-F2040iM20..MAXH2#202310

9010516097

main90105-16097

90105W0282

main90105-W0282

90105W0311

main90105-W0311

90105W0313

main90105-W0313

9011912446

main90119-12446

9011916023

main90119-16023

90119W0317

main90119-W0317

90119W0319

main90119-W0319

90119W0320

main90119-W0320

90119W0321

main90119-W0321

90119W0328

main90119-W0328

90119W0334

main90119-W0334

90119W0394

main90119-W0394

90178W0043

main90178-W0043

90178W0057

main90178-W0057

90178W0063

main90178-W0063

91552F1040

main91552-F1040

91552F1090

main91552-F1090

26 parts on this diagram · 2 diagrams in section
