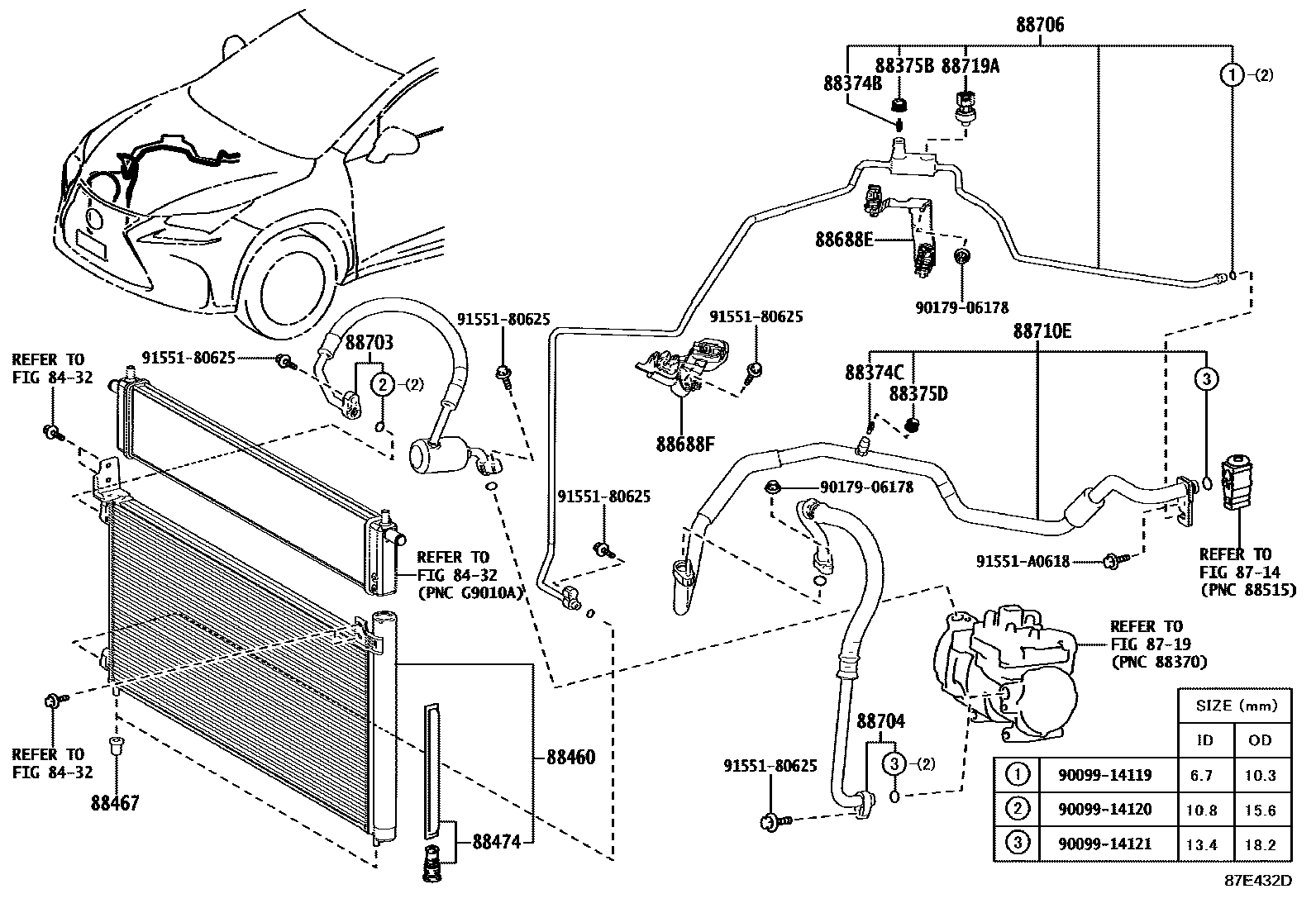

HEATING & AIR CONDITIONING - COOLER PIPING
8432
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88467CUSHION, COOLER CONDENSER, NO.1
88474DRYER, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
88703HOSE SUB-ASSY, DISCHARGE
88706PIPE SUB-ASSY, LIQUID
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
BRUNEI SPEC,TYPE A:REFER ILLUST.
INDONESIA SPEC,TYPE A:REFER ILLUST.
MALAYSIA SPEC,TYPE A:REFER ILLUST.
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
MALAYSIA SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
BRUNEI SPEC,TYPE A:REFER ILLUST.
INDONESIA SPEC,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
88719ASENSOR, AIR CONDITIONER PRESSURE
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9017906178
main90179-06178
9155180625
main91551-80625
91551A0618
main91551-A0618
23 parts on this diagram · 5 diagrams in section
