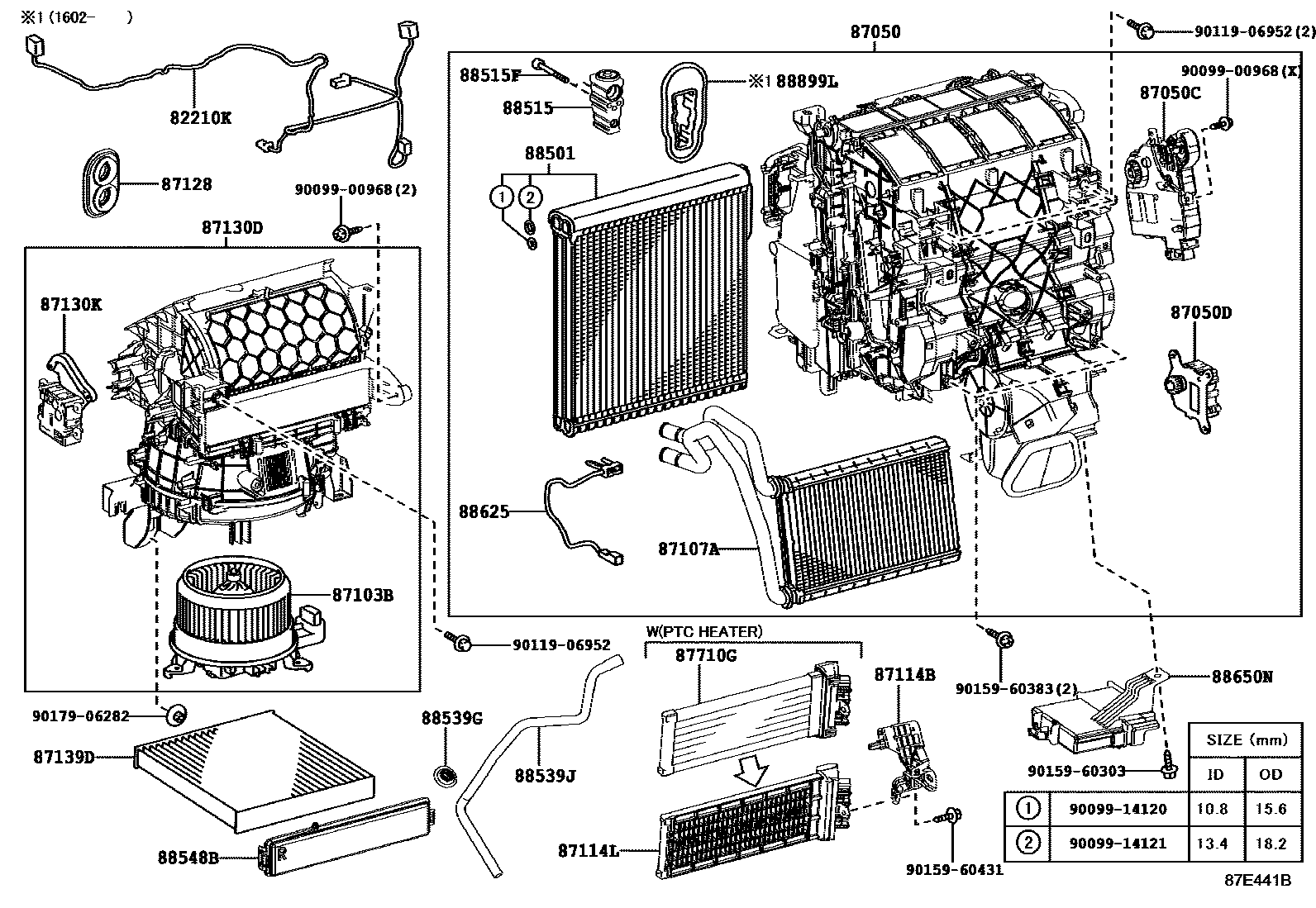

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48030iAGZ1#,AYZ1#..ARL201407-201709

main82212-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

sub82212-78030

main82212-78020iAGZ1#,AYZ1#..ARL201709

main82212-78030iAGZ1#..CHI201709-202004

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48390iAYZ1#..ARL201407-201501

sub87050-48391

main87050-78031iAGZ15,ZGZ1#..CHI201412-201709

main87050-78032iAGZ1#,ZGZ1#..CHI201709-202109

main87050-78040iAYZ1#..LHD201407-202109

main87050-78061iAGZ1#..ARL201412-201709

main87050-78062iAGZ1#..ARL201709-202109

main87050-78080iAGZ15..ARL201412-202109

MALAYSIA SPEC

main87050-78080iAGZ15..ARL201412-202109

BRUNEI SPEC

main87050-78080iAGZ15..ARL201412-202109

INDONESIA SPEC

main87050-78080iAGZ10..ARL201905-202109

HONG KONG SPEC

main87050-78100iAGZ15..GEN201412-202109

main87050-78111iAGZ1#..GCC201412-202109

main87050-78120iAYZ1#..ARL201501-202109

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iAGZ1#,AYZ1#,ZGZ1#201407-202004

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48180iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201407-202004

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48160iAGZ1#,AYZ1#..ARL201407-201709

main87103-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

sub87103-78030

main87103-78020iAGZ1#,AYZ1#..ARL201709

main87103-78030iAGZ1#..CHI201709-202004

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48110iAGZ1#,AYZ1#..ARL201407-201709

main87107-78010iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201407-202004

87114BCOVER, HEATER

main87114-48120iAGZ1#,AYZ1#..ARL201407-201709

87114LCOVER, HEATER, NO.2

main87114-48110iAYZ15..GCC,GEN201412-202004

87128GROMMET, HEATER

main87128-76010iAGZ1#..CHI201407-202004

87130DBLOWER ASSY

main87130-48310iAGZ1#,AYZ1#..ARL201407-201709

main87130-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

sub87130-78030

main87130-78020iAGZ1#,AYZ1#..ARL201709

main87130-78030iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201709-202004

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240iAGZ1#,AYZ1#,ZGZ1#..LHD201407-202004

main87106-48190iAGZ1#,AYZ1#..ARL201407-201709

87139DELEMENT, AIR REFINER

main87139-50100iAGZ1#,AYZ1#,ZGZ1#201407-202109

87710GQUICK HEATER ASSY

main87710-48020iAYZ15..GCC,GEN201412-202004

PTC HEATER-WITH

main87710-48020iAYZ1#,ZGZ1#201407-201905

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48340iAYZ1#201407-202109

main88501-78030iAGZ1#,ZGZ1#..ARL,CHI201412-201709

sub88501-78060

main88501-78050iAGZ15..ARL201412-202109

BRUNEI SPEC

main88501-78050iAGZ1#..GCC,GEN201412-202109

INDONESIA SPEC

main88501-78050iAGZ1#..GCC,GEN201412-202109

MALAYSIA SPEC

main88501-78050iAGZ10..ARL201905-202109

HONG KONG SPEC

main88501-78060iAGZ1#,ZGZ1#..ARL,CHI201709-202109

88515VALVE, COOLER EXPANSION

main88515-48110iAGZ15..ARL201412-201709

BRUNEI SPEC

main88515-48110iAGZ15..ARL201412-201805

INDONESIA SPEC

main88515-48110iAGZ15..ARL201412-201709

MALAYSIA SPEC

main88515-48110iAYZ1#;AGZ15..GEN201407-201709

main88515-48110iAGZ10..ARL201905

HONG KONG SPEC

main88515-48120iZGZ1#;AGZ1#..ARL,GCC201412-202004

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAGZ1#..CHI201407-202004

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iAGZ1#,AYZ1#,ZGZ1#201407-202004

88539JHOSE, DRAIN COOLER

main88539-78010iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201407-202004

main88539-78020iAGZ1#,AYZ1#..ARL201407-201709

88548BCASE, AIR FILTER

main88548-42010iAGZ1#,AYZ1#..ARL201407-201709

main88548-42020iAGZ1#,AYZ1#,ZGZ1#..LHD201407-202004

88625THERMISTOR, COOLER, NO.1

main88620-28050iAGZ15..ARL201412-201709

BRUNEI SPEC

main88620-28050iAGZ15..ARL201412-201805

INDONESIA SPEC

main88620-28050iAGZ15..ARL201412-201709

MALAYSIA SPEC

main88620-28050iAYZ1#;AGZ1#..GCC,GEN201407-201709

main88620-28050iAGZ10..ARL201905

HONG KONG SPEC

main88620-28060iZGZ1#;AGZ1#..ARL201412-202004

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-78010iAGZ1#,ZGZ1#201412-201509

sub88650-78130

main88650-78020iAYZ1#201407-201509

sub88650-78140

main88650-78130iAGZ1#,ZGZ1#201509-201709

main88650-78140iAYZ1#201509-201709

main88650-78200iZGZ1#;AGZ1#..ARL,GCC,GEN201709-202004

main88650-78240iAYZ1#201709

88899LPARTS, COOLING UNIT

main88899-78020iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201602-202004

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282
