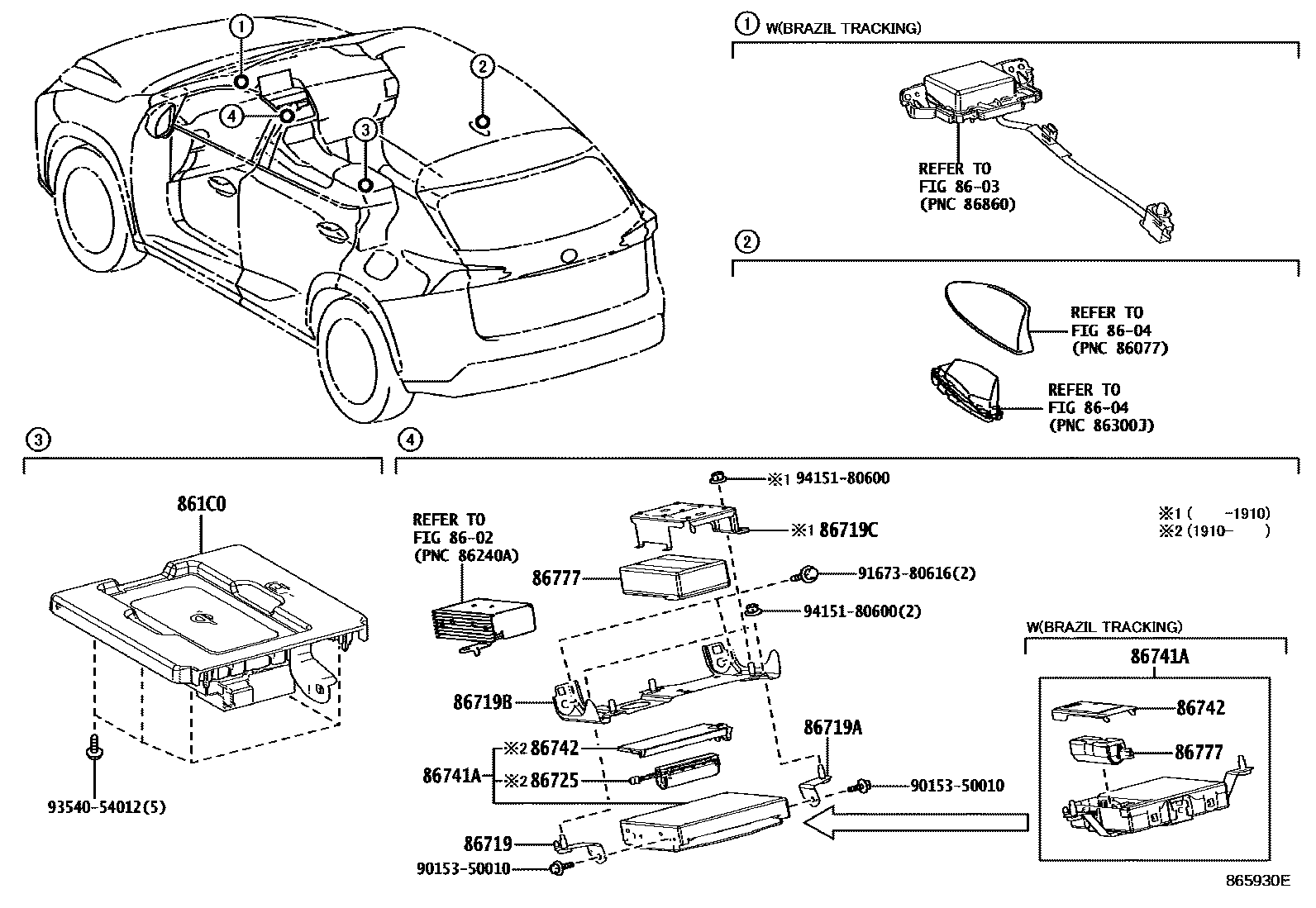

TELEPHONE & MAYDAY
8602
8603
8604
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
WIRELESS CHARGER-WITH
86719BRACKET, TELEPHONE
MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATIONMODULE-WITH
STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
86719ABRACKET, TELEPHONE NO.1
MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATIONMODULE-WITH
STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
86719BBRACKET, TELEPHONE NO.2
AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&MAYDAY SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH
ACTIVE SOUND CONTROL-WITH
AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&AUDIO-EMVN & 10SPEAKER
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&AUDIO-EMVN & 14SPEAKER
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
ACTIVE SOUND CONTROL-WITH
ACTIVE SOUND CONTROL-WITH&STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATIONMODULE-WITH
STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
86719CBRACKET, TELEPHONE NO.3
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&MAYDAY SYSTEM-WITH
MAYDAY SYSTEM-WITH
AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&MAYDAY SYSTEM-WITH
ACTIVE SOUND CONTROL-WITH&STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATIONMODULE-WITH
STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&DATA COMMUNICATION MODULE-WITH
86725BATTERY, MOBILEPHONE
86741ATRANSCEIVER, TELEMATICS
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
MAYDAY SYSTEM-WITH
86742COVER, TRANSCEIVER
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
86777BATTERY, MAYDAY
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)
ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&ACTIVE SOUND CONTROL-WITH
NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
ACTIVE SOUND CONTROL-WITH&MAYDAY SYSTEM-WITH
MAYDAY SYSTEM-WITH
9015350010
main90153-50010
9167380616
main91673-80616
9354054012
main93540-54012
9415180600
main94151-80600
16 parts on this diagram · 1 diagram in section
