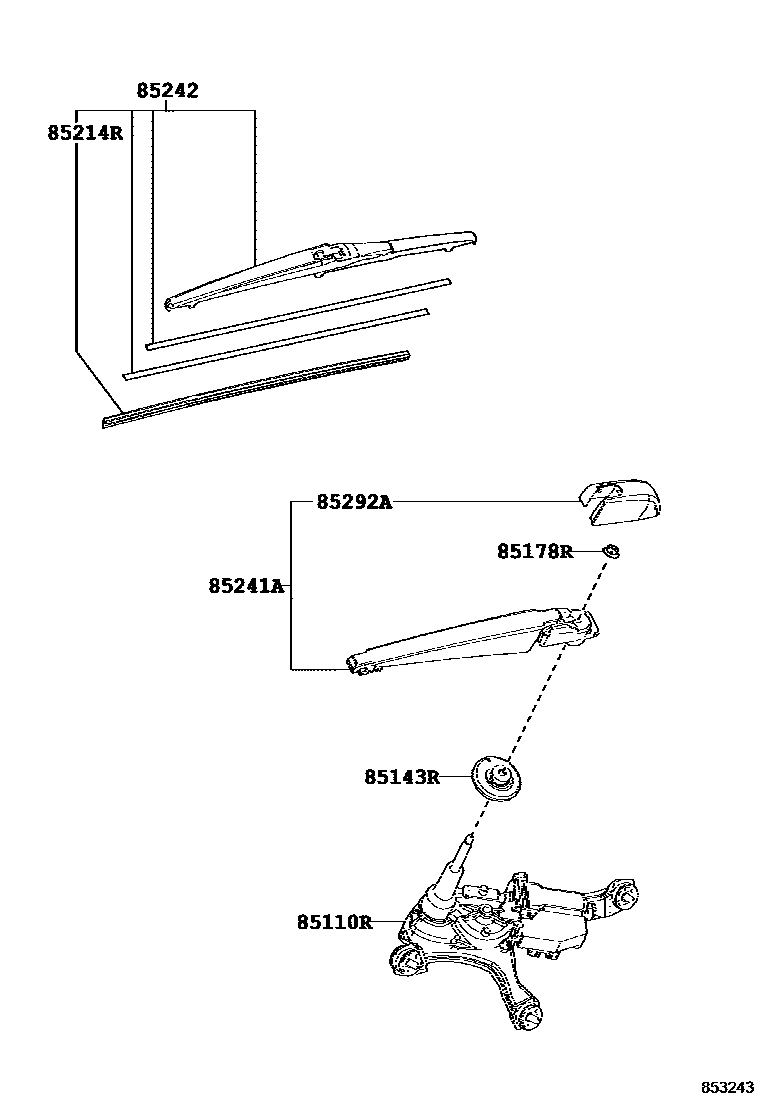

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-78010iAGZ1#,AYZ1#,ZGZ1#201407-202004

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iAGZ1#,AYZ1#,ZGZ1#201407-202004

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAGZ1#,AYZ1#,ZGZ1#201407-202004

85214RRUBBER, REAR WIPER

main85214-42040iAGZ1#,AYZ1#,ZGZ1#201407-202004

85241AARM, REAR WIPER

main85241-42060iAYZ1#201407-201411

main85241-78040iAGZ1#,AYZ1#,ZGZ1#201411-202004

85242BLADE, RR WIPER

main85242-72010iAGZ1#,AYZ1#,ZGZ1#201411-202109

main85242-78010iAYZ1#201407-201411

sub85242-72010

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201407-202004

7 parts on this diagram · 1 diagram in section
