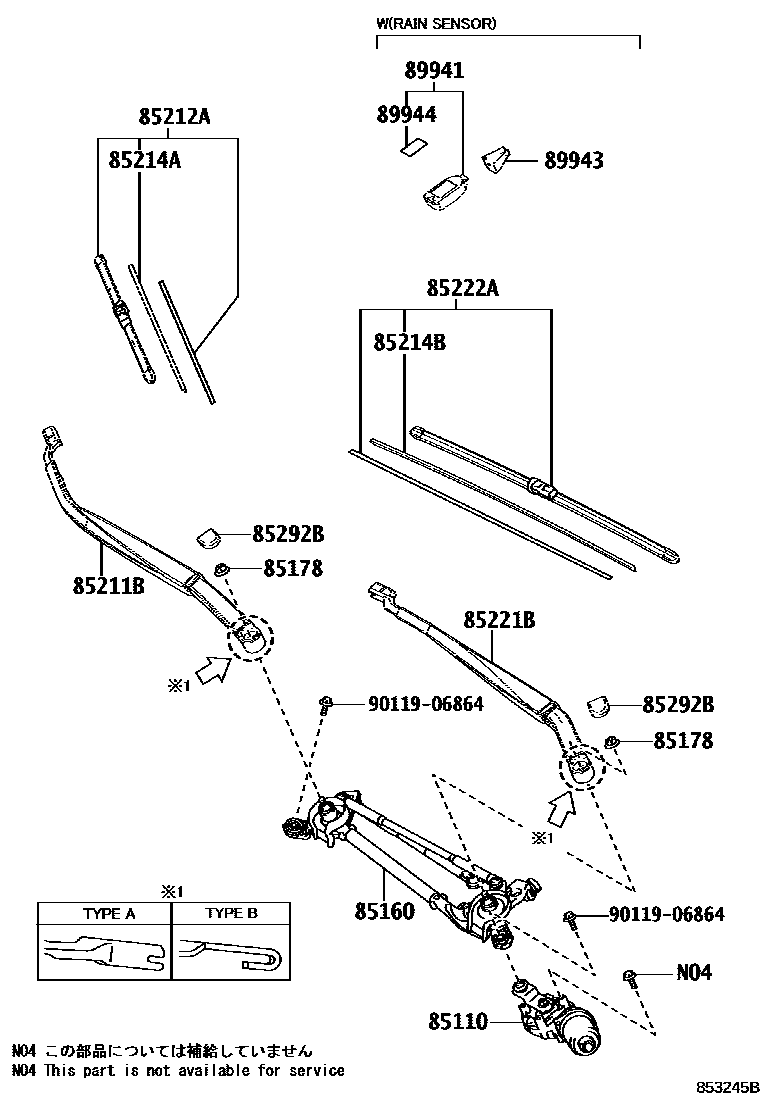

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85212ABLADE, FR WIPER, RH
PNC 85211B=TYPE B
PNC 85211B=TYPE A
85214ARUBBER, WIPER, RH
PNC 85211B=TYPE A
PNC 85211B=TYPE B
85214BRUBBER, WIPER, LH
PNC 85221B=TYPE A
PNC 85221B=TYPE B
85221BARM, FRONT WIPER, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)
INTERMITTENT WIPER-WITH(RAIN SENSOR)
89943COVER, RAIN SENSOR
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)
INTERMITTENT WIPER-WITH(RAIN SENSOR)
89944TAPE, RAIN SENSOR
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)
INTERMITTENT WIPER-WITH(RAIN SENSOR)
9011906864
14 parts on this diagram · 1 diagram in section
