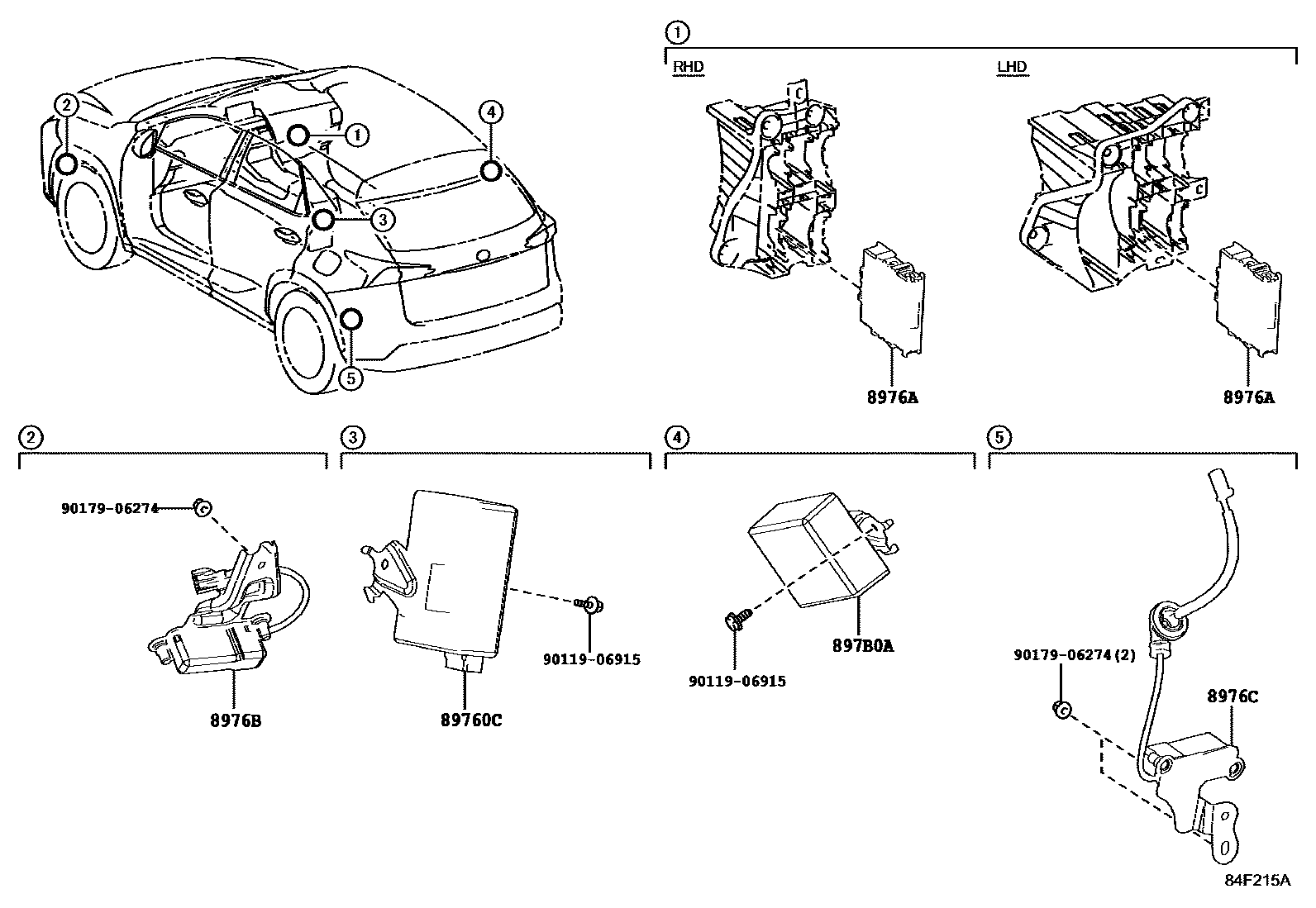

TIRE PRESSURE WARNING SYSTEM

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-78010iAGZ1#,AYZ1#..ARL201407-201709

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-30030

main8976A-33030

main8976A-33032

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-78010

main8976B-78011

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-78010

main8976C-78011

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-78050iAGZ1#..GCC201412-201709

main897B0-78060iAYZ15..GCC201407-201709

SOUTH AFRICA SPEC

sub897B0-78061

main897B0-78061iAGZ15,AYZ15..ARL201709

LEBANON SPEC

main897B0-78061iAGZ15..GCC201709

SOUTH AFRICA SPEC

main897B0-78061iAGZ15..GCC201709

JORDAN SPEC

main897B0-78061iAGZ15..GCC201709

IRAQ SPEC

main897B0-78070iAGZ15,AYZ15..GEN201407-201709

THAILAND SPEC

main897B0-78150iAGZ15,AYZ1#,ZGZ1#..CHI201410-201905

main897B0-78210iAGZ1#..CHI201905-202004

9011906915

main90119-06915

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
