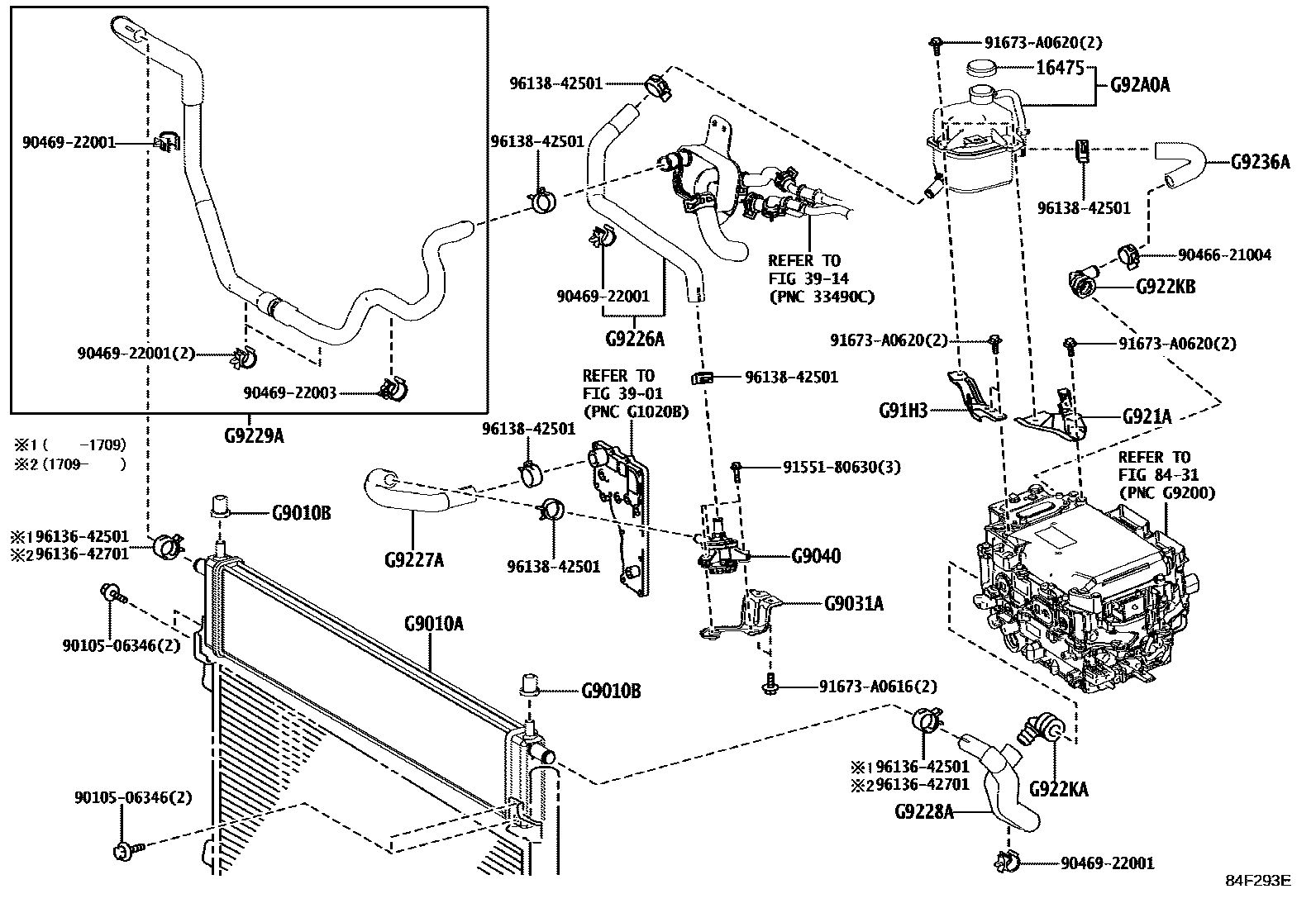

INVERTER COOLING

0001 1 0002 1

16475CAP, RESERVE TANK

main16475-28140i2ARFXE..AYZ1#201605-201709

main16475-37010i2ARFXE..AYZ1#201407-201409

sub16475-28140

main16475-37011i2ARFXE..AYZ1#201410-201604

sub16475-28140

3901

3914

8431

G9010ARADIATOR ASSY

mainG901078010iAYZ1#201407-201709

mainG901078020iAYZ1#201709

G9010BCUSHION, INVERTER RADIATOR

main16716-37010iAYZ1#201407-201709

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914148030iAYZ1#201407-201709

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048010iAYZ1#201407-201709

G91H3BRACKET, INVERTER RESERVE TANK, NO.2

mainG91H348010iAYZ15201407-201709

mainG91H378010iAYZ10201407-201709

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H278010iAYZ10201407-201709

G9226AHOSE, INVERTER COOLING, NO.2

mainG922648060iAYZ1#201407-201709

G9227AHOSE, INVERTER COOLING, NO.3

mainG922748060iAYZ1#201407-201709

G9228AHOSE, INVERTER COOLING, NO.4

mainG922848010iAYZ15201407-201709

mainG922848040iAYZ15201709

mainG922878010iAYZ10201407-201709

mainG922878030iAYZ10201709

G9229AHOSE, INVERTER COOLING, NO.5

mainG922948010iAYZ1#201407-201709

mainG922948020iAYZ1#201709

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K33030iAYZ10201407-201709

mainG922K47011iAYZ15201407-201709

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K33020iAYZ1#201407-201709

G9236AHOSE, INVERTER COOLING, NO.6

mainG923648010iAYZ1#201407-201904

subG9236-78010

mainG923678010iAYZ1#201905

G92A0ATANK ASSY, INVERTER RESERVE

mainG910F48010iAYZ1#201407-201409

subG910F-48011

mainG910F48011iAYZ1#201410-201604

subG910F-48012

mainG910F48012iAYZ1#201605-201904

subG910F-48013

mainG910F48013iAYZ1#201905

9010506346

main90105-06346

9046621004

main90466-21004

9046922001

main90469-22001

9046922003

main90469-22003

9155180630

main91551-80630

91673A0616

main91673-A0616

91673A0620

main91673-A0620

9613642501

main96136-42501

9613642701

main96136-42701

9613842501

main96138-42501

28 parts on this diagram · 2 diagrams in section
