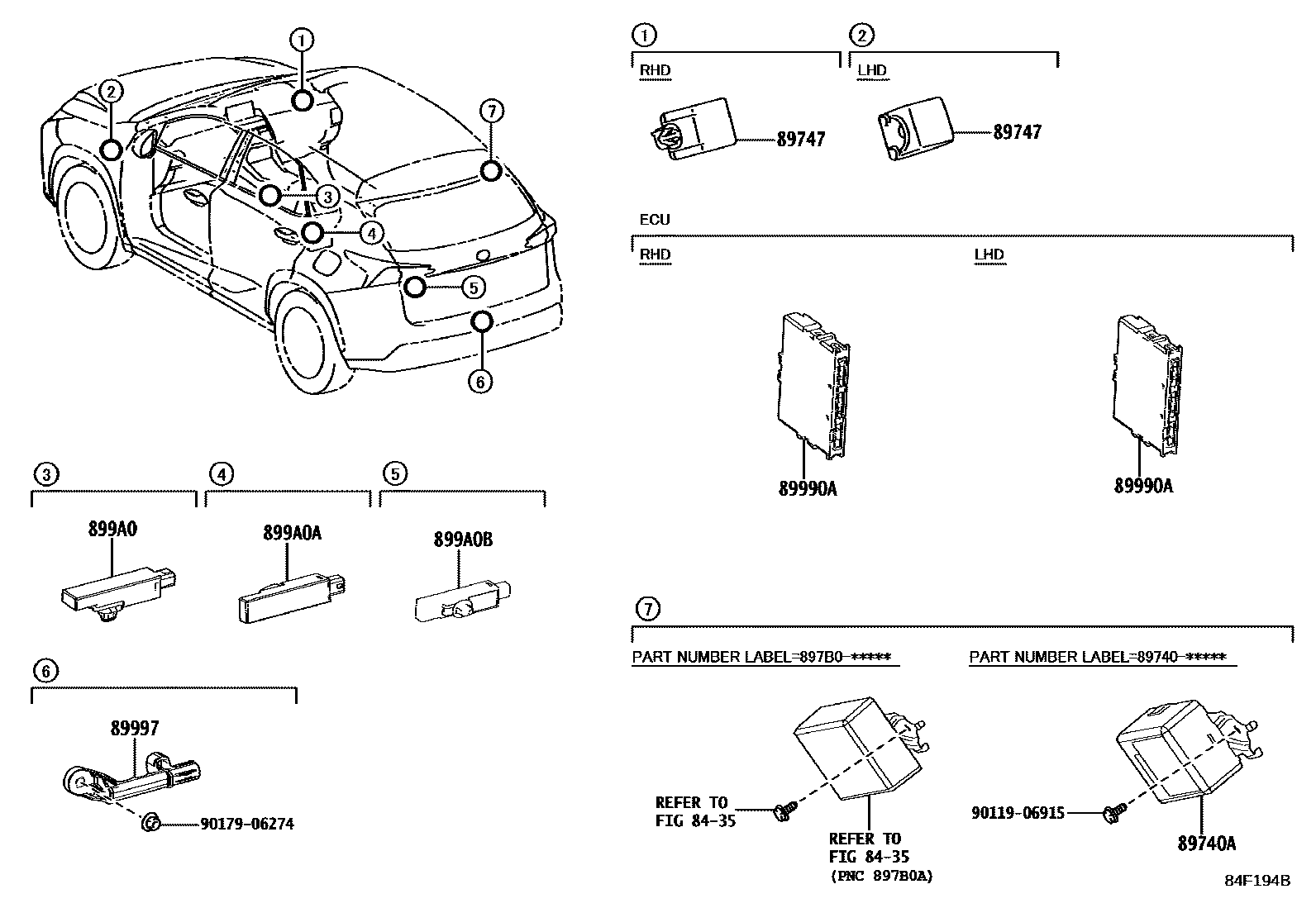

WIRELESS DOOR LOCK
8435
89740ARECEIVER ASSY, SMART DOOR CONTROL
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
sub89990-78041
sub89990-78091
sub89990-78171
sub89990-78172
sub89990-78173
sub89990-78211
sub89990-78251
sub89990-78252
89997ANTENNA, ELECTRICAL KEY
SMART ENTRY-2 BUTTON TYPE
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
9011906915
main90119-06915
9017906274
main90179-06274
10 parts on this diagram · 1 diagram in section
