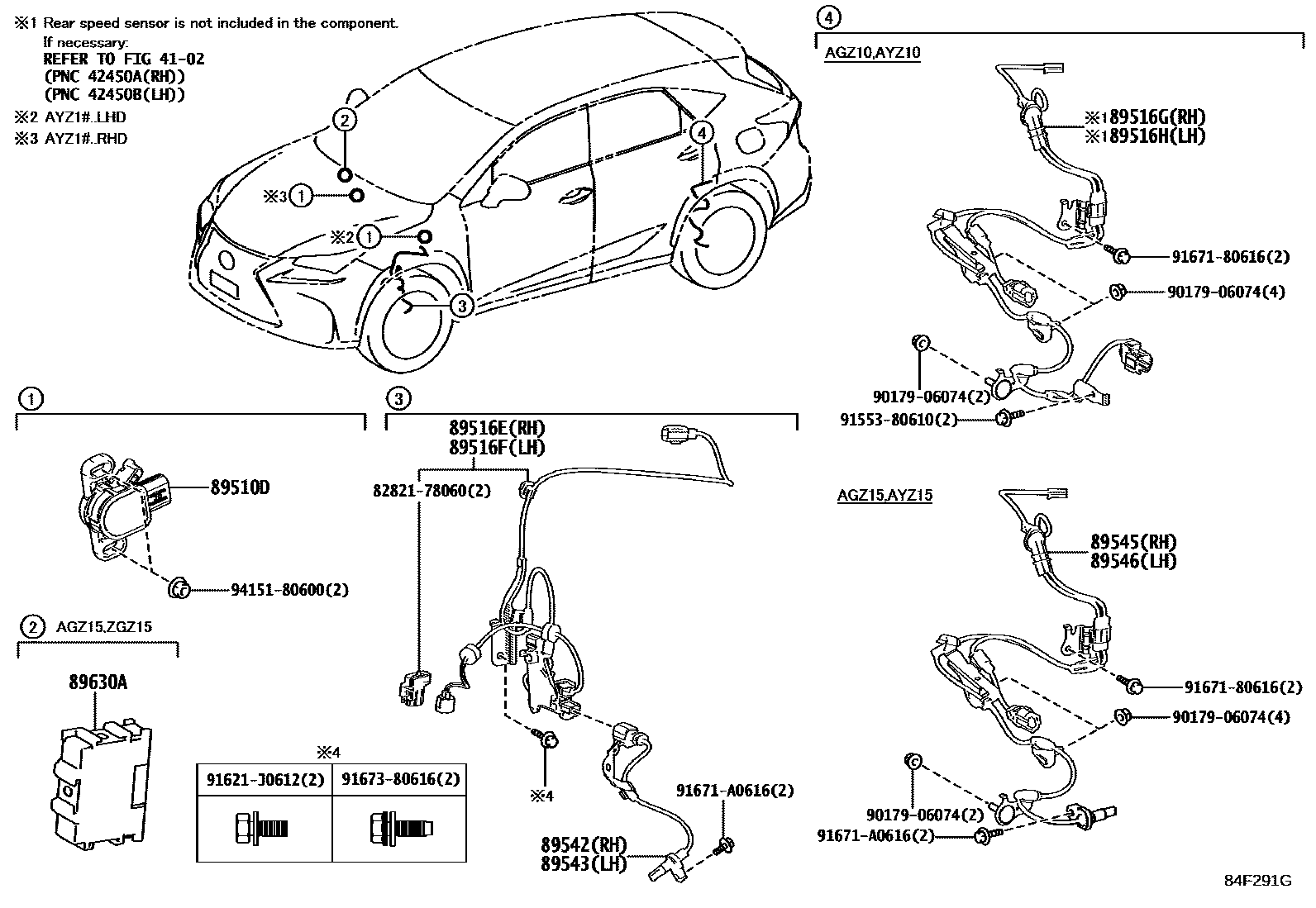

ABS & VSC

0001 1W(AVS) 0002 1W/O(AVS)

4102

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33030iAYZ1#201407-201709

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-78030iAGZ1#,AYZ1#201407-201709

AVS-WITH

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-78040iAGZ1#,AYZ1#201407-201709

AVS-WITH

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-78050iAGZ10,AYZ10,ZGZ10201407-201709

main89516-78010iAGZ10,AYZ10201407-201709

AVS-WITH

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-78060iAYZ10,ZGZ10;AGZ10..ARL,GCC201407-201709

main89516-78020iAGZ10,AYZ10201407-201709

AVS-WITH

89542SENSOR, SPEED, FRONT RH

main89542-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

main89542-78020iAGZ1#..CHI201709-202004

AVS-WITH

89543SENSOR, SPEED, FRONT LH

main89543-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

main89543-78020iAGZ1#,AYZ1#201407-201709

AVS-WITH

89545SENSOR, SPEED, REAR RH

main89545-48070iAYZ15,ZGZ15;AGZ15..ARL,GCC,GEN201407-201709

main89545-78010iAGZ15..CHI201709-202004

AVS-WITH

89546SENSOR, SPEED, REAR LH

main89546-48070iAYZ15,ZGZ15;AGZ15..ARL,GCC,GEN201407-201709

main89546-78010iAGZ15..CHI201709-202004

AVS-WITH

89630ACOMPUTER ASSY, 4WD

main89630-48040iAGZ15,ZGZ15201412-202004

8282178060RETAINER, HEADLAMP HARNESS

main82821-78060

9017906074

main90179-06074

9155380610

main91553-80610

91621J0612

main91621-J0612

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
