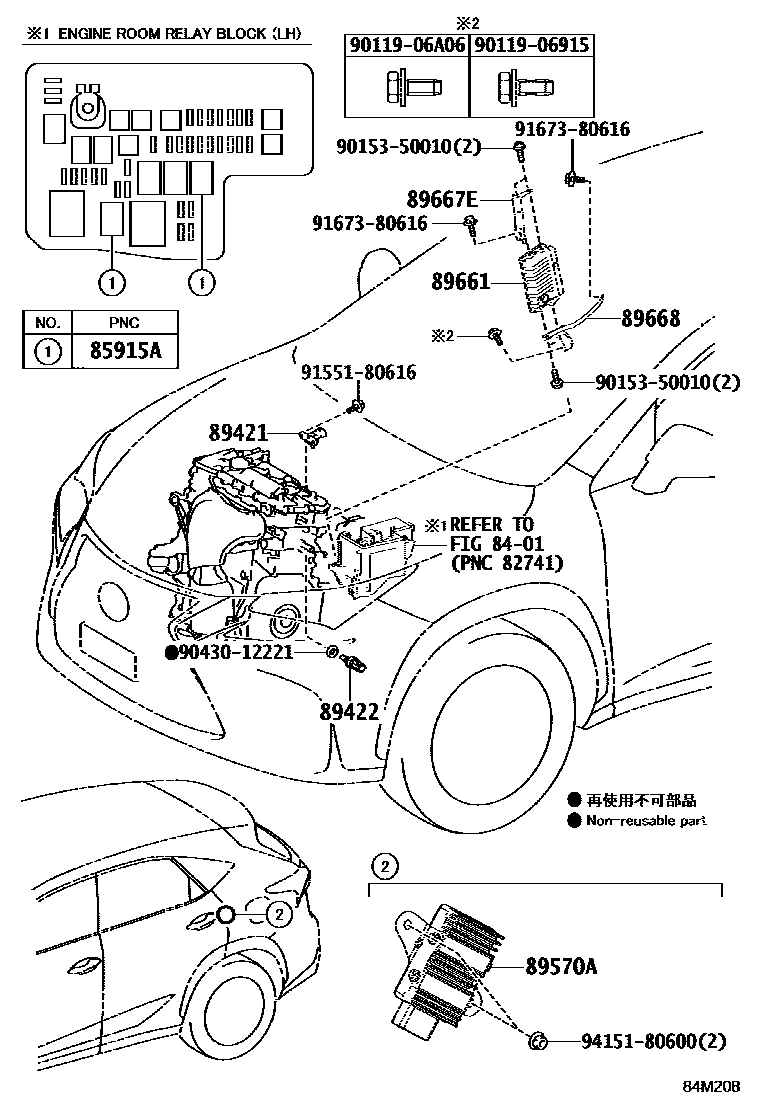

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85915ARELAY, MAIN

main90987-02027iAYZ1#,ZGZ1#201407-202004

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAYZ1#,ZGZ1#201407-201709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGZ1#,AYZ1#,ZGZ1#201407-202004

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-78010iAGZ1#,AYZ1#201407-202004

89661COMPUTER, ENGINE CONTROL

main89661-78010iZGZ10201412-201609

sub89661-78011

main89661-78020iZGZ15201412-201609

sub89661-78021

main89661-78090iAGZ10..ARL201412-201611

sub89661-78091

main89661-78091iAGZ10..ARL201612-201709

main89661-78100iAGZ10..GCC201412-201611

sub89661-78101

main89661-78101iAGZ10..GCC201612-201709

main89661-78110iAGZ15..ARL,CHI201412-201610

sub89661-78111

main89661-78111iAGZ15..ARL,CHI201611-201709

main89661-78120iAGZ15..GCC201412-201611

sub89661-78121

main89661-78121iAGZ15..GCC201612-201709

main89661-78130iAGZ15..GEN201509-201602

sub89661-78131

main89661-78131iAGZ15..GCC201603-201709

INDONESIA SPEC

main89661-78131iAGZ15..GEN201603-201709

BRUNEI SPEC

main89661-78131iAGZ15..GEN201603-201709

MALAYSIA SPEC

main89661-78131iAGZ15..GEN201603-201709

LEBANON SPEC

main89661-78131iAGZ15..GEN201603-201709

JORDAN SPEC

main89661-78240iAYZ1#..ARL201407-201609

main89661-78280iAYZ15..GCC201407-201609

BRUNEI SPEC

main89661-78280iAYZ15..GEN201509-201609

main89661-78300iAYZ15..GEN201407-201509

main89661-78300iAYZ1#..ARL201407-201609

MACAO SPEC

main89661-78300iAYZ1#..ARL201407-201609

SOUTH AFRICA SPEC

main89661-78330iZGZ10201609-201709

main89661-78340iZGZ15201609-201709

main89661-78370iAYZ1#..ARL201609-201709

main89661-78390iAYZ15..ARL201609-201709

BRUNEI SPEC

main89661-78400iAYZ15..ARL201609-201709

SOUTH AFRICA SPEC

main89661-78400iAYZ1#..CHI201609-201709

MACAO SPEC

main89661-78430iZGZ10201709-201810

DENSO

sub89661-78431

main89661-78431iZGZ10201810-201905

DENSO

main89661-78440iZGZ15201709-201810

DENSO

sub89661-78441

main89661-78441iZGZ15201810-201905

DENSO

main89661-78530iAYZ1#..ARL201709-201805

DENSO

main89661-78550iAYZ15..GCC,GEN201709-201805

DENSO,BRUNEI SPEC

main89661-78550iAYZ15..GCC,GEN201709-201805

DENSO

main89661-78560iAYZ15..ARL201709-201805

DENSO,MACAO SPEC

main89661-78560iAYZ10..ARL201709-201805

DENSO,SOUTH AFRICA SPEC

main89661-78560iAYZ1#..CHI201709-201805

DENSO

main89661-78640iAGZ10..ARL201709-201905

DENSO

main89661-78650iAGZ10..GCC201709-201905

DENSO

main89661-78660iAGZ15..ARL201709-201905

DENSO

main89661-78670iAGZ15..GCC201709-201905

DENSO

main89661-78690iAGZ15..GEN201709-201905

DENSO,JORDAN SPEC

main89661-78690iAGZ15..GEN201709-201905

DENSO,IRAQ SPEC

main89661-78690iAGZ15..GEN201709-201905

DENSO,IRAN SPEC

main89661-78690iAGZ15..ARL201709-201905

DENSO

main89661-78690iAGZ15..ARL201709-201905

DENSO,BRUNEI SPEC

main89661-78690iAGZ15..ARL201709-201905

DENSO,MALAYSIA SPEC

main89661-78790iAYZ1#..ARL201805-202007

DENSO

main89661-78810iAYZ15..GCC,GEN201805-202109

DENSO

main89661-78810iAYZ15..ARL201805-202109

DENSO,BRUNEI SPEC

main89661-78820iAYZ1#..CHI201805-201810

DENSO

main89661-78870iAYZ1#..CHI202004-202109

DENSO

main89661-78A00iAGZ10..CHI201810-201905

DENSO

main89661-78A10iAGZ15..CHI201810-201905

DENSO

main89661-78A20iAYZ1#..CHI201810-202004

DENSO

main89661-78A30iZGZ10202004-202109

DENSO

main89661-78A40iZGZ15202004-202109

DENSO

main89661-78A50iZGZ10201905-202004

DENSO

main89661-78A60iZGZ15201905-202004

DENSO

main89661-78B40iAGZ10..ARL201905-202007

DENSO

main89661-78B50iAGZ10..GCC201905-202007

DENSO

main89661-78B60iAGZ15..ARL201905-202007

DENSO

main89661-78B70iAGZ15..GCC201905-202007

DENSO

main89661-78B90iAGZ15..ARL201905-202109

DENSO,MALAYSIA SPEC

main89661-78B90iAGZ15..ARL201905-202109

DENSO,JORDAN SPEC

main89661-78B90iAGZ15..ARL201905-202109

DENSO,IRAQ SPEC

main89661-78B90iAGZ15..ARL201905-202109

DENSO,EGYPT SPEC

main89661-78B90iAGZ15..ARL201905-202109

DENSO

main89661-78B90iAGZ15..ARL201905-202109

DENSO,BRUNEI SPEC

main89661-78C00iAGZ10..CHI201905-202004

DENSO

sub89661-78C01

main89661-78C10iAGZ15..CHI201905-202004

DENSO

sub89661-78C11

main89661-78F50iAGZ10..ARL202007-202109

DENSO

main89661-78F60iAGZ10..GCC202007-202109

DENSO

main89661-78F70iAGZ15..ARL202007-202109

DENSO

main89661-78F80iAGZ15..GCC202007-202109

DENSO

main89661-78G30iAYZ1#..ARL202007-202109

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAYZ1#,ZGZ1#201407-202109

main89667-78010iAGZ1#201412-202109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48180iZGZ1#;AYZ1#..ARL201407-202109

main89668-78010iAGZ1#201412-202109

main89668-78020iAYZ1#..LHD201407-202109

9011906915

main90119-06915

9011906A06

main90119-06A06

9015350010

main90153-50010

9043012221

main90430-12221

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
