BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1

28800BATTERY

main28800-36110i8ARFTS..AGZ1#..ARL201412-201709

S-95

sub28800-36111

main28800-36110i8ARFTS..AGZ1#..ARL201412-201709

S-95,WITHOUT(STOP & START SYSTEM)

sub28800-36111

main28800-36130i2ARFXE..AYZ1#201407-201507

LN2

sub28800-36131

main28800-36131i2ARFXE..AYZ1#201507-201709

LN2

sub28800-36132

main28800-38080i8ARFTS..AGZ15..ARL201412-201709

80D26L,MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)

sub28800-38081

main28800-38080i8ARFTS..AGZ15..ARL201412-201709

80D26L

sub28800-38081

main28800-38080i8ARFTS..AGZ15..ARL201412-201709

80D26L,INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)

sub28800-38081

main28800-38080i8ARFTS..AGZ15..ARL201412-201709

80D26L,BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i2ARFXE..AYZ1#201407-201709

main90982-05062i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#201412-202004

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i8ARFTS..AGZ1#..CHI201412-202004

main82821-78010i2ARFXE..AYZ1#201407-201709

28800QCOVER, CONNECTOR(FOR BATTERY)

main82817-78220i2ARFXE..AYZ1#201407-201709

28885BHOSE, BATTERY

main28885-36060i2ARFXE..AYZ1#201407-201709

28897PLATE, BATTERY CAUTION

main28897-36030i2ARFXE,8ARFTS..AGZ1#,AYZ15..GCC201609-201709

main28897-38060i8ARFTS..AGZ1#..CHI201701-202004

main28897-50030i2ARFXE,8ARFTS,3ZRFAE..AGZ15,AYZ1#,ZGZ1#..CHI201410-201612

sub28897-38060

28898PLATE, BATTERY

main28898-36010i2ARFXE..AYZ1#201407-201709

28899INSULATOR, BATTERY

main28899-36050i2ARFXE..AYZ1#201407-201709

main28899-36060i3ZRFAE..ZGZ1#;8ARFTS..AGZ1#..ARL,GCC,GEN201412-202004

8202

8401

9415180801

main94151-80801

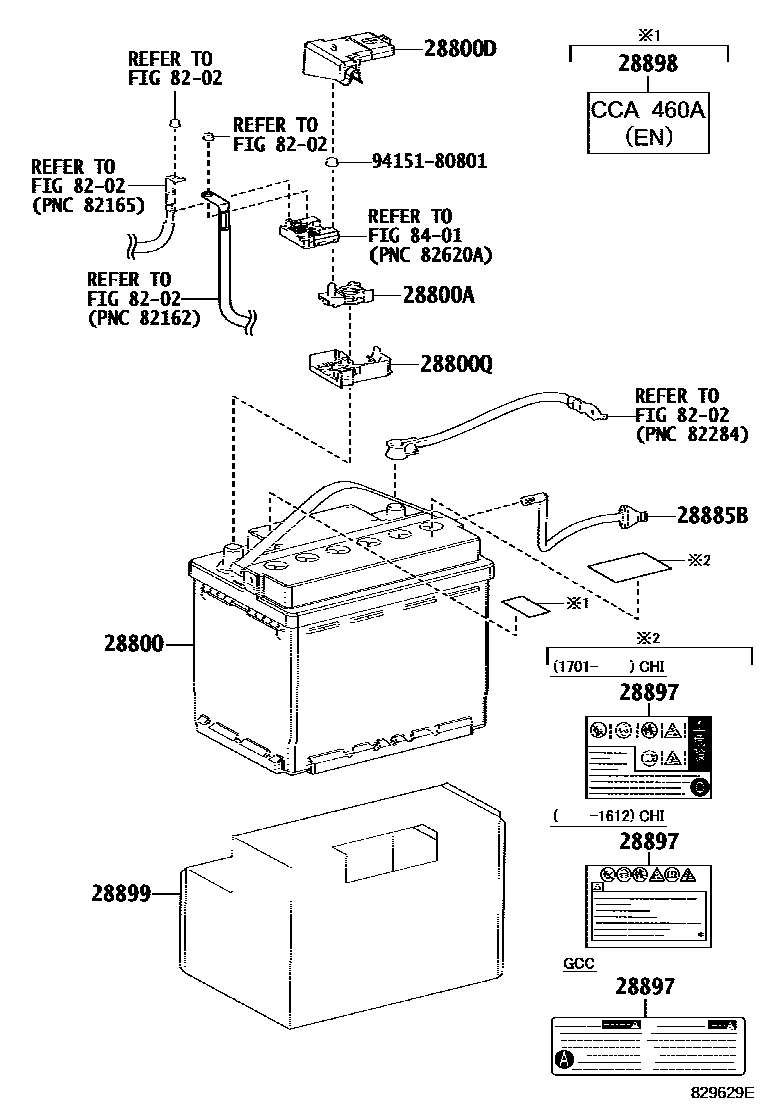

11 parts on this diagram · 5 diagrams in section
