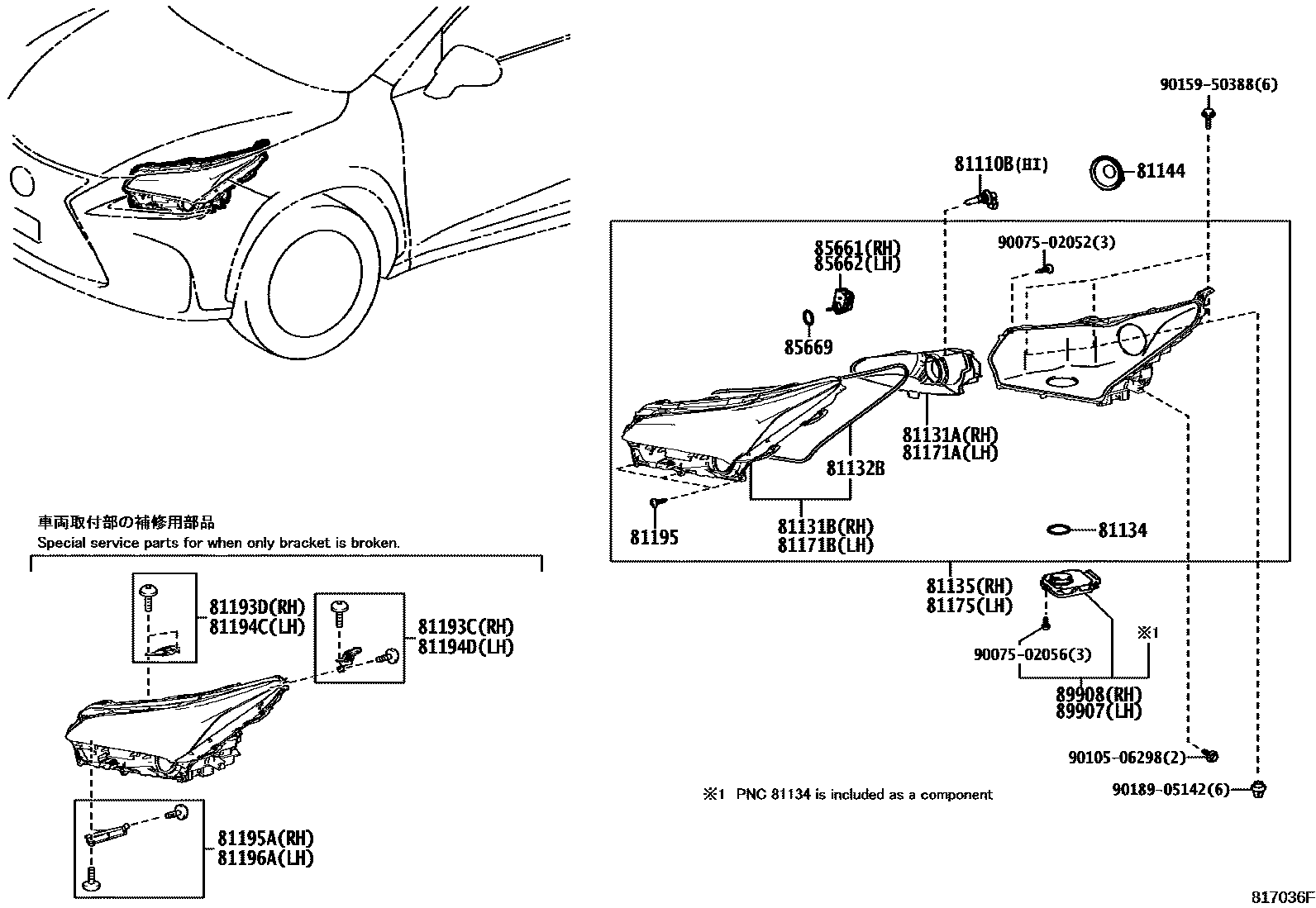

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81131AUNIT, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
81144COVER, HEADLAMP, NO.1
81171AUNIT, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81175UNIT ASSY, HEADLAMP, LH
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195SCREW, HEADLAMP
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
89907COMPUTER SUB-ASSY, HEADLAMP, LH
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
sub89907-78061
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
sub89907-78081
VERSION L&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
F SPORT&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANEDEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(*LDA & STEERING VIBRATION)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING VIBRATION)
89908COMPUTER SUB-ASSY, HEADLAMP, RH
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
sub89908-78061
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
sub89908-78081
VERSION L&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
F SPORT&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANEDEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING WHEEL ASSIST)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(*LDA & STEERING VIBRATION)
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&HEADLAMP CLEANER-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(STEERING VIBRATION)
9007502052
main90075-02052
9007502056
main90075-02056
9010506298
main90105-06298
9015950388
main90159-50388
9018905142
main90189-05142
27 parts on this diagram · 4 diagrams in section
