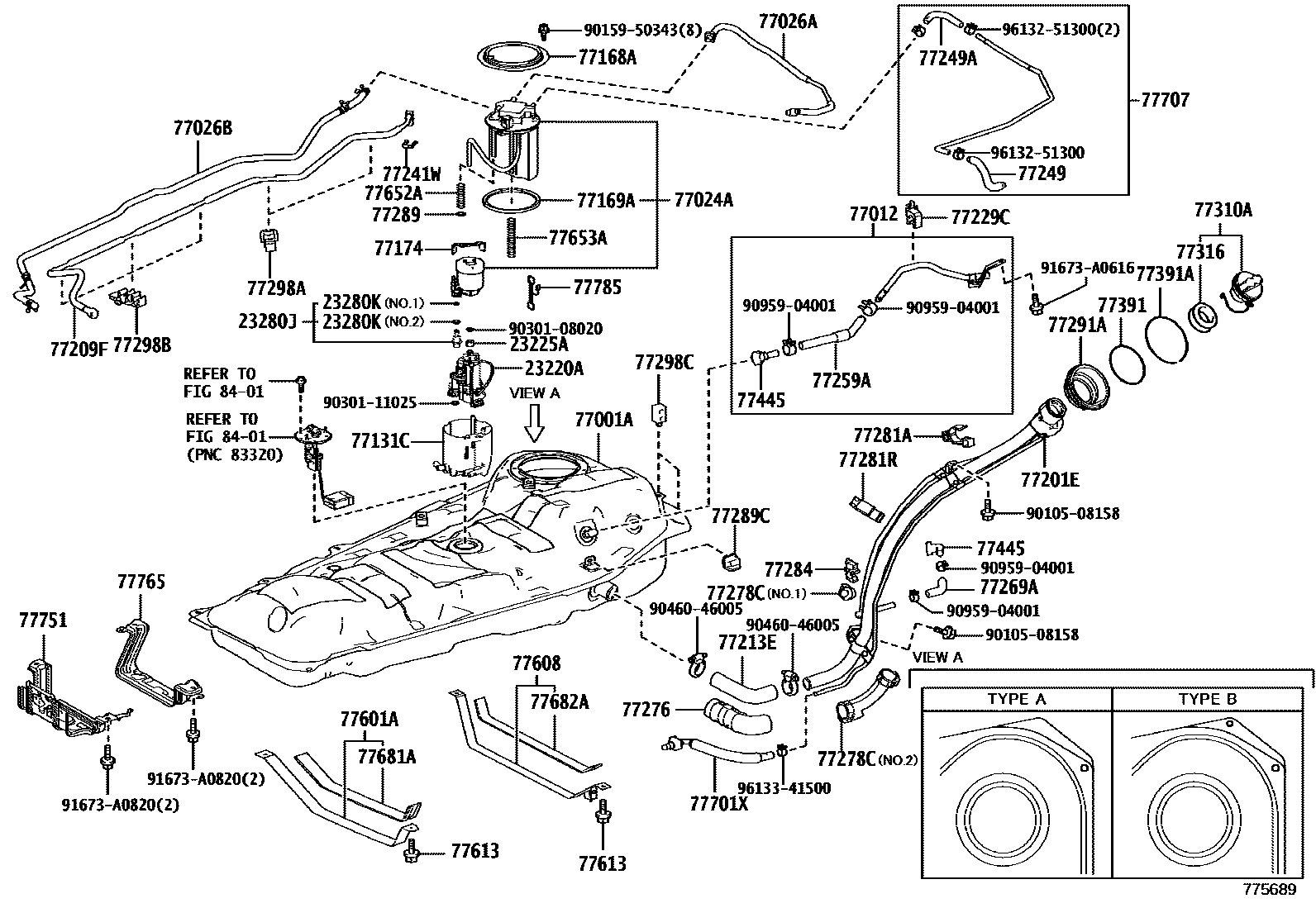

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77001ATANK SUB-ASSY, FUEL
TYPE B:REFER ILLUST.
sub77001-78031
sub77001-78051
sub77001-42290
TYPE B:REFER ILLUST.
HONG KONG SPEC,TYPE B:REFER ILLUST.
BRUNEI SPEC,TYPE B:REFER ILLUST.
INDONESIA SPEC,TYPE B:REFER ILLUST.
MALAYSIA SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77249AHOSE, FUEL EMISSION
77259AHOSE, FUEL(FOR BREATHER TUBE)
77269AHOSE, FUEL TANK BREATHER
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77284CLAMP, FUEL TUBE
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77298ACLAMP, FUEL TUBE, NO.4
PNC 77001A=TYPE B
PNC 77001A=TYPE A
77298BCLAMP, FUEL TUBE, NO.4
PNC 77001A=TYPE B
PNC 77001A=TYPE A
77298CCLAMP, FUEL TUBE, NO.4
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77445CONNECTOR, FUEL TANK VENT, NO.2
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77701XHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77751BRACKET, CHARCOAL CANISTER BASE
CHINA(BEIJING) SPEC
77765PROTECTOR, CHARCOAL CANISTER
CHINA(BEIJING) SPEC
77785HARNESS, FUEL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
8401
9010508158
main90105-08158
9015950343
main90159-50343
9030108020
main90301-08020
9030111025
main90301-11025
9046046005
main90460-46005
9095904001
main90959-04001
91673A0616
main91673-A0616
91673A0820
main91673-A0820
9613251300
main96132-51300
9613341500
main96133-41500
61 parts on this diagram · 11 diagrams in section
