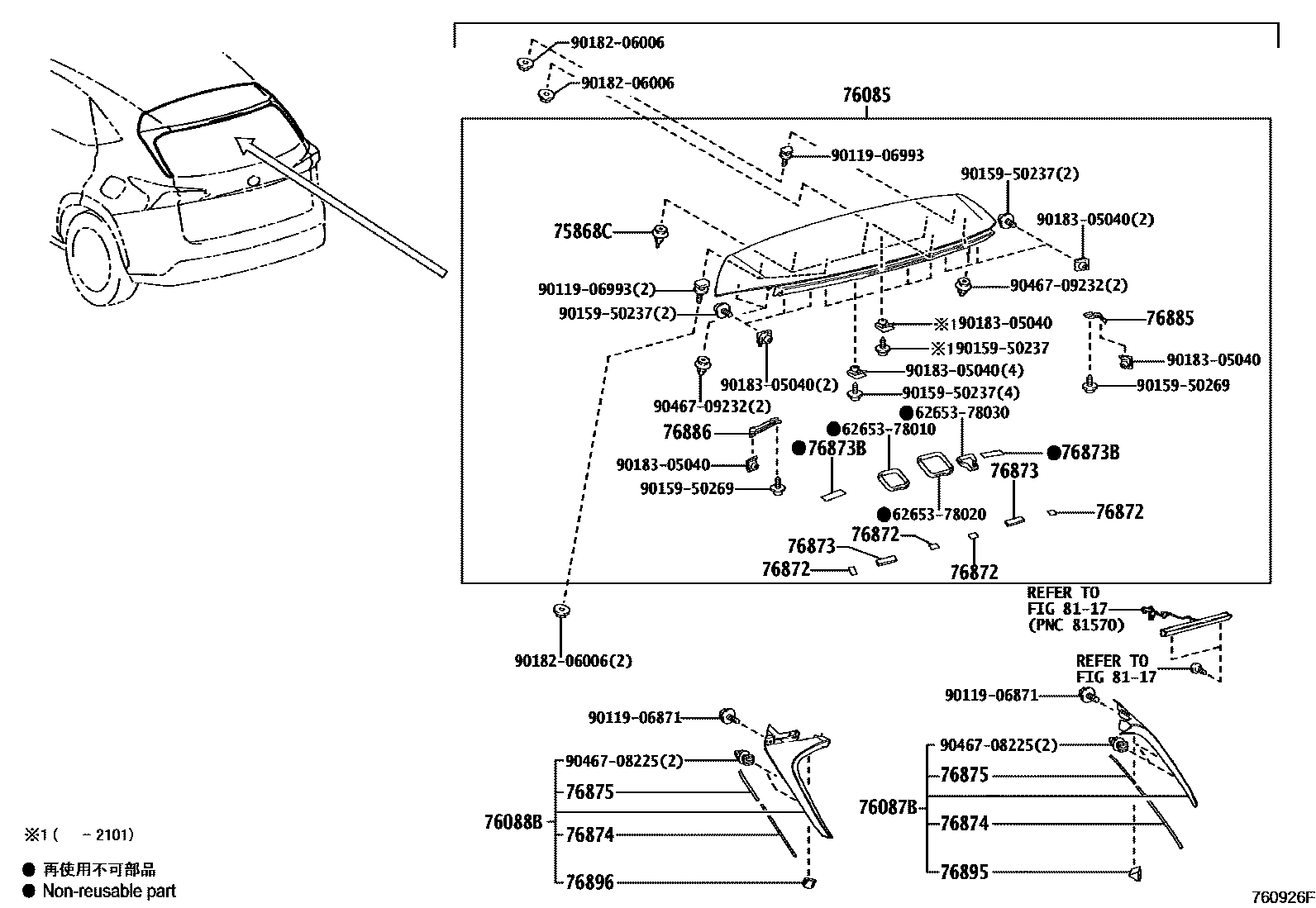

MUDGUARD & SPOILER
75868CCLIP, REAR SPOILER, NO.2
76085SPOILER SUB-ASSY, REAR
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76873BPROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76885RETAINER, REAR SPOILER, NO.5
76886RETAINER, REAR SPOILER, NO.6
76895PROTECTOR, REAR SPOILER, NO.5
76896PROTECTOR, REAR SPOILER, NO.6
8117
6265378010GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78010
6265378020GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78020
6265378030GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78030
9011906871
main90119-06871
9011906993
main90119-06993
9015950237
main90159-50237
9015950269
main90159-50269
9018206006
main90182-06006
9018305040
main90183-05040
9046708225
main90467-08225
9046709232
main90467-09232
25 parts on this diagram · 1 diagram in section
