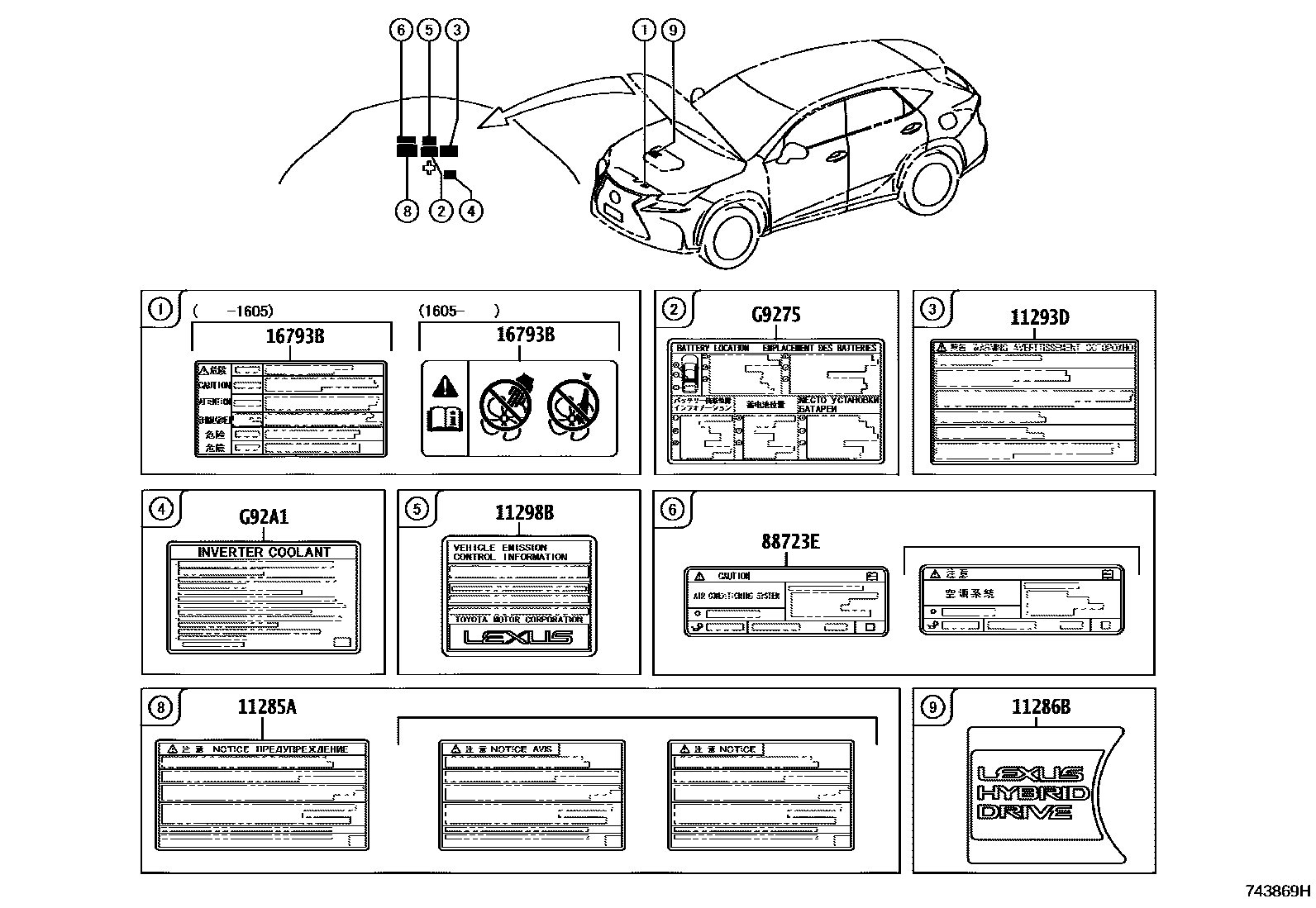

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-36040i8ARFTS..AGZ1#..ARL,GCC,GEN¥280201412-201709

main11285-36050i8ARFTS..AGZ15..CHI201412-202004

main11285-37060i2ARFXE,3ZRFAE..AYZ1#,ZGZ1#¥250201407-201711

11286BPLATE, ENGINE SPECIFICATION

main11286-36010i2ARFXE..AYZ1#¥1,940201407-201709

11293DLABEL, ENGINE CAUTION

main11293-36070i2ARFXE..AYZ1#¥200201407-201709

11298BLABEL, EMISSION CONTROL INFORMATION

16793BLABEL, COOLING FAN INFORMATION

main16793-31040i2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#¥170201407-201511

main16793-36030i8ARFTS..AGZ1#..CHI¥110201809-202004

main16793-36050i2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#¥170201605-201808

main16793-37050i2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#¥240201512-201604

88723ELABEL, COOLER SERVICE CAUTION

main88723-30190iAGZ15,ZGZ1#..CHI201412-202004

main88723-30230iAYZ1#..CHI¥0201410-201709

main88723-30240iAYZ1#..ARL,GCC,GEN¥0201407-201709

main88723-42070iAGZ1#..ARL,GCC,GEN¥0201412-201709

G9275LABEL, BATTERY CAUTION, NO.1

mainG927548050iAYZ1#201407-201709

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAYZ1#201407-202007

8 parts on this diagram · 3 diagrams in section
