FRONT SEAT & SEAT TRACK

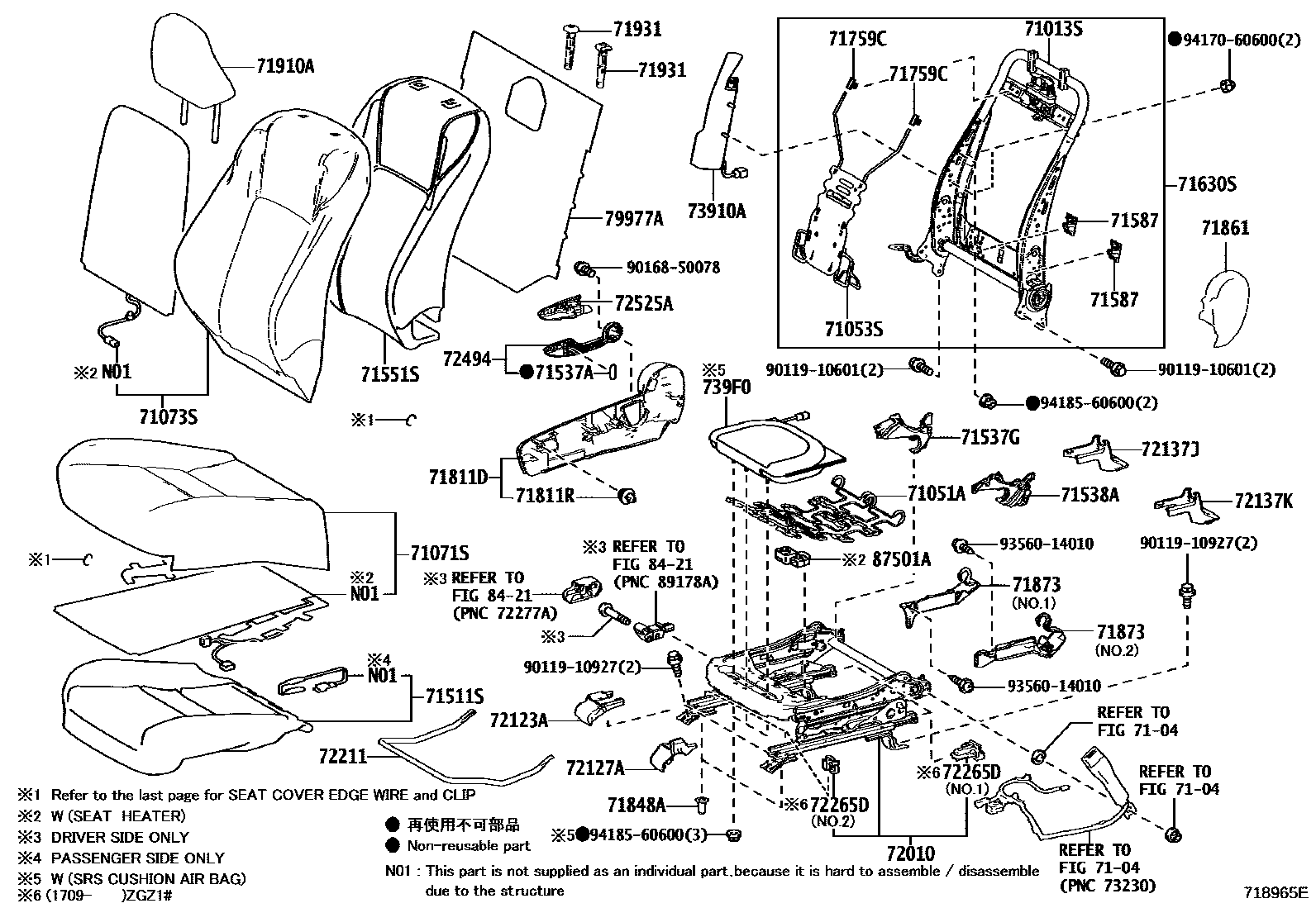

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-78020i201412-201709
main71013-78030i201407-201709
main71013-78060i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71013-78060i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71013-78060i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71013-78060i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71013-78060i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main71013-78060i201709
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-47060i201407-201709
main71051-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71051-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-78010i201407-201709
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-78010-B3i201407-201709
PLATINUM/BLACK/LT.GRAY,TRIM1#
main71071-78010-C6i201407-201709
BLACK METAL/BLACK/LT.GRAY,TRIM2#
main71071-78010-D6i201407-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71071-78030-B3i201407-201709
PLATINUM/BLACK/LT.GRAY,TRIM1#
main71071-78030-C3i201407-201709
BLACK METAL/BLACK/LT.GRAY,TRIM2#
main71071-78030-D3i201407-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71071-78070-A4i201412-201709
WHITE OCHRE/BLACK/LT.GRAY,TRIM0#
main71071-78070-C4i201412-201709
BLACK/BLACK/LT.GRAY,TRIM2#
main71071-78070-D4i201412-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71071-78070-F4i201412-201709
TOPAZ BROWN/BLACK/C.BROWN,TRIM5#
main71071-78080-A4i201410-201709
WHITE OCHRE/BLACK/BEIGE,TRIM0#
main71071-78080-C4i201410-201709
BLACK/BLACK/LT.GRAY,TRIM2#
main71071-78080-D5i201410-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71071-78080-F4i201410-201709
TOPAZ BROWN/BLACK/C.BROWN,TRIM5#
main71071-78200-C1i201709-201905
BLACK METAL,TRIM2#
sub71071-78202
main71071-78200-D0i201709-201905
DK.ROSE,TRIM3#
sub71071-78202
main71071-78201-C2i201905-202112
BLACK METAL,TRIM2#
sub71071-78203
main71071-78201-D1i201905-202112
DK.ROSE,TRIM3#
sub71071-78203
main71071-78220-C1i201709-201905
BLACK METAL,TRIM2#
sub71071-78222
main71071-78220-D0i201709-201905
DK.ROSE,TRIM3#
sub71071-78222
main71071-78221-C2i201905-202112
BLACK METAL,TRIM2#
sub71071-78223
main71071-78221-D1i201905-202112
DK.ROSE,TRIM3#
sub71071-78223
main71071-78260-A0i201709-201905
WHITE OCHRE/WHITE OCHRE,TRIM0#,9#
sub71071-78262
main71071-78260-A0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE/WHITE OCHRE,TRIM0#,9#
sub71071-78262
main71071-78260-A1i201709-201905
RICH CREAM/RICH CREAM,TRIM7#
sub71071-78262
main71071-78260-A1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM/RICH CREAM,TRIM7#
sub71071-78262
main71071-78260-C1i201709-201905
BLACK/RICH CREAM,TRIM6#
sub71071-78262
main71071-78260-C1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RICH CREAM,TRIM6#
sub71071-78262
main71071-78260-C2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK,TRIM2#
sub71071-78262
main71071-78260-C2i201709-201905
BLACK/BLACK,TRIM2#
sub71071-78262
main71071-78260-D1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE(REFINA),TRIM3#
sub71071-78262
main71071-78260-D1i201709-201905
DK.ROSE(REFINA),TRIM3#
sub71071-78262
main71071-78260-E0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER/OCHER,TRIM4#
sub71071-78262
main71071-78260-E0i201709-201905
OCHER/OCHER,TRIM4#
sub71071-78262
main71071-78261-A2i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHER,TRIM0#
sub71071-78263
main71071-78261-A2i201905-202112
WHITE OCHER,TRIM0#
sub71071-78263
main71071-78261-A3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#
sub71071-78263
main71071-78261-A3i201905-202112
RICH CREAM,TRIM7#
sub71071-78263
main71071-78261-C3i201905-202112
BLACK/RICH CREAM,TRIM6#
sub71071-78263
main71071-78261-C3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RICH CREAM,TRIM6#
sub71071-78263
main71071-78261-C4i201905-202112
BLACK/BLACK,TRIM2#
sub71071-78263
main71071-78261-C4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK,TRIM2#
sub71071-78263
main71071-78261-D3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#
sub71071-78263
main71071-78261-D3i201905-202112
DK.ROSE,TRIM3#
sub71071-78263
main71071-78261-E1i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#
sub71071-78263
main71071-78261-E1i201905-202112
OCHER,TRIM4#
sub71071-78263
main71071-78270-A2i201709-201905
WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71071-78272
main71071-78270-A2i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71071-78272
main71071-78270-A2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71071-78272
main71071-78270-A2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71071-78272
main71071-78270-A3i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),RICH CREAM/RICH CREAM,TRIM7#
sub71071-78272
main71071-78270-A3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM/RICH CREAM,TRIM7#
sub71071-78272
main71071-78270-A3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),RICH CREAM/RICH CREAM,TRIM7#
sub71071-78272
main71071-78270-A3i201709-201905
RICH CREAM/RICH CREAM,TRIM7#
sub71071-78272
main71071-78270-C3i201709-201905
BLACK/RICH CREAM,TRIM6#
sub71071-78272
main71071-78270-C3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71071-78272
main71071-78270-C3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK/RICH CREAM,TRIM6#
sub71071-78272
main71071-78270-C3i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/RICH CREAM,TRIM6#
sub71071-78272
main71071-78270-C4i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71071-78272
main71071-78270-C4i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK/BLACK,TRIM2#
sub71071-78272
main71071-78270-C4i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/BLACK,TRIM2#
sub71071-78272
main71071-78270-C4i201709-201905
BLACK/BLACK,TRIM2#
sub71071-78272
main71071-78270-D2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),DK.ROSE/NOBLE BROWN,TRIM3#
sub71071-78272
main71071-78270-D2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE/NOBLE BROWN,TRIM3#
sub71071-78272
main71071-78270-D2i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),DK.ROSE/NOBLE BROWN,TRIM3#
sub71071-78272
main71071-78270-D2i201709-201905
DK.ROSE/NOBLE BROWN,TRIM3#
sub71071-78272
main71071-78270-E1i201709-201905
OCHER/OCHER,TRIM4#
sub71071-78272
main71071-78270-E1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),OCHER/OCHER,TRIM4#
sub71071-78272
main71071-78270-E1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER/OCHER,TRIM4#
sub71071-78272
main71071-78270-E1i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),OCHER/OCHER,TRIM4#
sub71071-78272
main71071-78271-A4i201905-202112
WHITE OCHER,TRIM0#
sub71071-78273
main71071-78271-A4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHER,TRIM0#
sub71071-78273
main71071-78271-A4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),WHITE OCHER,TRIM0#
sub71071-78273
main71071-78271-A5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),RICH CREAM,TRIM7#
sub71071-78273
main71071-78271-A5i201905-202112
RICH CREAM,TRIM7#
sub71071-78273
main71071-78271-A5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71071-78273
main71071-78271-C5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71071-78273
main71071-78271-C5i201905-202112
BLACK/RICH CREAM,TRIM6#
sub71071-78273
main71071-78271-C5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK/RICH CREAM,TRIM6#
sub71071-78273
main71071-78271-C6i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71071-78273
main71071-78271-C6i201905-202112
BLACK/BLACK,TRIM2#
sub71071-78273
main71071-78271-C6i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK/BLACK,TRIM2#
sub71071-78273
main71071-78271-C7i202007-202112
BLACK/CRIMSON,TRIM38
sub71071-78273
main71071-78271-D4i201905-202112
DK.ROSE,TRIM3#
sub71071-78273
main71071-78271-D4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71071-78273
main71071-78271-D4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),DK.ROSE,TRIM3#
sub71071-78273
main71071-78271-D4i202007-202112
DK.ROSE,TRIM30,31,32,33
sub71071-78273
main71071-78271-E2i201905-202112
OCHER,TRIM4#
sub71071-78273
main71071-78271-E2i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71071-78273
main71071-78271-E2i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),OCHER,TRIM4#
sub71071-78273
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-78030-B2i201407-201709
PLATINUM/BLACK/LT.GRAY,TRIM1#
main71073-78030-C5i201407-201709
BLACK METAL/BLACK/LT.GRAY,TRIM2#
main71073-78030-D5i201407-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71073-78070-A3i201412-201709
WHITE OCHRE/BLACK/BEIGE,TRIM0#
main71073-78070-C3i201412-201709
BLACK/BLACK/LT.GRAY,TRIM2#
main71073-78070-D3i201412-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71073-78070-F3i201412-201709
TOPAZ BROWN/BLACK/C.BROWN,TRIM5#
main71073-78080-A3i201410-201709
WHITE OCHRE/BLACK/BEIGE,TRIM0#
main71073-78080-C3i201410-201709
BLACK/BLACK/LT.GRAY,TRIM2#
main71073-78080-D4i201410-201709
GARNET/BLACK/LT.GRAY,TRIM3#
main71073-78080-F3i201410-201709
TOPAZ BROWN/BLACK/C.BROWN,TRIM5#
main71073-78170-C1i201709-201905
BLACK METAL,TRIM2#
sub71073-78172
main71073-78170-D0i201709-201905
DK.ROSE,TRIM3#
sub71073-78172
main71073-78171-C2i201905-202112
BLACK METAL,TRIM2#
sub71073-78173
main71073-78171-D1i201905-202112
DK.ROSE,TRIM3#
sub71073-78173
main71073-78190-A0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE/WHITE OCHRE,TRIM0#,9#
sub71073-78192
main71073-78190-A0i201709-201905
WHITE OCHRE/WHITE OCHRE,TRIM0#,9#
sub71073-78192
main71073-78190-A1i201709-201905
RICH CREAM/RICH CREAM,TRIM7#
sub71073-78192
main71073-78190-A1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM/RICH CREAM,TRIM7#
sub71073-78192
main71073-78190-C1i201709-201905
BLACK/RICH CREAM,TRIM6#
sub71073-78192
main71073-78190-C1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RICH CREAM,TRIM6#
sub71073-78192
main71073-78190-C2i201709-201905
BLACK/BLACK,TRIM2#
sub71073-78192
main71073-78190-C2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK,TRIM2#
sub71073-78192
main71073-78190-D1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE(REFINA),TRIM3#
sub71073-78192
main71073-78190-D1i201709-201905
DK.ROSE(REFINA),TRIM3#
sub71073-78192
main71073-78190-E0i201709-201905
OCHER/OCHER,TRIM4#
sub71073-78192
main71073-78190-E0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER/OCHER,TRIM4#
sub71073-78192
main71073-78191-A2i201905-202112
WHITE OCHER,TRIM0#
sub71073-78193
main71073-78191-A2i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHER,TRIM0#
sub71073-78193
main71073-78191-A3i201905-202112
RICH CREAM,TRIM7#
sub71073-78193
main71073-78191-A3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#
sub71073-78193
main71073-78191-C3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RICH CREAM,TRIM6#
sub71073-78193
main71073-78191-C3i201905-202112
BLACK/RICH CREAM,TRIM6#
sub71073-78193
main71073-78191-C4i201905-202112
BLACK/BLACK,TRIM2#
sub71073-78193
main71073-78191-C4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK,TRIM2#
sub71073-78193
main71073-78191-D3i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#
sub71073-78193
main71073-78191-D3i201905-202112
DK.ROSE,TRIM3#
sub71073-78193
main71073-78191-E1i201905-202112
OCHER,TRIM4#
sub71073-78193
main71073-78191-E1i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#
sub71073-78193
main71073-78200-A2i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71073-78202
main71073-78200-A2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71073-78202
main71073-78200-A2i201709-201905
WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71073-78202
main71073-78200-A3i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),RICH CREAM/RICH CREAM,TRIM7#
sub71073-78202
main71073-78200-A3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM/RICH CREAM,TRIM7#
sub71073-78202
main71073-78200-A3i201709-201905
RICH CREAM/RICH CREAM,TRIM7#
sub71073-78202
main71073-78200-C3i201709-201905
BLACK/RICH CREAM,TRIM6#
sub71073-78202
main71073-78200-C3i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/RICH CREAM,TRIM6#
sub71073-78202
main71073-78200-C3i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71073-78202
main71073-78200-C4i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/BLACK,TRIM2#
sub71073-78202
main71073-78200-C4i201709-201905
BLACK/BLACK,TRIM2#
sub71073-78202
main71073-78200-C4i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71073-78202
main71073-78200-D2i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE/NOBLE BROWN,TRIM3#
sub71073-78202
main71073-78200-D2i201709-201905
DK.ROSE/NOBLE BROWN,TRIM3#
sub71073-78202
main71073-78200-D2i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),DK.ROSE/NOBLE BROWN,TRIM3#
sub71073-78202
main71073-78200-E1i201709-201905
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),OCHER/OCHER,TRIM4#
sub71073-78202
main71073-78200-E1i201709-201905
OCHER/OCHER,TRIM4#
sub71073-78202
main71073-78200-E1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER/OCHER,TRIM4#
sub71073-78202
main71073-78201-A4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHER,TRIM0#
sub71073-78203
main71073-78201-A4i201905-202112
WHITE OCHER,TRIM0#
sub71073-78203
main71073-78201-A5i201905-202112
RICH CREAM,TRIM7#
sub71073-78203
main71073-78201-A5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71073-78203
main71073-78201-C5i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71073-78203
main71073-78201-C5i201905-202112
BLACK/RICH CREAM,TRIM6#
sub71073-78203
main71073-78201-C6i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71073-78203
main71073-78201-C6i201905-202112
BLACK/BLACK,TRIM2#
sub71073-78203
main71073-78201-C7i202007-202112
BLACK/CRIMSON,TRIM38
sub71073-78203
main71073-78201-D4i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71073-78203
main71073-78201-D4i202007-202112
DK.ROSE,TRIM30,31,32,33
sub71073-78203
main71073-78201-D4i201905-202112
DK.ROSE,TRIM3#
sub71073-78203
main71073-78201-E2i201905-202112
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71073-78203
main71073-78201-E2i201905-202112
OCHER,TRIM4#
sub71073-78203
main71073-78300-A0i201802-201808
WHITE OCHRE,TRIM0#
sub71073-78302
main71073-78300-A0i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),WHITE OCHRE,TRIM0#
sub71073-78302
main71073-78300-A0i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE,TRIM0#
sub71073-78302
main71073-78300-A1i201802-201808
RICH CREAM,TRIM7#
sub71073-78302
main71073-78300-A1i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),RICH CREAM,TRIM7#
sub71073-78302
main71073-78300-A1i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71073-78302
main71073-78300-C0i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71073-78302
main71073-78300-C0i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/RICH CREAM,TRIM6#
sub71073-78302
main71073-78300-C0i201802-201808
BLACK/RICH CREAM,TRIM6#
sub71073-78302
main71073-78300-C1i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71073-78302
main71073-78300-C1i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),BLACK/BLACK,TRIM2#
sub71073-78302
main71073-78300-C1i201802-201808
BLACK/BLACK,TRIM2#
sub71073-78302
main71073-78300-D0i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),DK.ROSE,TRIM3#
sub71073-78302
main71073-78300-D0i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71073-78302
main71073-78300-D0i201802-201808
DK.ROSE,TRIM3#
sub71073-78302
main71073-78300-E0i201802-201808
OCHER,TRIM4#
sub71073-78302
main71073-78300-E0i201802-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71073-78302
main71073-78300-E0i201802-201808
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT),OCHER,TRIM4#
sub71073-78302
main71073-78301-A2i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHER,TRIM0#
sub71073-78303
main71073-78301-A2i202009-202107
WHITE OCHER,TRIM0#
sub71073-78303
main71073-78301-A3i202009-202107
RICH CREAM,TRIM7#
sub71073-78303
main71073-78301-A3i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71073-78303
main71073-78301-C2i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/RICH CREAM,TRIM6#
sub71073-78303
main71073-78301-C2i202009-202107
BLACK/RICH CREAM,TRIM6#
sub71073-78303
main71073-78301-C3i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK,TRIM2#
sub71073-78303
main71073-78301-C3i202009-202107
BLACK/BLACK,TRIM2#
sub71073-78303
main71073-78301-C4i202009-202107
BLACK/CRIMSON,TRIM38
sub71073-78303
main71073-78301-D2i202009-202107
DK.ROSE,TRIM3#
sub71073-78303
main71073-78301-D2i202009-202107
DK.ROSE,TRIM30,31,32,33
sub71073-78303
main71073-78301-D2i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71073-78303
main71073-78301-E1i202009-202107
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71073-78303
main71073-78301-E1i202009-202107
OCHER,TRIM4#
sub71073-78303
main71073-78320-C0i201802-201808
BLACK,TRIM2#
sub71073-78322
main71073-78320-D0i201802-201808
DK.ROSE,TRIM3#
sub71073-78322
main71073-78321-C1i202009-202107
BLACK,TRIM2#
main71073-78321-D1i202009-202107
DK.ROSE,TRIM3#
main71073-78330-A0i201803-201905
WHITE OCHRE/WHITE OCHRE,TRIM0#
sub71073-78332
main71073-78330-A1i201803-201905
RICH CREAM/RICH CREAM,TRIM7#
sub71073-78332
main71073-78330-C0i201803-201905
BLACK/RICH CREAM,TRIM6#
sub71073-78332
main71073-78330-C1i201803-201905
BLACK/BLACK,TRIM2#
sub71073-78332
main71073-78330-D0i201803-201905
DK.ROSE(REFINA),TRIM3#
sub71073-78332
main71073-78330-E0i201803-201905
OCHER/OCHER,TRIM4#
sub71073-78332
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-78010i201407-201709
main71501-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main71501-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71511-78010i201407-201709
main71511-78030i201709
71537APROTECTOR, FRONT SEAT CUSHION
main71537-47040i201407-201709
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
main71537-42010-C0i201709
BLACK,TRIM2#,3#
main71537-42010-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71537-42010-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main71537-42010-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
main71537-42010-C0i201709
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
main71538-42010-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71538-42010-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main71538-42010-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
main71538-42010-C0i201709
BLACK,TRIM2#,3#
main71538-42010-C0i201709
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-78030i201407-201507
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
sub71551-78031
main71551-78030i201407-201507
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub71551-78031
main71551-78031i201508-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71551-78031i201508-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main71551-78050i201407-201507
sub71551-78051
main71551-78051i201508-201709
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201407-201709
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-78020i201412-201709
main71630-78030i201407-201709
main71630-78100i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71630-78100i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71630-78100i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71630-78100i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71630-78100i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main71630-78100i201709
71759CHOOK, FRONT SEATBACK, NO.1
main71759-47011i201407-201709
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-78010-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main71811-78010-C0i201709
BLACK,TRIM2#,3#
main71811-78010-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71811-78020-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5#
main71811-78020-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9#
main71811-78020-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5#
main71811-78020-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9#
main71811-78020-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71811-78020-C0i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71811-78020-C0i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,
main71811-78020-C0i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71811-78020-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
main71811-78020-C0i201709
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main71811-78020-C0i201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
71811RCLIP, FRONT SEAT CUSHION SHIELD, RH
main71769-08010i201609-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main71769-08010i201609-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71769-08010i201609-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71769-08010i201609-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71769-08010i201609-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71769-47020i201407-201709
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-76010i201407-201709
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-42060-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main71861-42060-C0i201709
BLACK,TRIM2#,3#
main71861-42060-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71861-78010-C0i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71861-78010-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5#
main71861-78010-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9#
main71861-78010-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5#
main71861-78010-C0i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9#
main71861-78010-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main71861-78010-C0i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71861-78010-C0i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,
main71861-78010-C0i201410-201709
BLACK,TRIM0#,2#,3#,4#,5#
main71861-78010-C0i201410-201709
BLACK,TRIM0#,2#,3#,4#,5#,9#
main71861-78010-C0i201412-201709
BLACK,TRIM0#,2#,3#,5#,9#
main71861-78010-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,1#,2#,3#,5#
main71861-78010-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
main71861-78010-C0i201709
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main71861-78010-C0i201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47040i201407-201709
NO.1:REFER ILLUST.
main71873-78020i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71873-78020i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:R
main71873-78020i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71873-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST.
main71873-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST.
main71873-78020i201407-201709
NO.1:REFER ILLUST.
main71874-47040i201407-201709
NO.2:REFER ILLUST.
main71874-60110i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST.
main71874-60110i201407-201709
NO.2:REFER ILLUST.
main71874-60110i201407-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main71874-60110i201407-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:R
main71874-60110i201407-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main71874-60110i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST.
71910AHEADREST ASSY, FRONT SEAT
main71910-78010-D2i201709-201805
DK.ROSE,TRIM3#
sub71910-78150
main71910-78020-A1i201410-201412
WHITE OCHRE/BEIGE,TRIM0#
sub71910-78160
main71910-78020-C6i201410-201412
BLACK/LT.GRAY,TRIM2#
sub71910-78160
main71910-78020-D1i201410-201412
GARNET/LT.GRAY,TRIM3#
sub71910-78160
main71910-78020-F1i201410-201412
TOPAZ BROWN/C.BROWN,TRIM5#
sub71910-78160
main71910-78050-B0i201407-201709
PLATINUM,TRIM1#
sub71910-78360
main71910-78050-C5i201407-201805
BLACK METAL,TRIM2#
sub71910-78360
main71910-78050-D1i201407-201709
GARNET,TRIM3#
sub71910-78360
main71910-78050-D4i201709-201805
DK.ROSE,TRIM3#
sub71910-78360
main71910-78100-B0i201407-201411
PLATINUM,TRIM1#
sub71910-78101
main71910-78100-C6i201407-201411
BLACK METAL,TRIM2#
sub71910-78101
main71910-78100-D1i201407-201411
GARNET,TRIM3#
sub71910-78101
main71910-78101-B0i201412-201709
PLATINUM,TRIM1#
sub71910-78370
main71910-78101-C6i201412-201805
BLACK METAL,TRIM2#
sub71910-78370
main71910-78101-D1i201412-201709
GARNET,TRIM3#
sub71910-78370
main71910-78101-D4i201709-201805
DK.ROSE,TRIM3#
sub71910-78370
main71910-78150-B0i201412-201709
PLATINUM,TRIM1#
sub71910-78380
main71910-78150-C0i201412-201805
BLACK METAL,TRIM2#
sub71910-78380
main71910-78150-C0i201709-201806
BLACK METAL,TRIM2#,W(CCC MARK)
sub71910-78380
main71910-78150-D0i201412-201709
GARNET,TRIM3#
sub71910-78380
main71910-78150-D1i201709-201806
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78380
main71910-78160-A0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0#
main71910-78160-A0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE/BEIGE,TRIM0#
main71910-78160-A0i201412-201709
WHITE OCHRE/BEIGE,TRIM0#
main71910-78160-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2#
main71910-78160-C0i201412-201709
BLACK/LT.GRAY,TRIM2#
main71910-78160-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM2#
main71910-78160-D0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3#
main71910-78160-D0i201412-201709
GARNET/LT.GRAY,TRIM3#
main71910-78160-D0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,GARNET/LT.GRAY,TRIM3#
main71910-78160-F0i201412-201709
TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78160-F0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78160-F0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78180-A0i201412-201709
WHITE OCHRE/BEIGE,TRIM0#
main71910-78180-A0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE/BEIGE,TRIM0#
main71910-78180-A0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0#
main71910-78180-A0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0#
main71910-78180-C0i201412-201709
BLACK/LT.GRAY,TRIM2#
main71910-78180-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM2#
main71910-78180-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2#
main71910-78180-C0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2#
main71910-78180-D0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3#
main71910-78180-D0i201412-201709
GARNET/LT.GRAY,TRIM3#
main71910-78180-D0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,GARNET/LT.GRAY,TRIM3#
main71910-78180-D0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3#
main71910-78180-F0i201412-201709
TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78180-F0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78180-F0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78180-F0i201412-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5#
main71910-78210-A0i201709-201808
WHITE OCHRE/BEIGE,TRIM0#,9#
sub71910-78330
main71910-78210-A0i201709-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0#,9#
sub71910-78330
main71910-78210-A1i201709-201808
RICH CREAM/LT.GRAY,TRIM7#
sub71910-78330
main71910-78210-A1i201709-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM/LT.GRAY,TRIM7#
sub71910-78330
main71910-78210-C1i201709-201808
BLACK/LT.GRAY,TRIM2#,6#
sub71910-78330
main71910-78210-C1i201709-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2#,6#
sub71910-78330
main71910-78210-D1i201709-201808
DK.ROSE,TRIM3#
sub71910-78330
main71910-78210-D1i201709-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71910-78330
main71910-78210-E0i201709-201808
OCHER/IVORY,TRIM4#
sub71910-78330
main71910-78210-E0i201709-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER/IVORY,TRIM4#
sub71910-78330
main71910-78240-A0i201709-201905
WHITE OCHRE/BEIGE,TRIM0#,9#
sub71910-78320
main71910-78240-A0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE/BEIGE,TRIM0#,9#
sub71910-78320
main71910-78240-A0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),WHITE OCHRE/BEIGE,TRIM0#,9#
sub71910-78320
main71910-78240-A1i201709-201905
RICH CREAM/LT.GRAY,TRIM7#
sub71910-78320
main71910-78240-A1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM/LT.GRAY,TRIM7#
sub71910-78320
main71910-78240-A1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),RICH CREAM/LT.GRAY,TRIM7#
sub71910-78320
main71910-78240-C1i201709-201905
BLACK/LT.GRAY,TRIM2#,6#
sub71910-78320
main71910-78240-C1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM2#,6#
sub71910-78320
main71910-78240-C1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK/LT.GRAY,TRIM2#,6#
sub71910-78320
main71910-78240-D1i201709-201905
DK.ROSE(REFINA),TRIM3#
sub71910-78320
main71910-78240-D1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE(REFINA),TRIM3#
sub71910-78320
main71910-78240-E0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),OCHER/IVORY,TRIM4#
sub71910-78320
main71910-78240-E0i201709-201905
OCHER/IVORY,TRIM4#
sub71910-78320
main71910-78240-E0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER/IVORY,TRIM4#
sub71910-78320
main71910-78290-A0i201709-201905
WHITE OCHRE/BEIGE,TRIM0#,9#
main71910-78290-A1i201709-201905
RICH CREAM/LT.GRAY,TRIM7#
main71910-78290-C1i201709-201905
BLACK/LT.GRAY,TRIM2#,6#
main71910-78290-D1i201709-201905
DK.ROSE(REFINA),TRIM3#
main71910-78290-E0i201709-201905
OCHER/IVORY,TRIM4#
main71910-78291-A2i201905-201907
WHITE OCHER,TRIM0#
sub71910-78291
main71910-78291-A3i201905-201907
RICH CREAM,TRIM7#
sub71910-78291
main71910-78291-A4i201907-202109
WHITE OCHER,TRIM0#
sub71910-78291
main71910-78291-A5i201907-202109
RICH CREAM,TRIM7#
sub71910-78291
main71910-78291-C2i201905-201907
BLACK,TRIM2#,6#
sub71910-78291
main71910-78291-C3i201907-202109
BLACK,TRIM2#,6#
sub71910-78291
main71910-78291-D2i201905-201907
DK.ROSE,TRIM3#
sub71910-78291
main71910-78291-D3i201907-202109
DK.ROSE,TRIM3#
sub71910-78291
main71910-78291-E1i201905-201907
OCHER,TRIM4#
sub71910-78291
main71910-78291-E2i201907-202109
OCHER,TRIM4#
sub71910-78291
main71910-78320-A0i201709-201905
WHITE OCHRE,TRIM0#,W(CCC MARK)
main71910-78320-A1i201709-201905
RICH CREAM,TRIM7#,W(CCC MARK)
main71910-78320-C1i201709-201905
BLACK,TRIM2#,6#,W(CCC MARK)
main71910-78320-D0i201709-201905
DK.ROSE(REFINA),TRIM3#,W(CCC MARK)
main71910-78320-E0i201709-201905
OCHER,TRIM4#,W(CCC MARK)
main71910-78321i201907-202004
W(CCC MARK)
main71910-78321-A2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHER,TRIM0#
sub71910-78321
main71910-78321-A2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),WHITE OCHER,TRIM0#
sub71910-78321
main71910-78321-A2i201905-201907
WHITE OCHER,TRIM0#,W(CCC MARK)
sub71910-78321
main71910-78321-A2i201905-201907
WHITE OCHER,TRIM0#
sub71910-78321
main71910-78321-A3i201905-201907
RICH CREAM,TRIM7#
sub71910-78321
main71910-78321-A3i201905-201907
RICH CREAM,TRIM7#,W(CCC MARK)
sub71910-78321
main71910-78321-A3i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#
sub71910-78321
main71910-78321-A3i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),RICH CREAM,TRIM7#
sub71910-78321
main71910-78321-A4i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TRIM0#
sub71910-78321
main71910-78321-A4i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),TRIM0#
sub71910-78321
main71910-78321-A4i201907-202109
TRIM0#
sub71910-78321
main71910-78321-A5i201907-202109
TRIM7#
sub71910-78321
main71910-78321-A5i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),TRIM7#
sub71910-78321
main71910-78321-A5i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TRIM7#
sub71910-78321
main71910-78321-C2i201905-201907
BLACK,TRIM2#,6#,W(CCC MARK)
sub71910-78321
main71910-78321-C2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),BLACK,TRIM2#,6#
sub71910-78321
main71910-78321-C2i201905-201907
BLACK,TRIM2#,6#
sub71910-78321
main71910-78321-C2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,6#
sub71910-78321
main71910-78321-C3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TRIM2#,6#
sub71910-78321
main71910-78321-C3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),TRIM2#,6#
sub71910-78321
main71910-78321-C3i201907-202109
TRIM2#,6#
sub71910-78321
main71910-78321-D2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),DK.ROSE,TRIM3#
sub71910-78321
main71910-78321-D2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#
sub71910-78321
main71910-78321-D2i201905-201907
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78321
main71910-78321-D2i201905-201907
DK.ROSE,TRIM3#
sub71910-78321
main71910-78321-D3i201907-202109
TRIM3#
sub71910-78321
main71910-78321-D3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TRIM3#
sub71910-78321
main71910-78321-D3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),TRIM3#
sub71910-78321
main71910-78321-E1i201905-201907
OCHER,TRIM4#,W(CCC MARK)
sub71910-78321
main71910-78321-E1i201905-201907
OCHER,TRIM4#
sub71910-78321
main71910-78321-E1i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#
sub71910-78321
main71910-78321-E1i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),OCHER,TRIM4#
sub71910-78321
main71910-78321-E2i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TRIM4#
sub71910-78321
main71910-78321-E2i201907-202109
TRIM4#
sub71910-78321
main71910-78321-E2i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT),TRIM4#
sub71910-78321
main71910-78330-A0i201709-201905
WHITE OCHRE,TRIM0#,W(CCC MARK)
main71910-78330-A0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHRE,TRIM0#,W(CCC MARK)
main71910-78330-A0i201808-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE,TRIM0#
main71910-78330-A0i201808-201905
WHITE OCHRE,TRIM0#
main71910-78330-A1i201808-201905
RICH CREAM,TRIM7#
main71910-78330-A1i201808-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
main71910-78330-A1i201709-201905
RICH CREAM,TRIM7#,W(CCC MARK)
main71910-78330-A1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#,W(CCC MARK)
main71910-78330-C1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,6#,W(CCC MARK)
main71910-78330-C1i201808-201905
BLACK,TRIM2#,6#
main71910-78330-C1i201808-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM2#,6#
main71910-78330-C1i201709-201905
BLACK,TRIM2#,6#,W(CCC MARK)
main71910-78330-D1i201709-201905
DK.ROSE,TRIM3#,W(CCC MARK)
main71910-78330-D1i201808-201905
DK.ROSE,TRIM3#
main71910-78330-D1i201808-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
main71910-78330-D1i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#,W(CCC MARK)
main71910-78330-E0i201709-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#,W(CCC MARK)
main71910-78330-E0i201808-201905
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
main71910-78330-E0i201808-201905
OCHER,TRIM4#
main71910-78330-E0i201709-201905
OCHER,TRIM4#,W(CCC MARK)
main71910-78331-A2i201905-201907
WHITE OCHER,TRIM0#,W(CCC MARK)
sub71910-78331
main71910-78331-A2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHER,TRIM0#,W(CCC MARK)
sub71910-78331
main71910-78331-A2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHER,TRIM0#
sub71910-78331
main71910-78331-A3i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#,W(CCC MARK)
sub71910-78331
main71910-78331-A3i201905-201907
RICH CREAM,TRIM7#,W(CCC MARK)
sub71910-78331
main71910-78331-A3i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71910-78331
main71910-78331-A4i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHER,TRIM0#
sub71910-78331
main71910-78331-A4i201907-202109
WHITE OCHER,TRIM0#,W(CCC MARK)
sub71910-78331
main71910-78331-A4i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE OCHER,TRIM0#,W(CCC MARK)
sub71910-78331
main71910-78331-A5i201907-202109
RICH CREAM,TRIM7#,W(CCC MARK)
sub71910-78331
main71910-78331-A5i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,RICH CREAM,TRIM7#
sub71910-78331
main71910-78331-A5i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM7#,W(CCC MARK)
sub71910-78331
main71910-78331-C2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM2#,6#
sub71910-78331
main71910-78331-C2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,6#,W(CCC MARK)
sub71910-78331
main71910-78331-C2i201905-201907
BLACK,TRIM2#,6#,W(CCC MARK)
sub71910-78331
main71910-78331-C3i201907-202109
BLACK,TRIM2#,6#,W(CCC MARK)
sub71910-78331
main71910-78331-C3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM2#,6#
sub71910-78331
main71910-78331-C3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,6#,W(CCC MARK)
sub71910-78331
main71910-78331-C4i202007-202109
BLACK/CRIMSON,TRIM38,W(CCC MARK)
sub71910-78331
main71910-78331-D2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78331
main71910-78331-D2i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71910-78331
main71910-78331-D2i201905-201907
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78331
main71910-78331-D3i201907-202109
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78331
main71910-78331-D3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78331
main71910-78331-D3i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,DK.ROSE,TRIM3#
sub71910-78331
main71910-78331-D3i202007-202109
DK.ROSE,TRIM30,31,32,33,W(CCC MARK)
sub71910-78331
main71910-78331-E1i201905-201907
OCHER,TRIM4#,W(CCC MARK)
sub71910-78331
main71910-78331-E1i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#,W(CCC MARK)
sub71910-78331
main71910-78331-E1i201905-201907
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71910-78331
main71910-78331-E2i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,OCHER,TRIM4#
sub71910-78331
main71910-78331-E2i201907-202109
SEAT COVER MATERIAL-SYNTHETIC LEATHER,OCHER,TRIM4#,W(CCC MARK)
sub71910-78331
main71910-78331-E2i201907-202109
OCHER,TRIM4#,W(CCC MARK)
sub71910-78331
main71910-78360-C0i201806-201905
BLACK METAL,TRIM2#
main71910-78360-D0i201806-201905
DK.ROSE,TRIM3#
main71910-78361-C0i201905-201907
BLACK METAL,TRIM2#
sub71910-78361
main71910-78361-C1i201907-202109
BLACK METAL,TRIM2#
sub71910-78361
main71910-78361-D0i201905-201907
DK.ROSE,TRIM3#
sub71910-78361
main71910-78361-D1i201907-202109
DK.ROSE,TRIM3#
sub71910-78361
main71910-78370-C0i201806-201905
BLACK METAL,TRIM2#
main71910-78370-D0i201806-201905
DK.ROSE,TRIM3#
main71910-78371-C0i201905-201907
BLACK METAL,TRIM2#
sub71910-78371
main71910-78371-C1i201907-202109
BLACK METAL,TRIM2#
sub71910-78371
main71910-78371-D0i201905-201907
DK.ROSE,TRIM3#
sub71910-78371
main71910-78371-D1i201907-202109
DK.ROSE,TRIM3#
sub71910-78371
main71910-78380-C0i201806-201905
BLACK METAL,TRIM2#,W(CCC MARK)
main71910-78380-D0i201806-201905
DK.ROSE,TRIM3#,W(CCC MARK)
main71910-78381-C0i201905-201907
BLACK METAL,TRIM2#,W(CCC MARK)
sub71910-78381
main71910-78381-C1i201907-202109
BLACK METAL,TRIM2#,W(CCC MARK)
sub71910-78381
main71910-78381-D0i201905-201907
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78381
main71910-78381-D2i201907-202109
DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-78381
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-C0i201709-201710
W(LOCK),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
sub71930-47020
main71930-47020-C0i201412-201709
W(LOCK),BLACK,TRIM1#,2#,3#
sub71930-47020
main71930-47020-C0i201410-201709
W(LOCK),BLACK,TRIM0#,2#,3#,5#
sub71930-47020
main71930-47020-C0i201709-201710
W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
sub71930-47020
main71930-47020-C0i201709-201710
W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
sub71930-47020
main71930-47020-C0i201709-201710
W(LOCK),BLACK,TRIM2#,3#
sub71930-47020
main71930-47020-C0i201407-201709
W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub71930-47020
main71930-47020-C0i201410-201709
W(LOCK),VERSION L*(L)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,9#
sub71930-47020
main71930-47020-C4i201710-202109
W(LOCK),BLACK,TRIM0#,2#,3#,4#,6#,7#
sub71930-47020
main71930-47020-C4i201710-202109
W(LOCK),BLACK,TRIM2#,3#
sub71930-47020
main71931-47020-C0i201709-201710
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
sub71931-47020
main71931-47020-C0i201407-201709
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub71931-47020
main71931-47020-C0i201410-201709
W/O(LOCK),BLACK,TRIM0#,2#,3#,5#
sub71931-47020
main71931-47020-C0i201410-201709
W/O(LOCK),VERSION L*(L)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,9#
sub71931-47020
main71931-47020-C0i201412-201709
W/O(LOCK),BLACK,TRIM1#,2#,3#
sub71931-47020
main71931-47020-C0i201709-201710
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
sub71931-47020
main71931-47020-C0i201709-201710
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
sub71931-47020
main71931-47020-C0i201709-201710
W/O(LOCK),BLACK,TRIM2#,3#
sub71931-47020
main71931-47020-C4i201710-202109
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,6#,7#
sub71931-47020
main71931-47020-C4i201710-202109
W/O(LOCK),BLACK,TRIM2#,3#
sub71931-47020
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-78010i201407-201709
main72010-78050i201407-201707
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
sub72010-78051
main72010-78050i201407-201707
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
sub72010-78051
main72010-78050i201407-201707
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
sub72010-78051
main72010-78050i201407-201707
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
sub72010-78051
main72010-78050i201407-201707
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub72010-78051
main72010-78051i201708-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main72010-78051i201708-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main72010-78051i201708-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main72010-78051i201708-201709
F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main72010-78051i201708-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main72010-78061i201709
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-42030-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main72123-42030-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main72123-42030-C0i201709-202004
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main72123-42030-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-42030-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main72127-42030-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main72127-42030-C0i201709-202004
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main72127-42030-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-42050-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main72137-42050-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main72137-42050-C0i201709-202004
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main72137-42050-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72158-42020-C0i201709-202004
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
main72158-42020-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
main72158-42020-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
main72158-42020-C0i201709
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-47020i201407-201709
72265DCOVER, SEAT TRACK UPPER RAIL
main72265-42010i201709
NO.1:REFER ILLUST.
main72265-60110i201709
NO.2:REFER ILLUST.
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-42020-C0i201407-201709
BLACK,TRIM1#,2#,3#
main72494-42020-C0i201709
BLACK,TRIM2#,3#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-47010-C0i201407-201709
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub72525-47010
sub72525-52050
main72525-47010-C0i201412-201709
BLACK,TRIM0#,1#,2#,3#,5#
sub72525-47010
sub72525-52050
main72525-47010-C0i201709-201710
BLACK,TRIM2#,3#
sub72525-47010
sub72525-52050
main72525-47010-C1i201710
BLACK,TRIM2#,3#
sub72525-47010
sub72525-52050
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-42060i201407-201709
739F0AIRBAG ASSY, FRONT SEAT CUSHION, RH
main739F0-78010i201407-201709
main739F0-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main739F0-78020i201407-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
79977AFELT, SEATBACK
main79977-78010i201407-201709
8421
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-30040i201410-201503
sub87501-30041
main87501-30041i201504-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER
main87501-30041i201504-201709
VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER
main87501-30041i201504-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER
main87501-30041i201504-201709
VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION)
main87501-30041i201504-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER
main87501-30041i201504-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main87501-30041i201504-201709
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87501-30041i201709
VERSION L&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER
main87501-30041i201709
VERSION L&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WIT
main87501-30041i201709
VERSION L&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER
main87501-30041i201709
VERSION L&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(*DRP) & WITH(VENTILATION SEAT)
main87501-30041i201709
VERSION L&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT
main87501-30041i201709
VERSION L&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER
main87501-30041i201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATIONSEAT)
main87501-30041i201709
SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT)
9011910601
main90119-10601
9011910927
main90119-10927
9016850078
main90168-50078
9356014010
main93560-14010
9417060600
main94170-60600
9418560600
main94185-60600

41 parts on this diagram · 11 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
