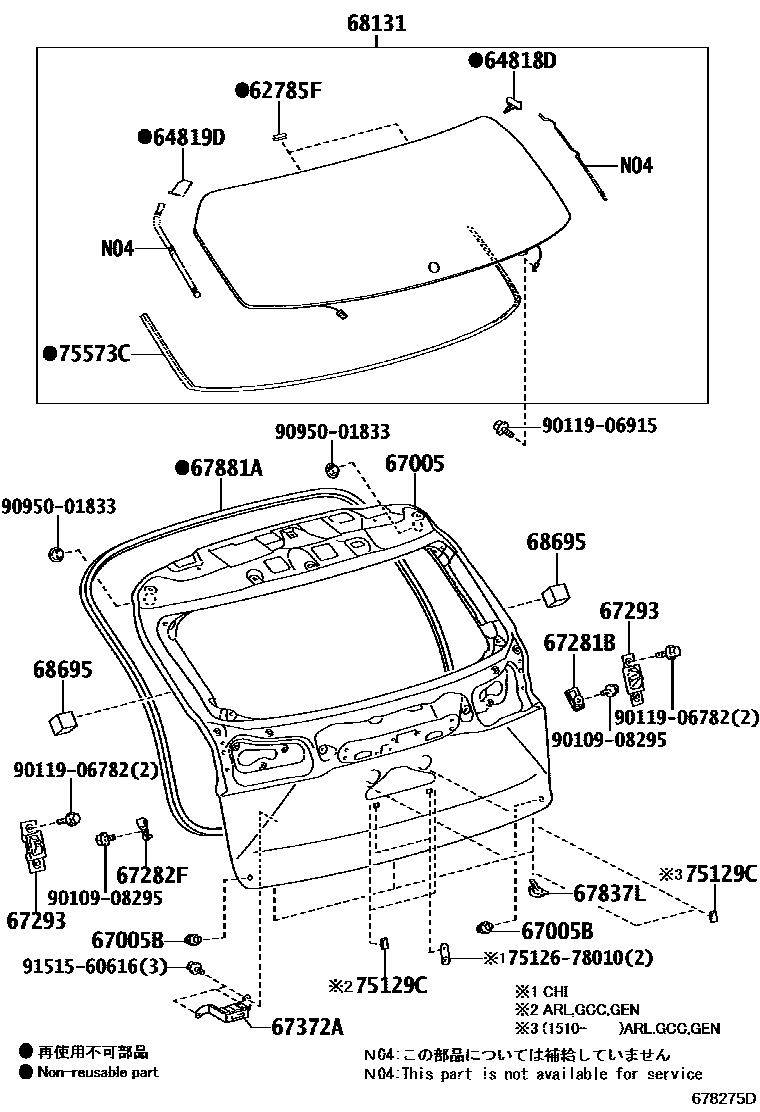

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818DSPACER, BACK WINDOW GLASS, NO.3
64819DSPACER, BACK WINDOW GLASS, NO.4
67005PANEL SUB-ASSY, BACK DOOR
BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67372AWEIGHT, BACK DOOR
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
BRUNEI SPEC
SINGAPORE SPEC
MALAYSIA SPEC
HONG KONG SPEC
MACAO SPEC
68695PAD, BACK DOOR WINDOW FRAME
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER
9010908295
9011906782
9011906915
9095001833
9151560616
21 parts on this diagram · 2 diagrams in section
