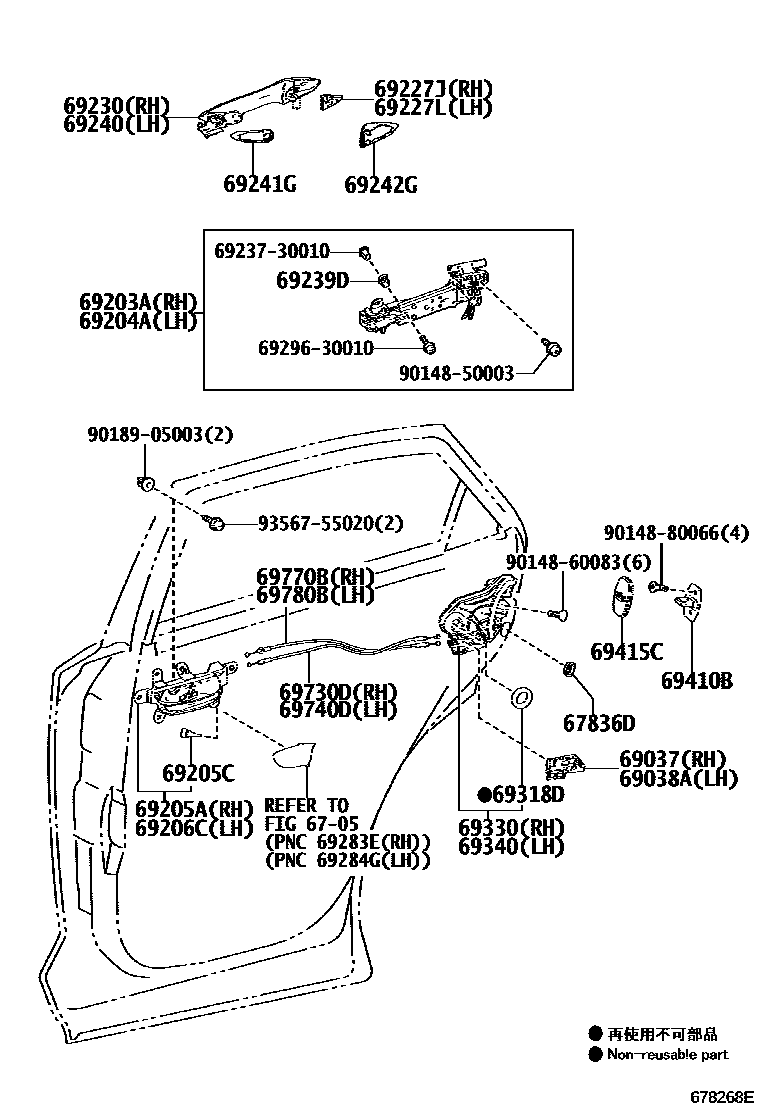

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#
BLACK,TRIM0#,2#,30,31,32,33,4#,6#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,5#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#
BLACK,TRIM04,05,06,07,1#,2#,3#,5#
BLACK,TRIM0#,2#,30,31,32,33,4#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
SMART ENTRY-2 BUTTON TYPE,SONIC QUARTZ,085
SONIC QUARTZ,085
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
SMART ENTRY-2 BUTTON TYPE,MERCURY GRAY MC.,1H9
SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
SMART ENTRY-2 BUTTON TYPE,SONIC TITANIUM,1J7
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
BLACK,212
SMART ENTRY-2 BUTTON TYPE,BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
SMART ENTRY-2 BUTTON TYPE,GRAPHITE BLACK GF.,223
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
RED MC.CS.,3R1
SMART ENTRY-2 BUTTON TYPE,RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
SMART ENTRY-2 BUTTON TYPE,AMBER CS.,4X2
AMBER CS.,4X2
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLAZING CARNELIAN CONTRAS,4Y1
SMART ENTRY-2 BUTTON TYPE,BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
SMART ENTRY-2 BUTTON TYPE,TERRANE KHAKI M.M.,6X4
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
SMART ENTRY-2 BUTTON TYPE,CELESTIAL BLUE GF.,8Y6
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),CELESTIAL BLUE GF.,8Y6
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
SMART ENTRY-2 BUTTON TYPE,SONIC QUARTZ,085
SONIC QUARTZ,085
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
WHITE NOVA GF.,083
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
SMART ENTRY-2 BUTTON TYPE,MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
SMART ENTRY-2 BUTTON TYPE,SONIC TITANIUM,1J7
BLACK,212
SMART ENTRY-2 BUTTON TYPE,BLACK,212
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
STARLIGHT BLACK GF.,217
SMART ENTRY-2 BUTTON TYPE,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
RED MC.CS.,3R1
SMART ENTRY-2 BUTTON TYPE,RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
AMBER CS.,4X2
SMART ENTRY-2 BUTTON TYPE,AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLAZING CARNELIAN CONTRAS,4Y1
SMART ENTRY-2 BUTTON TYPE,BLAZING CARNELIAN CONTRAS,4Y1
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),TERRANE KHAKI M.M.,6X4
TERRANE KHAKI M.M.,6X4
SMART ENTRY-2 BUTTON TYPE,TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),CELESTIAL BLUE GF.,8Y6
CELESTIAL BLUE GF.,8Y6
SMART ENTRY-2 BUTTON TYPE,CELESTIAL BLUE GF.,8Y6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
