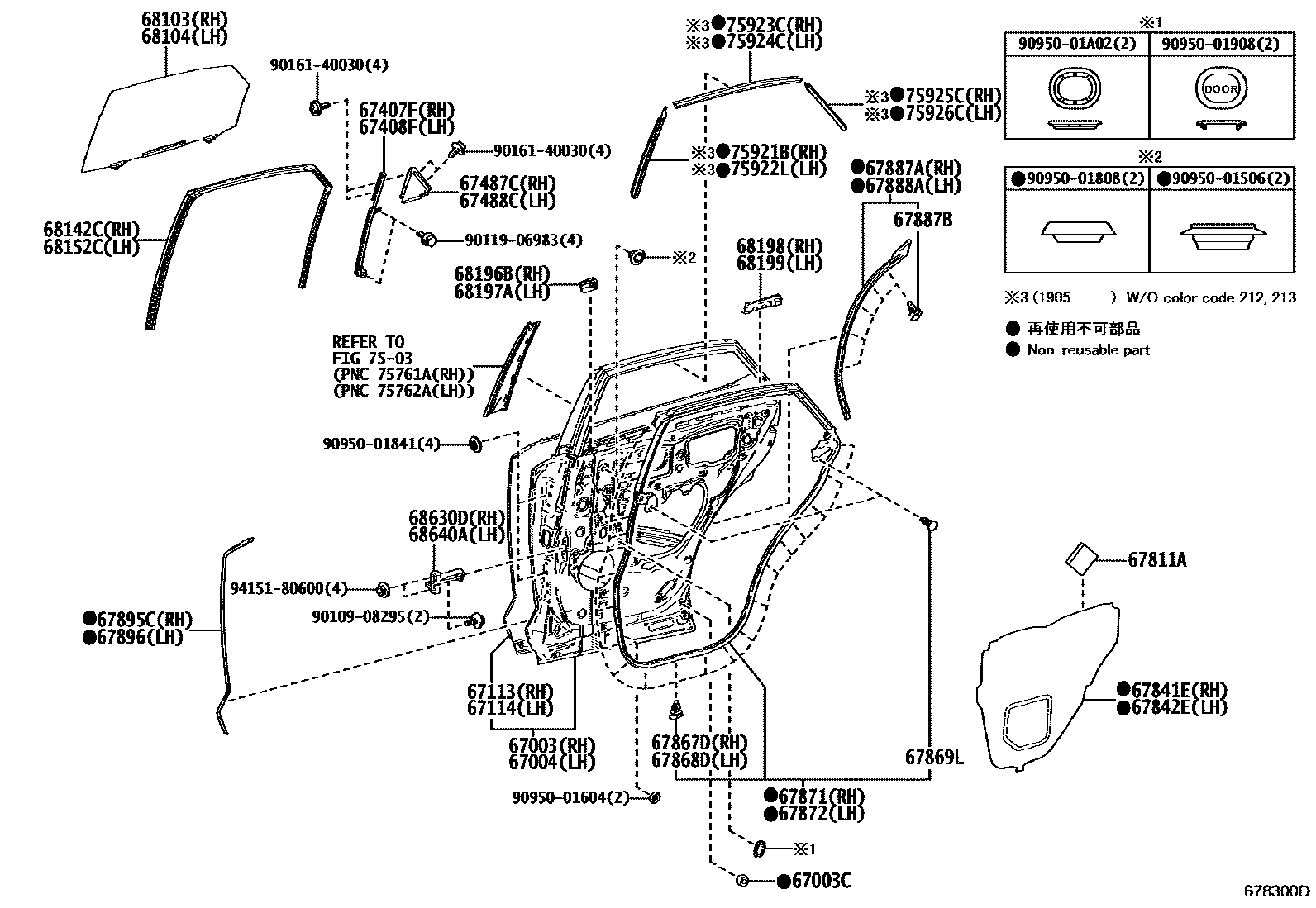

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67811APAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
MALAYSIA SPEC
HONG KONG SPEC
BRUNEI SPEC
SINGAPORE SPEC
MACAO SPEC
68104GLASS SUB-ASSY, REAR DOOR, LH
SINGAPORE SPEC
MALAYSIA SPEC
MACAO SPEC
HONG KONG SPEC
BRUNEI SPEC
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75921BTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922LTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75923CTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924CTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
75925CTAPE, BLACK OUT, NO.3 RH
0 OR 1PIECE,REF.ILL.
75926CTAPE, BLACK OUT, NO.3 LH
0 OR 1PIECE,REF.ILL.
9010908295
main90109-08295
9011906983
main90119-06983
9016140030
main90161-40030
9095001506
main90950-01506
9095001604
main90950-01604
9095001808
main90950-01808
9095001841
main90950-01841
9095001908
main90950-01908
9095001A02
main90950-01A02
9415180600
main94151-80600
49 parts on this diagram · 2 diagrams in section
