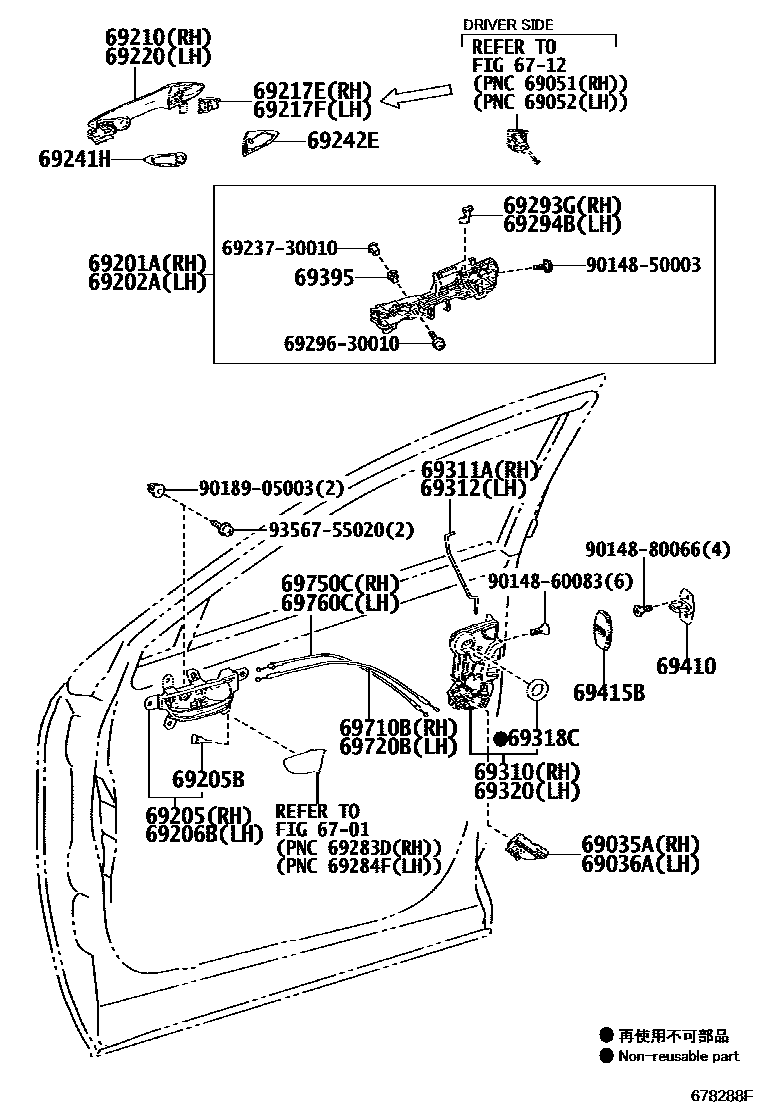

FRONT DOOR LOCK & HANDLE
6701
6712
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#
BLACK,TRIM04,05,06,07,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,30,31,32,33,4#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#
BLACK,TRIM04,05,06,07,1#,2#,3#,5#
BLACK,TRIM0#,2#,30,31,32,33,4#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
sub69210-48110
SMART ENTRY-2 BUTTON TYPE,MERCURY GRAY MC.,1H9
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
sub69210-48110
SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),STARLIGHT BLACK GF.,217
sub69210-48110
SMART ENTRY-2 BUTTON TYPE,STARLIGHT BLACK GF.,217
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),FIRE AGATE M.M.,4V3
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLAZING CARNELIAN CONTRAS,4Y1
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),TERRANE KHAKI M.M.,6X4
sub69210-48110
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLUE ME.,8U1
sub69210-48110
SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),METEOR BLUE M.M.,8W3
sub69210-48110
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),CELESTIAL BLUE GF.,8Y6
sub69210-48110
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,BLACK,212
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,GRAPHITE BLACK GF.,223
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,STARLIGHT BLACK GF.,217
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),STARLIGHT BLACK GF.,217
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),FIRE AGATE M.M.,4V3
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,FIRE AGATE M.M.,4V3
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLAZING CARNELIAN CONTRAS,4Y1
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),TERRANE KHAKI M.M.,6X4
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,TERRANE KHAKI M.M.,6X4
sub69220-48070
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLUE ME.,8U1
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),METEOR BLUE M.M.,8W3
sub69220-48070
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),CELESTIAL BLUE GF.,8Y6
sub69220-48070
SMART ENTRY-2 BUTTON TYPE,CELESTIAL BLUE GF.,8Y6
sub69220-48070
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
36 parts on this diagram · 1 diagram in section
