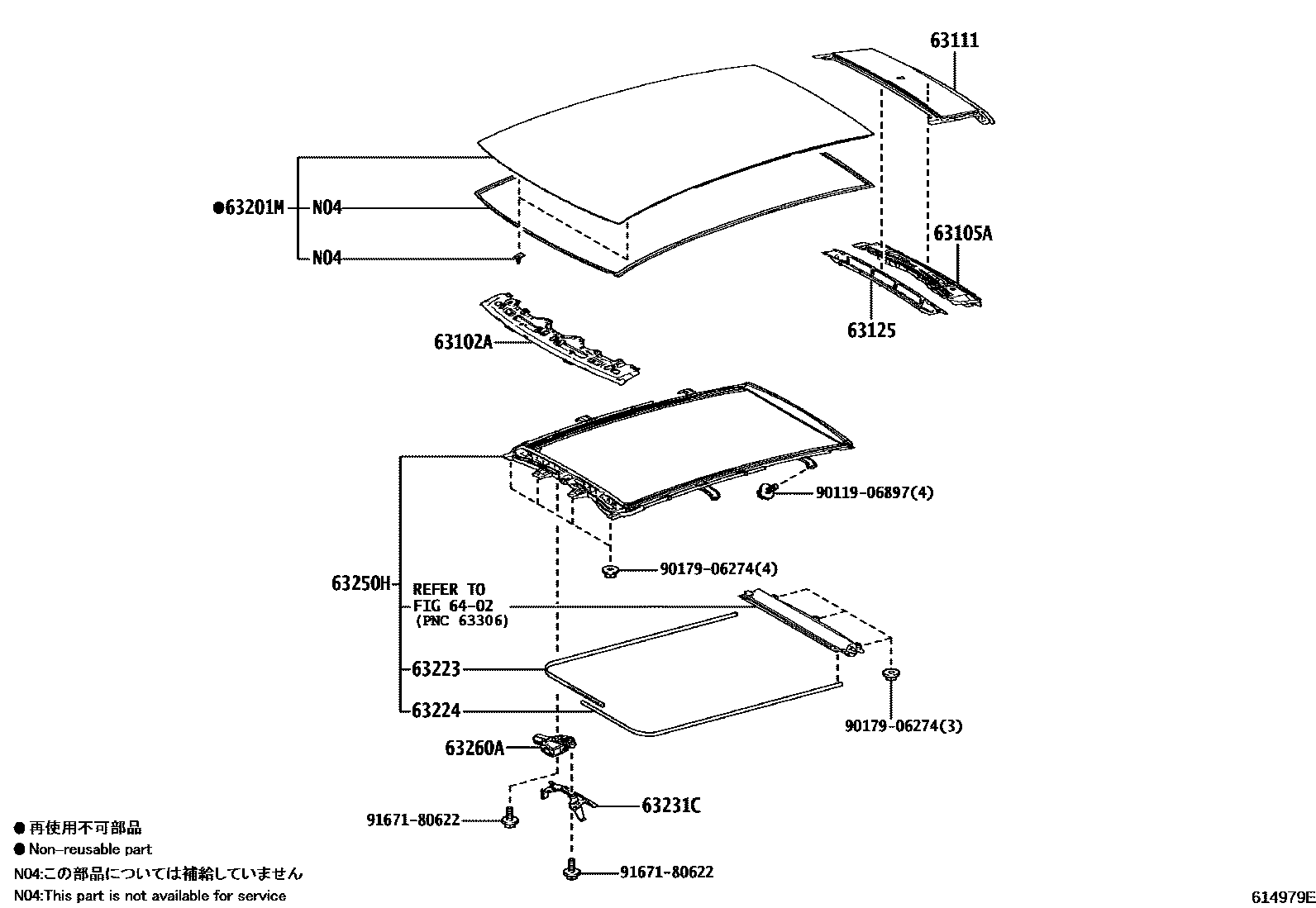

ROOF PANEL & BACK WINDOW GLASS

0001 1PANORAMIC ROOF 0002 1PANEL(NORMAL OR MOON ROOF) 0003 1HOUSING(MOON ROOF) 0004 1ROOF RAIL(NORMAL OR MOON ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-78900iAGZ1#..CHI201407-202004

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-78010iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201407-202004

main63105-78011iAGZ1#,AYZ1#,ZGZ1#201705-201707

63111PANEL, ROOF

main63111-78030iAGZ1#,AYZ1#,ZGZ1#..ARL,CHI201410-201709

main63111-78040iAGZ15,AYZ15..ARL201709

SINGAPORE SPEC

main63111-78040iAGZ15,AYZ15..ARL201709

MALAYSIA SPEC

main63111-78040iAGZ15,AYZ15..ARL201709

SOUTH AFRICA SPEC

main63111-78040iAGZ15,AYZ15..ARL201709

BRUNEI SPEC

main63111-78040iAGZ15,AYZ15..ARL201709

INDONESIA SPEC

main63111-78040iAGZ1#,AYZ1#..ARL,GCC,GEN201407-201709

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-78010

63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1

63223CABLE, SLIDING ROOF DRIVE, RH

main63224-78010

63224CABLE, SLIDING ROOF DRIVE, LH

main63224-78010

63231CBRACKET, ROOM LAMP

63250HHOUSING ASSY, SUNSHADE

63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE

6402

9011906897

main90119-06897

9017906274

main90179-06274

9167180622

main91671-80622

14 parts on this diagram · 4 diagrams in section
