SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211CRAIL, ROOF SIDE, RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
sub61601-78021
IRAQ SPEC&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61783DPAD, REAR WHEEL OPENING EXTENSION, NO.1
62151DPAD, COWL SIDE SILENCER
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
62621KPAD, QUARTER WHEEL HOUSE, INNER
65637LINER, REAR WHEEL HOUSE, RH
9010508460
main90105-08460
9046706121
main90467-06121
9155380820
main91553-80820
9415180800
main94151-80800
9415180840
main94151-80840

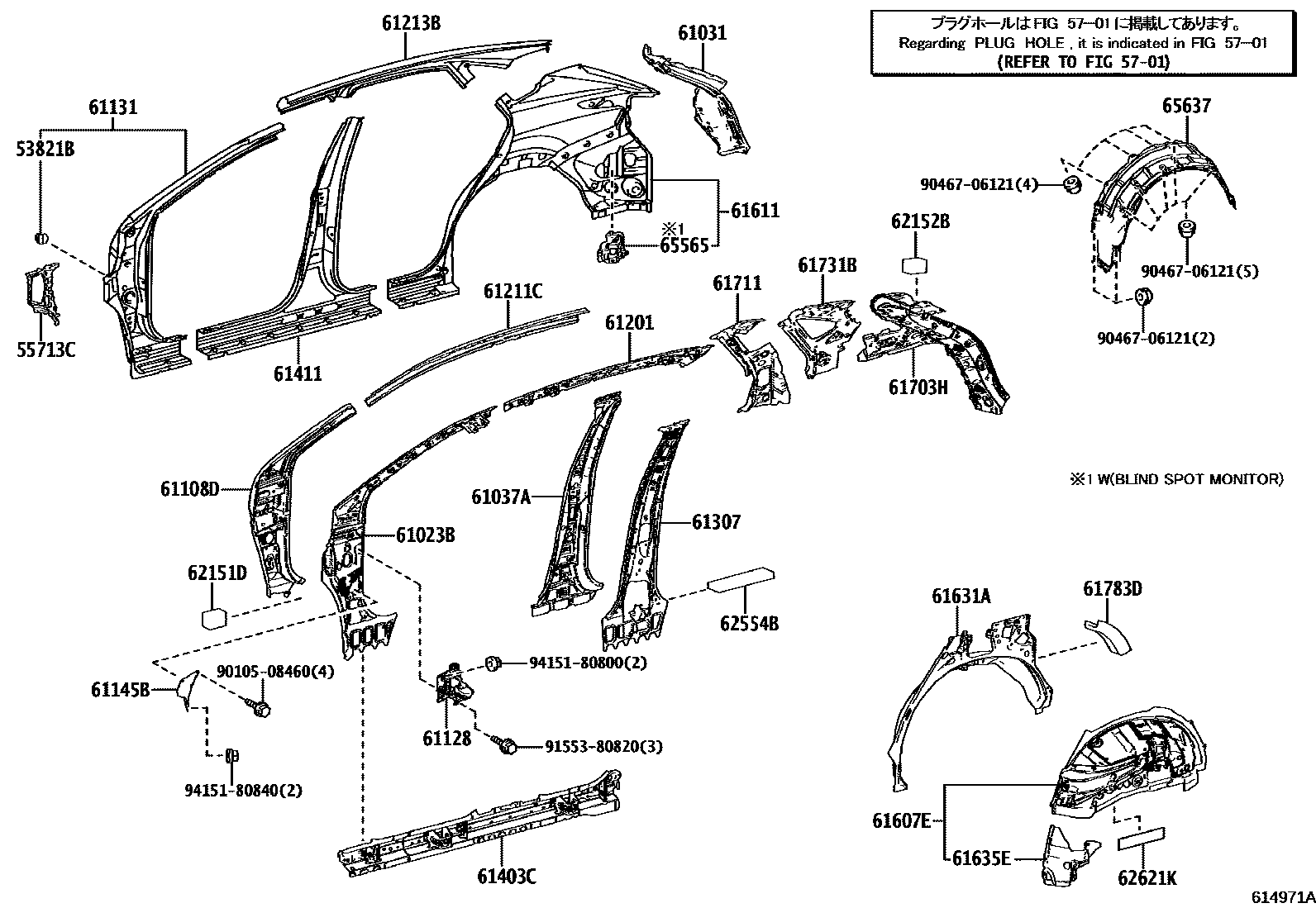

35 parts on this diagram · 2 diagrams in section
