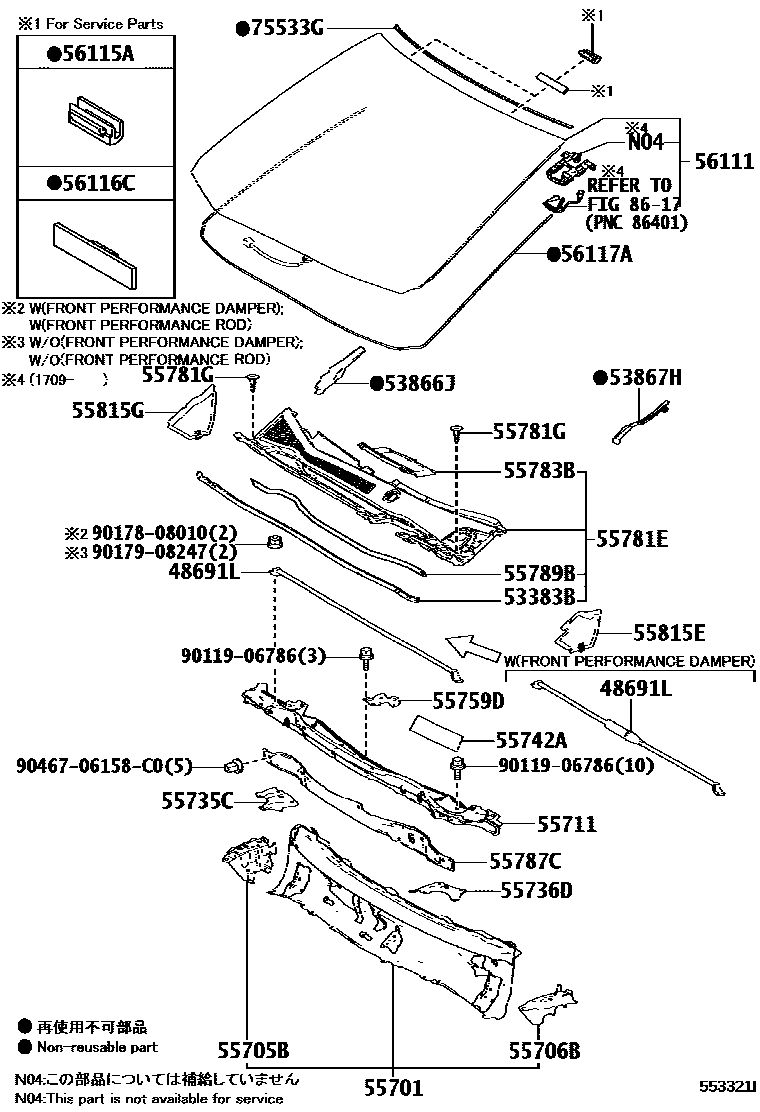

COWL PANEL & WINDSHIELD GLASS
48691LDAMPER OR ROD, FRONT PERFORMANCE
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55759DBRACKET, COWL TOP INNER STAY MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
sub90467-A0016
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55815ESEAL, FRONT VENTILATOR, NO.1
55815GSEAL, FRONT VENTILATOR, NO.2
56111GLASS, WINDSHIELD
INTERMITTENT WIPER-WITH(RAIN SENSOR)
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)
INTERMITTENT WIPER-WITH(RAIN SENSOR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2943,PRE-COLLISION SYSTEM-WITH
*D,L=2943,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2943,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD-UP DISPLAY-WITH
*D,L=2943,PRE-COLLISION SYSTEM-WITH&HEAD-UP DISPLAY-WITH
*D,L=2943,INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2943,HEAD-UP DISPLAY-WITH
*D,L=2943
*D,L=2943,COLD AREA SPEC
*D,L=2943,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH
*D,L=2943,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2943,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&HEAD-UP DISPLAY-WITH
*D,L=2943,COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&INSIDE REAR VIEW MIRROR-*247
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&INSIDE REAR VIEW MIRROR-*247&HEAD UP DISPLAY-WITH&LANE DEPARTURE ALERT SYSTEM-WITH(BUZZER & STEERING WHEEL ASSIST)
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&INSIDE REAR VIEW MIRROR-*247&LANE DEPARTURE ALERT SYSTEM-WITH(BUZZER & STEERING WHEEL ASSIST)
*D,L=2943,INSIDE REAR VIEW MIRROR-*247
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
9017808010
9017908247
9046706158C0
main90467-06158C0
29 parts on this diagram · 2 diagrams in section
