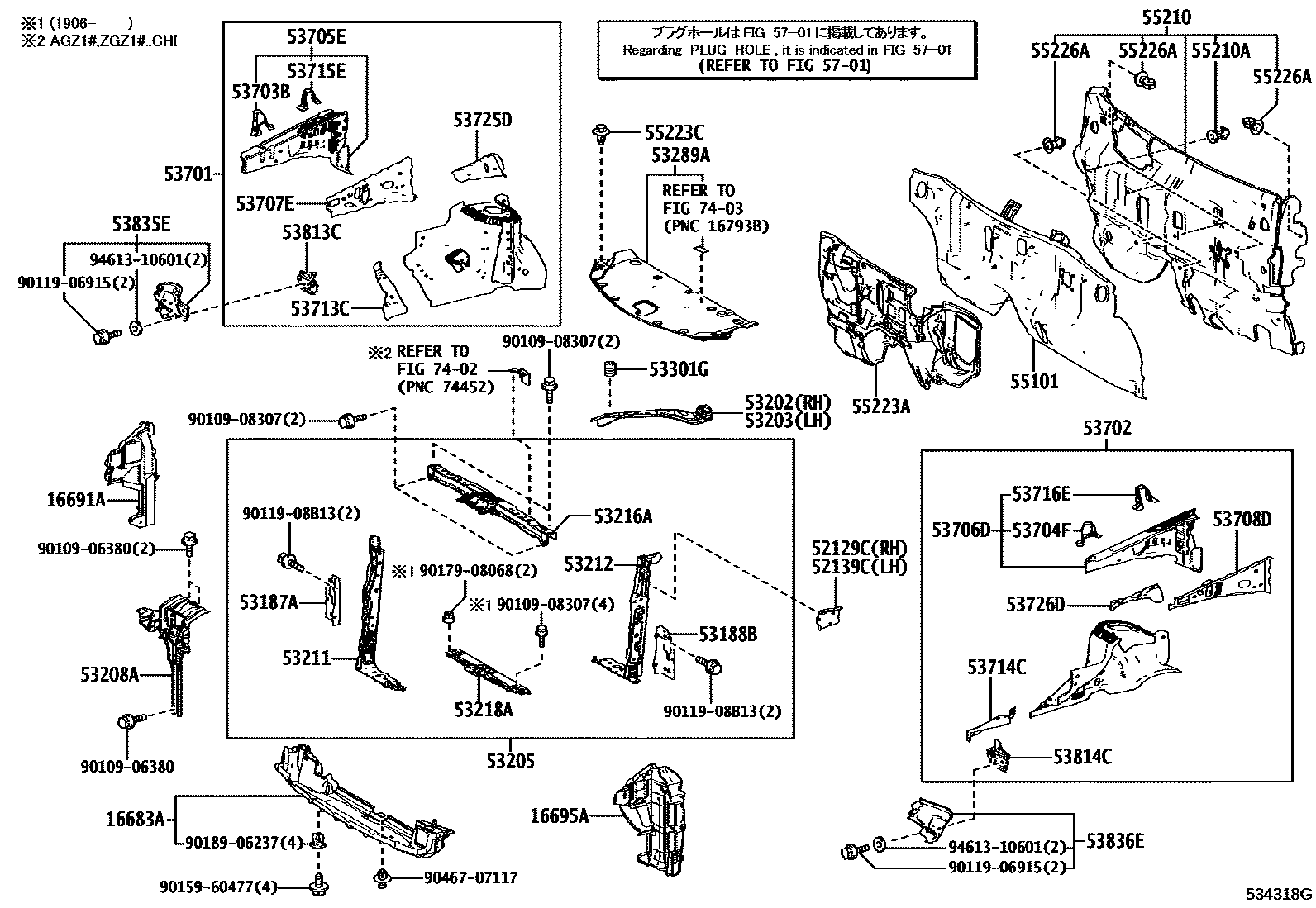

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-36030i8ARFTS..AGZ1#..ARL,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1#¥8,400201407-201709

main16683-36040i8ARFTS..AGZ1#..CHI,GCC201412-201709

main16683-36080i8ARFTS..AGZ1#..ARL,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1#¥6,200201709

main16683-36090i8ARFTS..AGZ1#..CHI201709-202004

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-36030i8ARFTS..AGZ1#¥4,960201412-201709

main16691-36040i2ARFXE..AYZ1#¥5,100201407-201709

main16691-36150i8ARFTS..AGZ1#..CHI¥4,240201709-202004

main16691-36160i2ARFXE..AYZ1#¥4,240201709

main16691-37030i3ZRFAE..ZGZ1#201412-201709

main16691-37080i3ZRFAE..ZGZ1#201709

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-36030i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥5,100201407-201709

main16695-36150i2ARFXE..AYZ1#;8ARFTS..AGZ1#..ARL,GCC,GEN¥4,240201709-202004

main16695-37020i3ZRFAE..ZGZ1#201412-201709

main16695-37040i3ZRFAE..ZGZ1#201709

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-78010iAGZ1#,AYZ1#,ZGZ1#¥1,400201407-202004

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-78010iAGZ1#,AYZ1#,ZGZ1#¥1,120201407-202004

53187ASTAY, RADIATOR SUPPORT, RH

main53187-42010iAGZ1#,AYZ1#,ZGZ1#¥1,720201407-202004

53188BSTAY, RADIATOR SUPPORT, LH

main53188-42010iAGZ1#,AYZ1#,ZGZ1#¥1,720201407-202004

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-78010iAGZ1#,AYZ1#,ZGZ1#¥4,690201407-202004

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-78010iAGZ1#,AYZ1#,ZGZ1#¥4,690201407-202004

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-78010iAGZ1#,AYZ1#,ZGZ1#¥33,300201407-202004

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-78010iAGZ1#,AYZ1#,ZGZ1#¥12,000201407-202004

53211SUPPORT, RADIATOR, RH

main53211-42904iAGZ1#,AYZ1#,ZGZ1#¥9,100201407-202004

53212SUPPORT, RADIATOR, LH

main53212-42904iAGZ1#,AYZ1#,ZGZ1#¥9,100201407-202004

53216ASUPPORT, RADIATOR, UPPER

main53210-78010iAGZ1#,AYZ1#,ZGZ1#¥11,200201407-202004

53218ASUPPORT, RADIATOR, LOWER

main53209-78010iAGZ1#,AYZ1#,ZGZ1#¥1,500201407-202004

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-78010iAGZ1#,AYZ1#,ZGZ1#¥8,600201407-201604

sub53289-78011¥5,900

main53289-78011iAGZ1#,AYZ1#,ZGZ1#¥5,900201605-202004

53301GCUSHION, HOOD BUMPER

main90541-15111iAGZ1#,AYZ1#,ZGZ1#¥330201407-202004

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-78010iAGZ1#,AYZ1#,ZGZ1#¥36,500201407-201812

sub53701-78011¥30,400

main53701-78011iAGZ1#..CHI¥30,400201901-202004

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-78010iAGZ1#,AYZ1#,ZGZ1#¥36,500201407-201812

sub53702-78011¥30,400

main53702-78011iAGZ1#..CHI¥30,400201901-202004

53703BRETAINER SUB-ASSY, FENDER APRON, RH

main53703-78020iAGZ1#,AYZ1#,ZGZ1#¥840201407-202004

53704FRETAINER SUB-ASSY, FENDER APRON, LH

main53704-78020iAGZ1#..CHI¥840201407-202004

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-78020iAGZ1#..CHI¥4,850201407-202004

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-78020iAGZ1#,AYZ1#,ZGZ1#¥4,850201407-202004

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42010iAGZ1#,AYZ1#,ZGZ1#¥3,560201407-202004

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42010iAGZ1#,AYZ1#,ZGZ1#¥3,560201407-202004

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-42040iAGZ1#,AYZ1#,ZGZ1#¥1,390201407-202004

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-42041iAGZ1#,AYZ1#,ZGZ1#¥1,350201407-202004

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-78020iAGZ1#,AYZ1#,ZGZ1#¥500201407-202004

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-78020iAGZ1#,AYZ1#,ZGZ1#¥500201407-202004

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-42010iAGZ1#,AYZ1#,ZGZ1#¥1,390201407-202004

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-42010iAGZ1#,AYZ1#,ZGZ1#¥1,390201407-202004

53813CEXTENSION, FRONT FENDER, RH

main53813-42030iAGZ1#,AYZ1#,ZGZ1#¥1,170201407-202004

53814CEXTENSION, FRONT FENDER, LH

main53814-42030iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN¥1,280201407-202004

53835EBRACE, FRONT FENDER TO APRON, RH

main53803-78010iAGZ1#..CHI¥2,710201407-202004

53836EBRACE, FRONT FENDER TO APRON, LH

main53804-78010iAGZ1#,AYZ1#,ZGZ1#¥2,710201407-202004

55101PANEL SUB-ASSY, DASH

main55101-78010iAGZ1#,AYZ1#,ZGZ1#..LHD¥21,900201407-202004

main55101-78020iAGZ1#,AYZ1#..ARL¥22,400201407-201709

55210INSULATOR ASSY, DASH PANEL

main55210-78030iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201512

sub55210-78031

main55210-78031iAGZ1#..CHI201601-202004

main55210-78040iAGZ1#,AYZ1#..ARL¥14,900201407-201709

main55210-78060iAGZ1#,AYZ15..GCC,GEN201906

55210ACLIP

main90467-11122iAGZ1#,AYZ1#,ZGZ1#¥100201407-202004

55223AINSULATOR, DASH PANEL, OUTER

main55223-48190iAGZ1#,AYZ1#..ARL¥6,800201407-201709

main55223-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201512

sub55223-78011

main55223-78011iAGZ1#,AYZ1#,ZGZ1#..LHD201601-201902

sub55223-78020

main55223-78020iAGZ1#..CHI201902-202004

55223CCLIP

main90467-10216iAGZ1#,AYZ1#,ZGZ1#¥100201407-201709

55226ACLIP

main90467-13079iAGZ1#,AYZ1#,ZGZ1#¥120201407-202004

5701

7402

7403

9010906380

main90109-06380¥60

9010908307

main90109-08307¥80

9011906915

main90119-06915¥60

9011908B13

main90119-08B13¥90

9015960477

main90159-60477¥70

9017908068

main90179-08068¥100

9018906237

main90189-06237¥100

9046707117

main90467-07117¥90

9461310601

main94613-10601¥70

53 parts on this diagram · 2 diagrams in section
