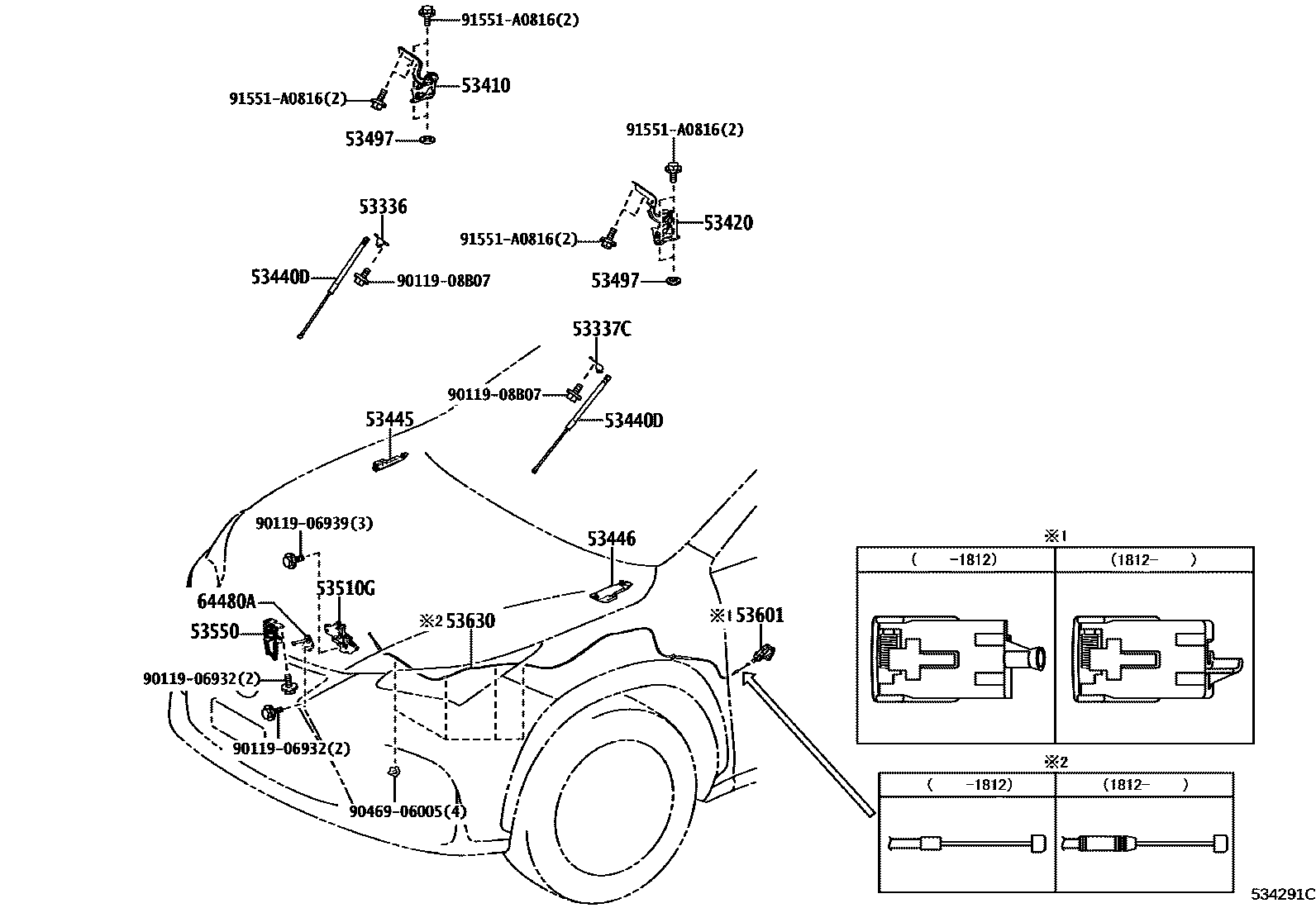

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-75010iAGZ1#..CHI201407-202004

53337CBRACKET, HOOD STAY, LH

main53337-75010iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201407-202004

53410HINGE ASSY, HOOD, RH

main53410-78030iAGZ1#..CHI201407-202004

53420HINGE ASSY, HOOD, LH

main53420-78030iAGZ1#,AYZ1#,ZGZ1#201407-202004

53440DSUPPORT ASSY, HOOD

main53440-0W280iAGZ1#..CHI201407-202004

53445COVER, HOOD HINGE, RH

main53445-78010iAGZ1#..CHI201407-202004

53446COVER, HOOD HINGE, LH

main53446-78010iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201407-202004

53497PAD, HOOD HINGE, NO.1

main53497-20070iAGZ1#,AYZ1#,ZGZ1#201407-202004

T=2.0,PAD T=2.0

main53497-42010iAGZ1#..CHI201407-202004

T=0.5,PAD T=1.0

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-78010iAGZ1#,AYZ1#,ZGZ1#201407-201903

sub53510-78040

main53510-78040iAGZ1#,AYZ1#,ZGZ1#..CHI201903-201911

sub53510-78041

main53510-78041iAGZ1#,AYZ1#,ZGZ1#201912

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-78010iAGZ1#,AYZ1#,ZGZ1#201407-202004

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iAGZ1#,AYZ1#201407-201701

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub53601-30090

main53601-30090-C0iZGZ1#201412-201701

BLACK,TRIM0#,1#,2#,3#,5#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM0#,2#,3#,4#,5#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM0#,2#,3#,4#,5#,9#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM0#,1#,2#,3#,5#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM1#,2#,3#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM0#,2#,3#,5#,9#

sub53601-30090

main53601-30090-C1iAYZ10..CHI201701-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub53601-30090

main53601-30090-C1iAYZ10,ZGZ1#..CHI201709-201812

BLACK,TRIM0#,2#,3#,4#,6#,7#

sub53601-30090

main53601-30090-C1iAYZ10,ZGZ1#..CHI201709-201812

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#

sub53601-30090

main53601-30110-C0iAGZ1#..CHI201812-202004

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#

main53601-30110-C0iAYZ10,ZGZ1#..CHI201812

BLACK,TRIM0#,2#,3#,4#,6#,7#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-78010iAGZ1#,AYZ1#..ARL201407-201812

main53630-78011iAGZ1#,AYZ1#..ARL201812

main53630-78020iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201812

main53630-78021iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201812-202004

64480ASTRIKER ASSY, ENGINE HOOD LOCK

main64480-78010iAGZ1#,AYZ1#,ZGZ1#201407-202004

9011906932

main90119-06932

9011906939

main90119-06939

9011908B07

main90119-08B07

9046906005

main90469-06005

91551A0816

main91551-A0816

18 parts on this diagram · 2 diagrams in section
