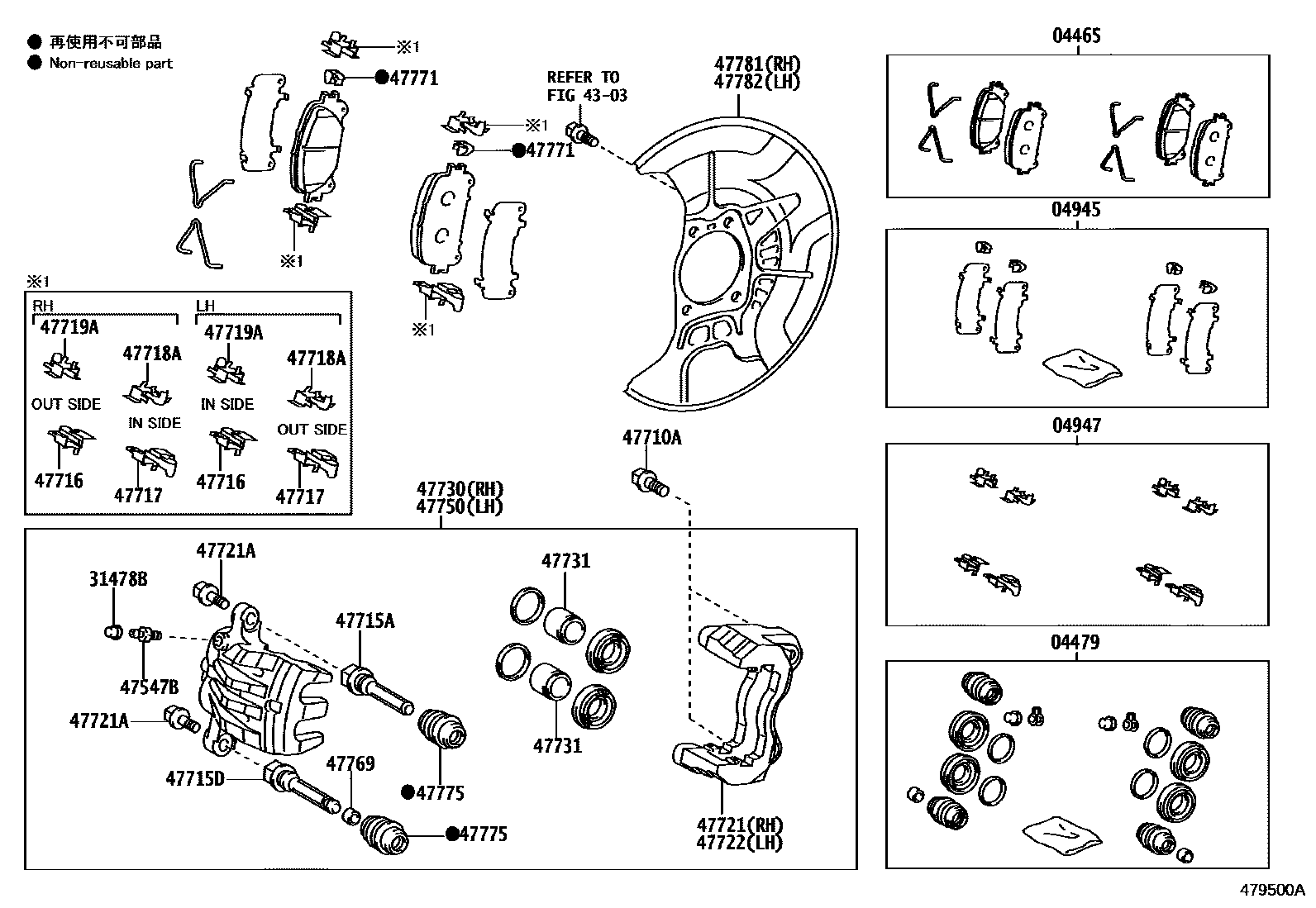

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48150iAGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN¥11,000201407-201905

MARK ADVICS PV565H

main04465-48170iAGZ1#,AYZ15..GCC¥11,500201407-202109

MARK TEXTAR T4146

main04465-78010iAGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN¥10,700201905-202109

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48150iAGZ1#,AYZ1#,ZGZ1#¥2,700201407-202004

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN¥1,250201407-202004

main04945-48160iAGZ1#,AYZ15..GCC¥1,960201407-201709

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN¥1,670201407-202004

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN¥160201407-202004

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAGZ1#,AYZ1#,ZGZ1#¥160201407-202004

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAGZ1#,AYZ1#,ZGZ1#¥160201407-202004

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-48150iAGZ1#,AYZ1#,ZGZ1#¥230201407-202004

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48150iAGZ1#,AYZ1#,ZGZ1#¥230201407-202004

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iAGZ1#,AYZ1#,ZGZ1#¥220201407-202002

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iAGZ1#,AYZ1#,ZGZ1#¥220201407-202002

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-48150iAGZ1#,AYZ1#,ZGZ1#¥220201407-202002

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-48150iAGZ1#,AYZ1#,ZGZ1#¥220201407-202002

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAGZ1#,AYZ1#,ZGZ1#¥6,700201407-202004

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAGZ1#,AYZ1#,ZGZ1#¥80201407-202004

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAGZ1#,AYZ1#,ZGZ1#¥6,700201407-202004

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iAGZ1#,AYZ1#,ZGZ1#¥37,400201407-202004

47731PISTON, FRONT DISC BRAKE

main47731-48150iAGZ1#,AYZ1#,ZGZ1#¥1,060201407-202004

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iAGZ1#,AYZ1#,ZGZ1#¥37,400201407-202004

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iAGZ1#,AYZ1#,ZGZ1#¥200201407-201905

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iAGZ1#,AYZ1#,ZGZ1#¥200201407-201905

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iAGZ1#,AYZ1#,ZGZ1#¥250201407-201905

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42050iAGZ1#,AYZ1#,ZGZ1#¥1,510201407-202004

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42050iAGZ1#,AYZ1#,ZGZ1#¥1,510201407-202004

25 parts on this diagram · 2 diagrams in section
