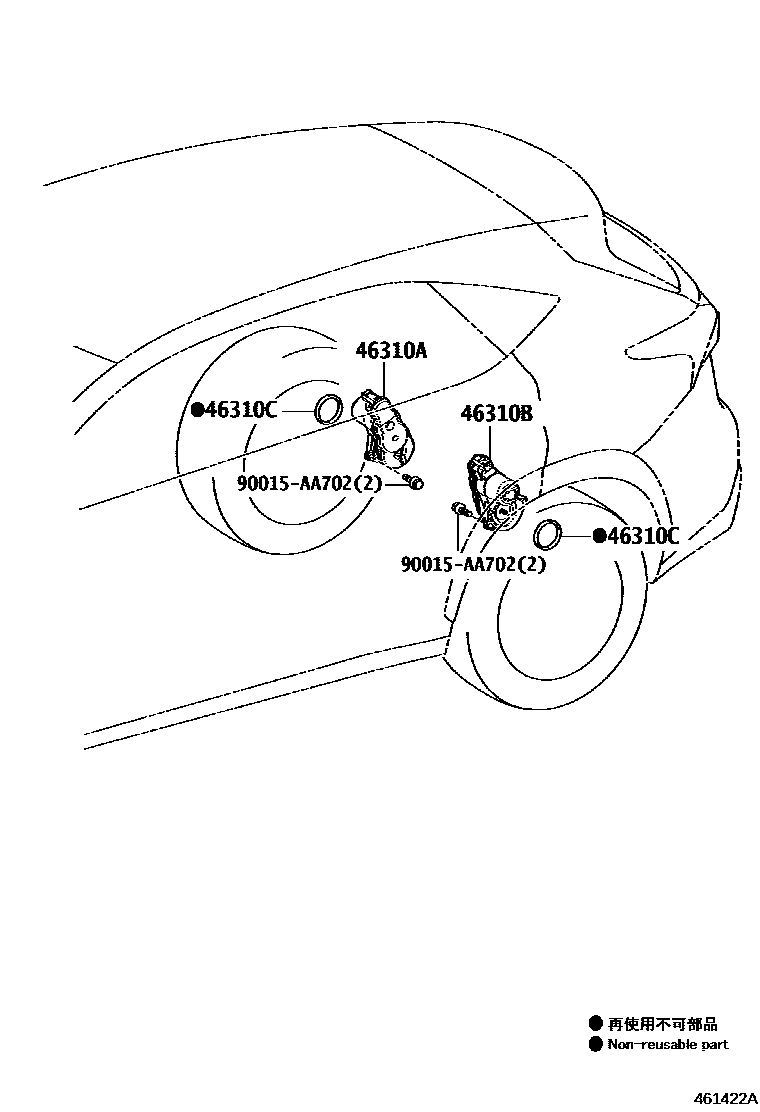

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-78010iAGZ1#,AYZ1#,ZGZ1#¥15,900201407-202004

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-78010iAGZ1#,AYZ1#,ZGZ1#¥15,900201407-202004

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH004iAGZ1#,AYZ1#,ZGZ1#¥230201407-201605

sub90015-AH005¥130

main90015-AH005iAGZ1#,AYZ1#,ZGZ1#¥130201605-202004

90015AA702

main90015-AA702¥270

4 parts on this diagram · 1 diagram in section
