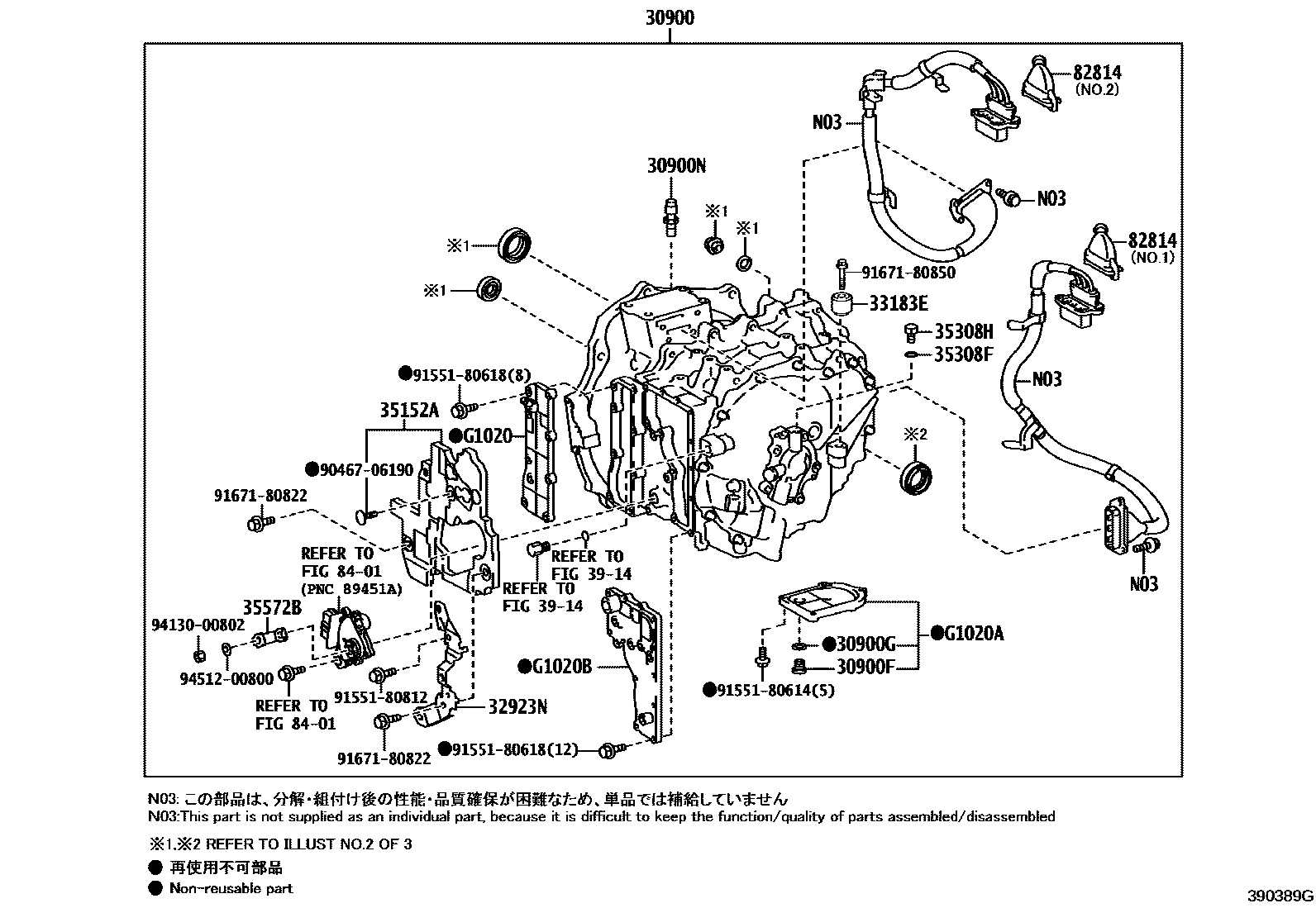

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
32923NCLAMP, OIL COOLER TUBE
33183EDAMPER, DYNAMIC
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
3914
82814BOOT, WIRE HARNESS
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
8401
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G1020BCOVER ASSY, MOTOR WATER JACKET, NO.3
9046706190
9155180614
9155180618
9155180812
9167180822
9167180850
9413000802
9451200800
24 parts on this diagram · 3 diagrams in section
