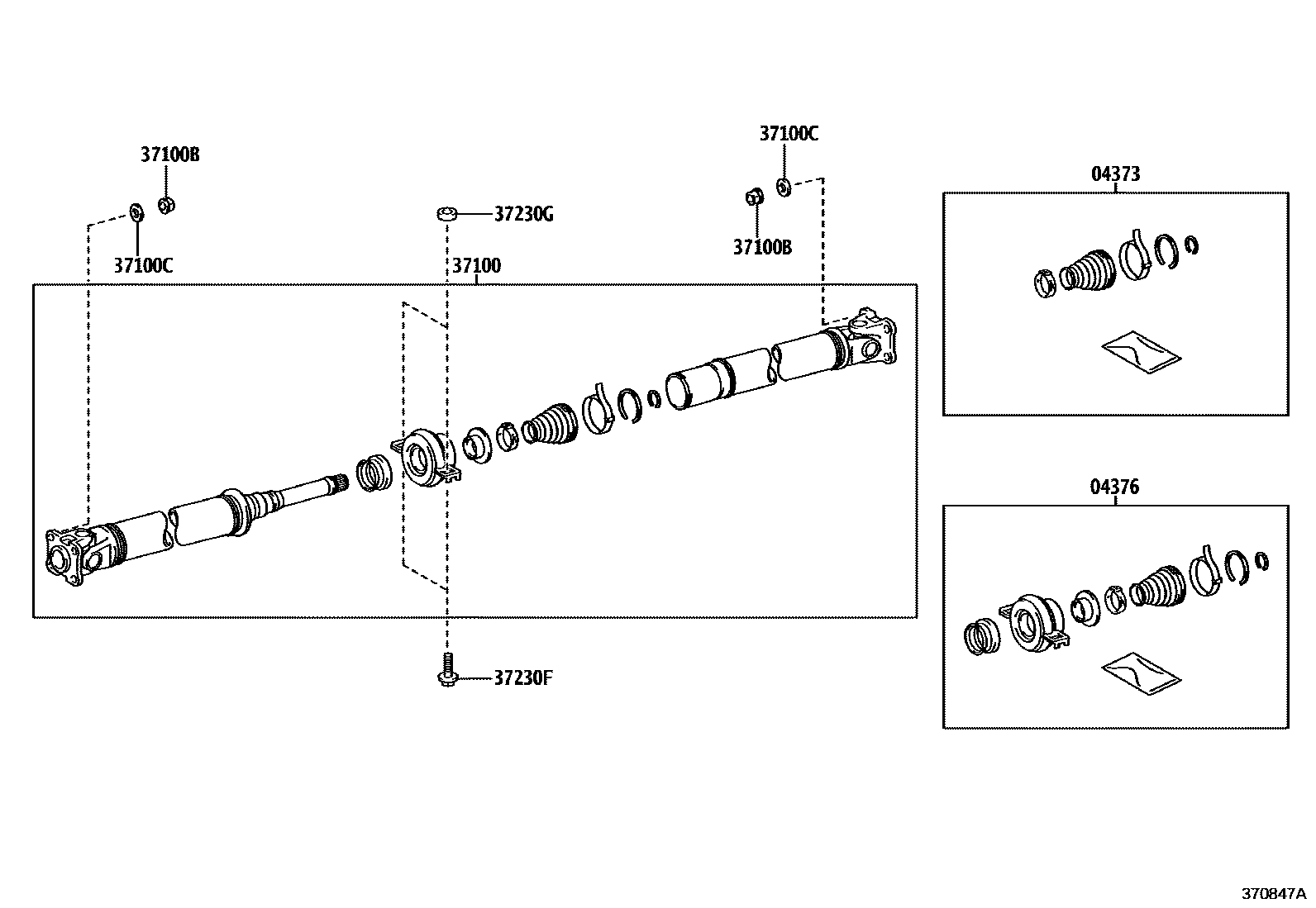

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iAGZ15,ZGZ15201412-202109

04376BEARING KIT, CENTER SUPPORT

main04376-52010iAGZ15,ZGZ15201412-202109

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-42090iAGZ15..CHI201412-202004

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iAGZ15,ZGZ15201412-202004

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097iZGZ15;AGZ15..ARL,GCC,GEN201412-202004

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iAGZ15..CHI201412-202004

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAGZ15..CHI201412-202004

T=4.5

main90201-10083iAGZ15,ZGZ15201412-202004

T=6.5

main90201-10123iAGZ15..CHI201412-202004

T=2.0

7 parts on this diagram · 1 diagram in section
