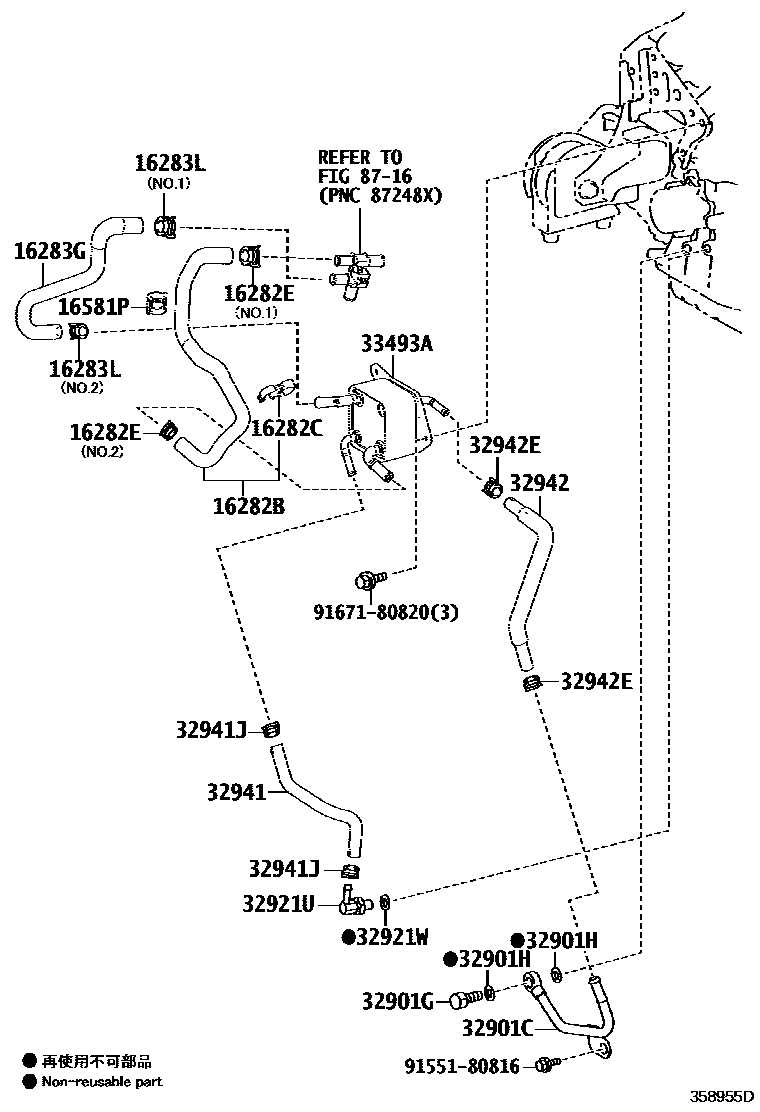

OIL COOLER & TUBE (ATM)
16282BHOSE, WATER BY-PASS, NO.5
16282CCLAMP(FOR WATER BY-PASS HOSE NO.5)
16282ECLIP(FOR WATER BY-PASS HOSE NO.5)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16283GHOSE, WATER BY-PASS, NO.6
16283LCLIP(FOR WATER BY-PASS HOSE NO.6)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16581PCLAMP, HOSE(FOR WATER BY-PASS HOSE NO.6)
32901CUNION SUB-ASSY, OIL COOLER
32901GBOLT, UNION(FOR OIL COOLER)
32901HGASKET(FOR OIL COOLER UNION)
32921UELBOW(FOR OIL COOLER TUBE)
32921WRING, O(FOR OIL COOLER TUBE ELBOW)
32941HOSE, OIL COOLER INLET, NO.1
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942HOSE, OIL COOLER OUTLET, NO.1
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
33493ACOOLER, TRANSMISSION OIL(ATF WARMER)
8716
9155180816
9167180820
19 parts on this diagram · 2 diagrams in section
