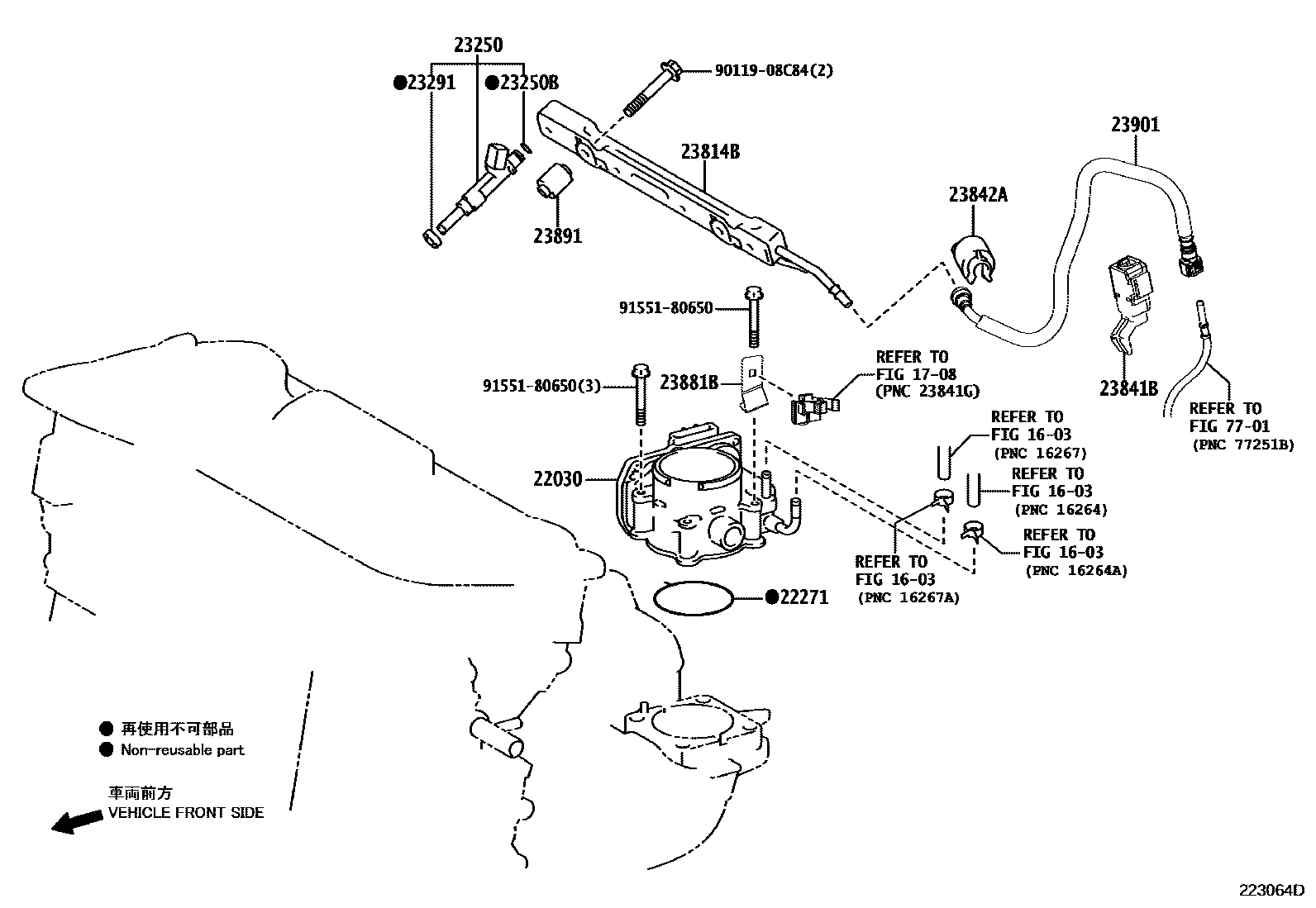

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36020i2ARFXE..AYZ1#¥74,900201407-201709

main22030-36040i8ARFTS..AGZ1#..ARL,GCC,GEN¥58,000201412-202004

22271GASKET, THROTTLE BODY

main22271-36020i2ARFXE..AYZ1#¥0201407-201709

main22271-36040i8ARFTS..AGZ1#¥340201412-202004

main22271-75031i3ZRFAE..ZGZ1#¥250201412-201709

23250INJECTOR ASSY, FUEL

main23209-39175i2ARFXE..AYZ1#..ARL,GCC,GEN¥12,600201407-202004

main23209-39235i3ZRFAE..ZGZ1#¥13,900201412-201709

main23209-39385i2ARFXE..AYZ1#..CHI¥13,900202004

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ARFXE..AYZ1#..CHI¥140201407-201908

main90301-07037i2ARFXE,8ARFTS..AGZ1#,AYZ1#..CHI¥140201908-202004

(J)

main90301-07037i2ARFXE,8ARFTS..AGZ1#,AYZ1#..CHI¥140201908-202004

CHINA ADVANCED CITY SPEC

main90301-C0072i2ARFXE,8ARFTS..AGZ1#,AYZ1#..CHI201908-202004

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3ZRFAE..ZGZ1#¥240201412-201709

TYPE A:REFER ILLUST.

main23291-28020i3ZRFAE..ZGZ1#¥310201412-201709

TYPE B:REFER ILLUST.

main23291-28020i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥310201407-202004

23814BPIPE, FUEL DELIVERY

main23800-36030i8ARFTS..AGZ1#¥25,400201412-202004

sub23800-36040¥15,600

main23814-36050i2ARFXE..AYZ1#¥8,700201407-201709

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-36020i3ZRFAE..ZGZ1#¥0201412-201709

main23841-37080i2ARFXE..AYZ1#¥500201407-201601

sub23841-37081¥310

main23841-37081i2ARFXE..AYZ1#¥310201602-201709

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i3ZRFAE..ZGZ1#¥550202004

main23842-28010i2ARFXE..AYZ1#¥500201407-202004

main23842-38010i8ARFTS..AGZ1#¥640201412-202004

23881BBRACKET, FUEL HOSE

main23881-36040i2ARFXE..AYZ1#¥220201407-201709

main23881-36080i8ARFTS..AGZ1#..CHI¥220201412-202004

23891SPACER, FUEL DELIVERY

main23891-36010i2ARFXE..AYZ1#¥300201407-201709

main23891-36020i8ARFTS..AGZ1#¥300201412-201502

main23891-36030i8ARFTS..AGZ1#..CHI¥350201503-202004

23901TUBE SUB-ASSY, FUEL

main23901-36110i2ARFXE..AYZ1#..ARL,GCC,GEN¥4,020201407-202004

main23901-36140i2ARFXE..AYZ1#..CHI202004

main23901-37220i3ZRFAE..ZGZ1#¥4,020201412-202004

main23901-37250i3ZRFAE..ZGZ1#202004

7701

9011908C84

main90119-08C84¥110

9155180650

main91551-80650¥80

16 parts on this diagram · 4 diagrams in section
