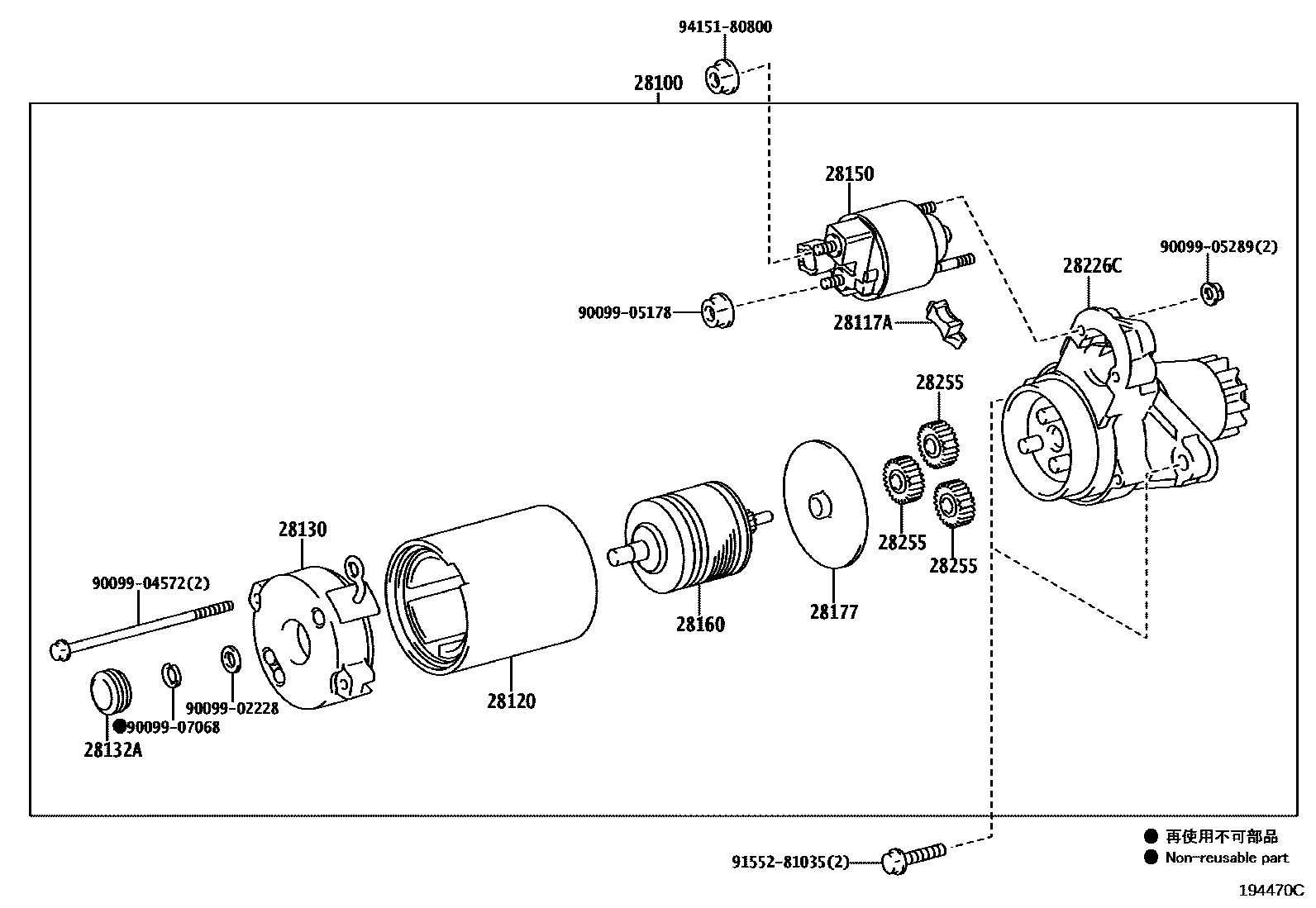

STARTER

0001 112V 1.3KW 0002 112V 1.7KW, W(STOP & START SYS0003 112V 1.7KW

28100STARTER ASSY

main28100-28083i8ARFTS..AGZ1#..GCC,GEN201412-201709

12V 1.3KW,WITHOUT(STOP & START SYSTEM)

main28100-28083i8ARFTS..AGZ15..ARL201412-201709

12V 1.3KW

main28100-36110i8ARFTS..AGZ1#..ARL,CHI201412-201811

12V 1.7KW

main28100-36111i8ARFTS..AGZ1#..CHI201812-202004

12V 1.7KW

main28100-37101i3ZRFAE..ZGZ1#201412-201709

12V 1.7KW

28117ASEAL, RUBBER

main28117-28060i8ARFTS..AGZ1#..GCC,GEN201412-201709

WITHOUT(STOP & START SYSTEM)

28120YOKE ASSY, STARTER

main28120-28080i8ARFTS..AGZ15..ARL201412-201709

WITHOUT(STOP & START SYSTEM)

main28120-36110i8ARFTS..AGZ1#..CHI201412-202004

main28120-37100i3ZRFAE..ZGZ1#201412-201709

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i8ARFTS..AGZ1#..GCC,GEN201412-201709

WITHOUT(STOP & START SYSTEM)

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i8ARFTS..AGZ1#..GCC,GEN201412-201709

WITHOUT(STOP & START SYSTEM)

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i8ARFTS..AGZ1#..GCC,GEN201412-201709

WITHOUT(STOP & START SYSTEM)

28160ARMATURE ASSY, STARTER

main28160-28040i8ARFTS..AGZ15..ARL201412-201709

WITHOUT(STOP & START SYSTEM)

main28160-36110i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#..ARL,CHI201701-202004

main28160-37100i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#..ARL,CHI201503-201701

main28160-38070i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#..ARL,CHI201412-201503

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i8ARFTS..AGZ1#..ARL201412-201709

WITHOUT(STOP & START SYSTEM)

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-28060i8ARFTS..AGZ15..ARL201412-201709

WITHOUT(STOP & START SYSTEM)

main28226-36100i8ARFTS..AGZ1#..CHI201412-202004

28255GEAR, PLANET

main28255-28040i8ARFTS..AGZ1#..GCC,GEN201412-201709

WITHOUT(STOP & START SYSTEM)

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

9155281035

main91552-81035

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
