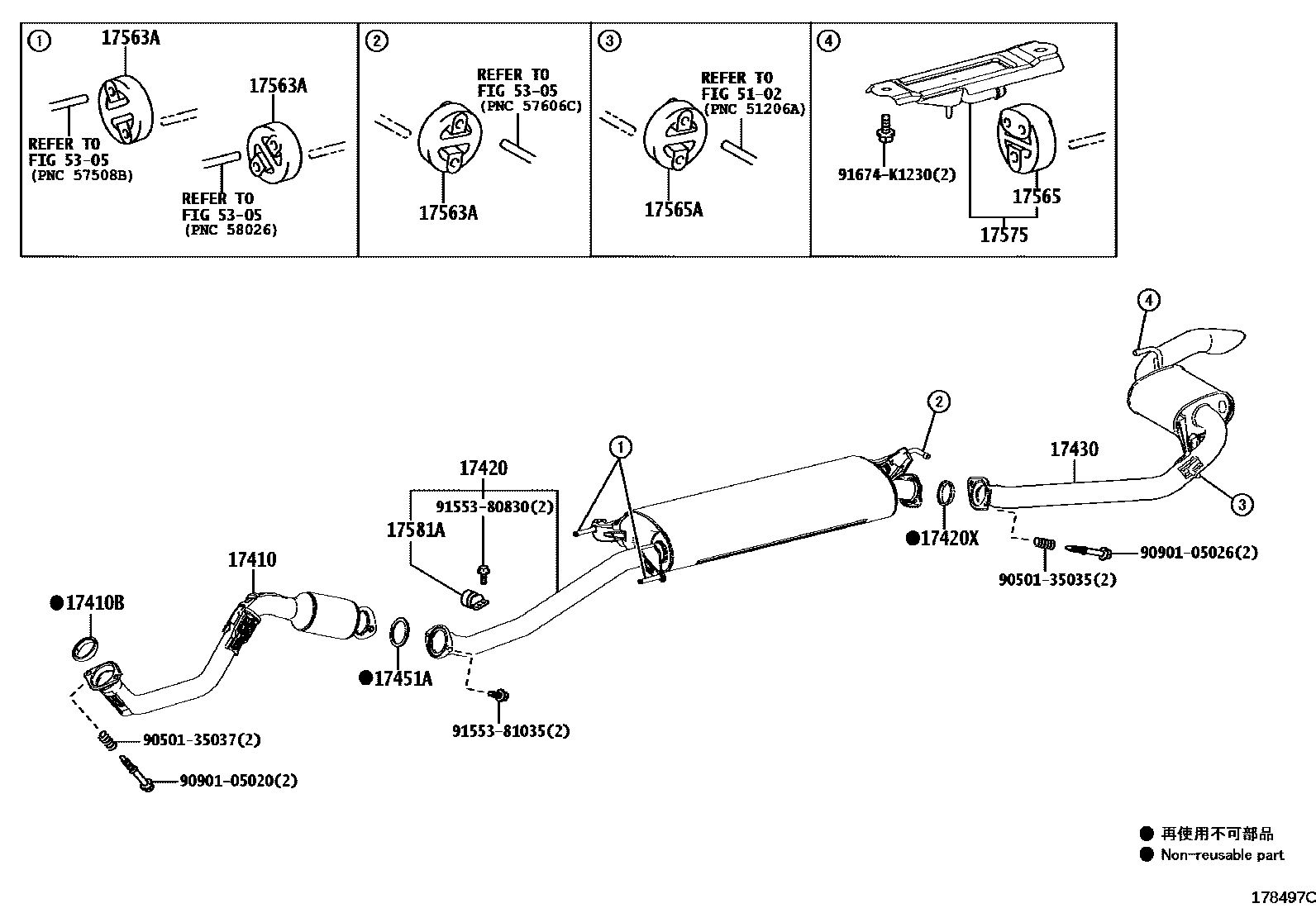

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-36190i2ARFXE..AYZ1#201407-201901

*114=TOYOTA/UF1/Y

sub17410-36191

main17410-36191i2ARFXE..AYZ1#201902

*114=TOYOTA/UF1/Y

main17410-37540i3ZRFAE..ZGZ1#201412-202004

main17410-37C30i3ZRFAE..ZGZ1#202004

17410BGASKET, EXHAUST PIPE

main17451-28040i3ZRFAE..ZGZ1#201702-201709

sub17451-28041

main17451-28070i2ARFXE..AYZ1#;8ARFTS..AGZ1#..ARL,GCC,GEN201407-202004

sub17451-28040

17420PIPE ASSY, EXHAUST, CENTER

main17420-36220i2ARFXE..AYZ1#201407-201709

main17420-36230i8ARFTS..AGZ1#201412-201510

sub17420-36231

main17420-36231i8ARFTS..AGZ15..CHI201511-201702

MARK 13610:SEE ILL.

main17420-36231i8ARFTS..AGZ15..CHI201702-201705

main17420-36330i8ARFTS..AGZ1#..ARL,GCC,GEN201709-202004

main17420-36330i8ARFTS..AGZ1#..ARL,GCC,GEN201702-201709

MARK 13630:SEE ILL.

main17420-37220i3ZRFAE..ZGZ1#201412-202004

*114=TOYOTA/GB3GH6/Y

main17420-37260i3ZRFAE..ZGZ1#202004

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28022i2ARFXE,3ZRFAE..AYZ1#,ZGZ1#201407-201709

main17451-31012i8ARFTS..AGZ1#201412-202004

17430PIPE ASSY, EXHAUST, TAIL

main17430-36340i2ARFXE..AYZ1#201407-201709

main17430-36350i8ARFTS..AGZ1#201412-201612

sub17430-36560

main17430-36560i8ARFTS..AGZ1#..ARL,GCC,GEN201612-201705

MARK 33624:SEE ILL.

main17430-36570i8ARFTS..AGZ1#201709-201907

sub17430-36571

main17430-36571i8ARFTS..AGZ1#..CHI201908-202004

main17430-36590i8ARFTS..AGZ1#..ARL,GCC,GEN201702-201709

MARK 33627:SEE ILL.

main17430-37610i3ZRFAE..ZGZ1#201412-201709

17451GASKET, EXHAUST PIPE

main90917-06072i8ARFTS..AGZ1#201412-202004

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06056i8ARFTS..AGZ1#..ARL,GCC,GEN201412-202004

main90917-06072i2ARFXE..AYZ1#201407-201709

main90917-06078i3ZRFAE..ZGZ1#201412-201709

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-22040i8ARFTS..AGZ1#201407-202004

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31050i8ARFTS..AGZ1#..ARL,GCC,GEN201412-202004

main17565-74320i2ARFXE,3ZRFAE..AYZ1#,ZGZ1#201407-201709

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-31040i2ARFXE,8ARFTS,3ZRFAE..AGZ1#,AYZ1#,ZGZ1#201407-202004

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-36030i2ARFXE,3ZRFAE..AYZ1#,ZGZ1#201407-201709

main17575-36040i8ARFTS..AGZ1#..CHI201412-202004

17581ADAMPER, EXHAUST PIPE

main17581-17020i2ARFXE..AYZ1#201407-201709

main17581-54060i8ARFTS..AGZ15..CHI201412-202004

5102

5305

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155380830

main91553-80830

9155381035

main91553-81035

91674K1230

main91674-K1230

21 parts on this diagram · 3 diagrams in section
