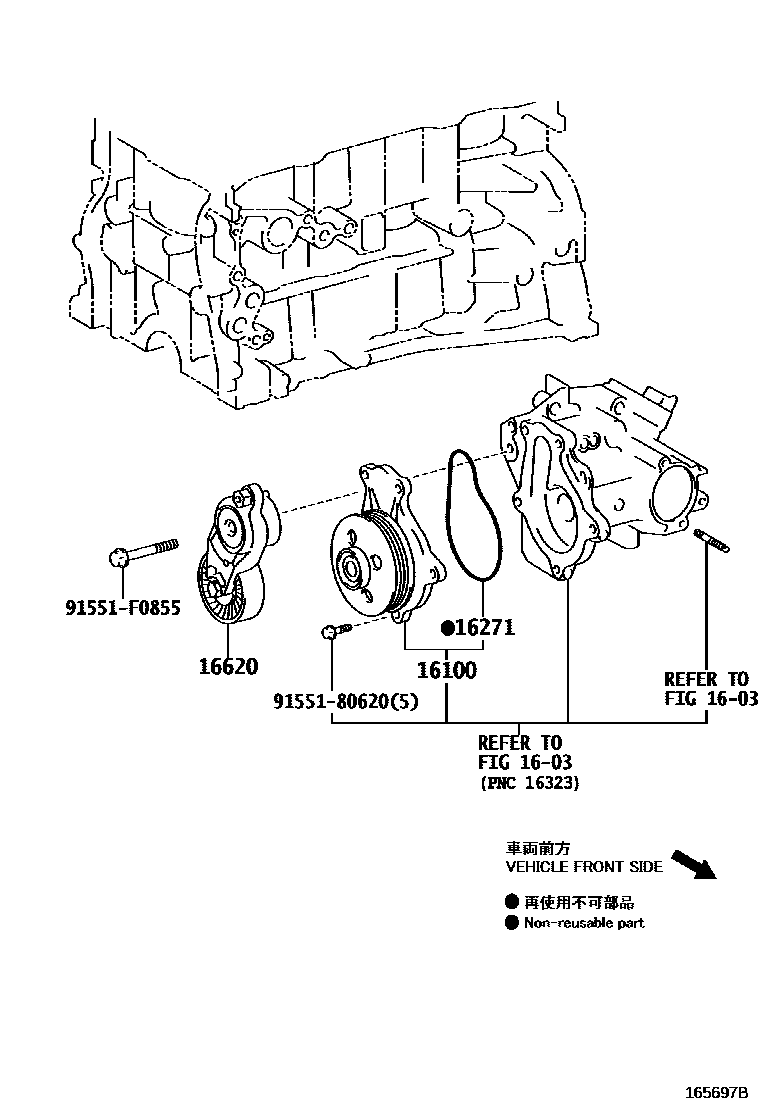

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39565i3ZRFAE..ZGZ1#¥10,500201412-201709

main16100-39575i2ARFXE..AYZ1#¥9,000201407-201709

main16100-39595i8ARFTS..AGZ1#¥9,500201412-202004

16271GASKET, WATER PUMP

main16271-36030i2ARFXE..AYZ1#¥200201407-201709

main16271-36040i8ARFTS..AGZ1#..CHI¥340201412-202004

main16271-37030i3ZRFAE..ZGZ1#¥520201412-201709

16620TENSIONER ASSY, V-RIBBED BELT

main16620-36011i2ARFXE..AYZ1#¥16,100201407-201509

sub16620-36012¥13,400

main16620-36012i2ARFXE..AYZ1#¥13,400201510-201712

sub16620-36013¥10,100

main16620-36013i2ARFXE..AYZ1#¥10,100201801

main16620-37011i3ZRFAE..ZGZ1#¥16,100201412-201506

sub16620-37030¥10,100

main16620-37030i3ZRFAE..ZGZ1#¥10,100201507-201709

9155180620

main91551-80620¥60

91551F0855

main91551-F0855¥100

6 parts on this diagram · 3 diagrams in section
