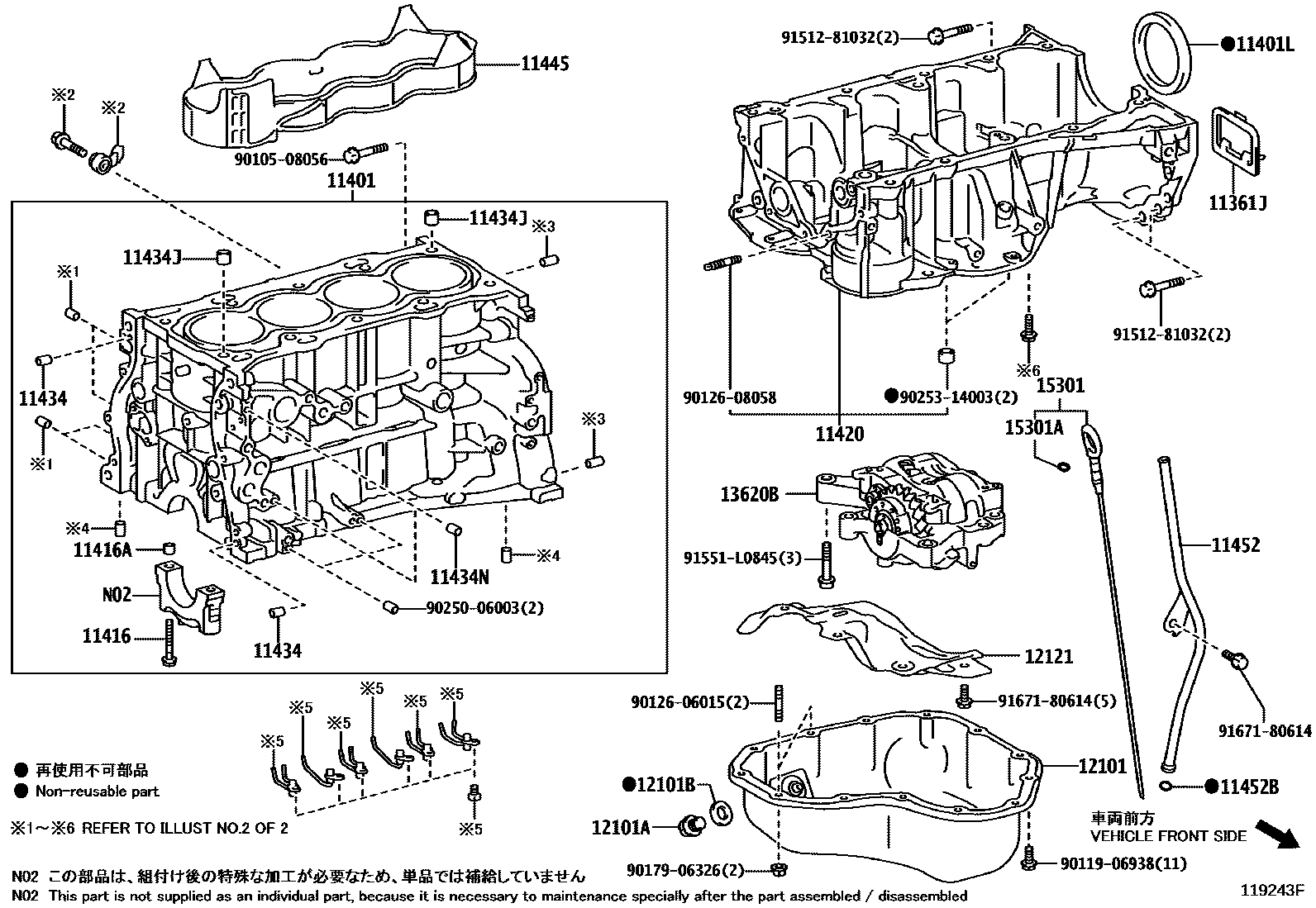

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS 0003 1CYLINDER BLOCK 0004 1FITTING PARTS 1/2 0005 1FITTING PARTS 2/2 0006 1 0007 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i3ZRFAE..ZGZ1#¥490201412-201709

main11361-28010i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥540201407-201709

11401BLOCK SUB-ASSY, CYLINDER

main11410-39035i3ZRFAE..ZGZ1#¥223,000201412-201506

sub11410-39036¥222,000

main11410-39036i3ZRFAE..ZGZ1#¥222,000201506-201612

sub11410-39037¥154,000

main11410-39037i3ZRFAE..ZGZ1#¥154,000201612-201709

sub11410-39038¥154,000

main11410-39126i2ARFXE..AYZ1#¥165,000201407-201709

main11410-39195i8ARFTS..AGZ1#¥153,000201412-202110

sub11410-39255¥153,000

11401LSEAL, ENGINE REAR OIL

main90311-78002i3ZRFAE..ZGZ1#¥2,020201412-201709

main90311-89013i2ARFXE..AYZ1#¥1,390201407-201408

sub90311-89015¥1,390

main90311-89014i8ARFTS..AGZ1#..ARL,GCC,GEN¥1,270201412-202004

main90311-89015i2ARFXE..AYZ1#¥1,390201408-201709

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..AGZ1#¥240201412-201709

main90910-02163i3ZRFAE..ZGZ1#¥190201412-201709

main90910-02173i2ARFXE..AYZ1#¥240201407-201709

main90910-02197i8ARFTS..AGZ1#..ARL,GCC,GEN¥240201709-202004

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFXE..AYZ1#¥140201407-201709

main90253-14003i8ARFTS..AGZ1#¥140201412-201709

11420CRANKCASE ASSY, STIFFENING

main11420-36020i2ARFXE..AYZ1#¥33,500201407-201709

main11420-36051i8ARFTS..AGZ1#¥36,900201412-202004

main11420-37020i3ZRFAE..ZGZ1#¥30,800201412-201709

11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06003i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥90201407-202004

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i3ZRFAE..ZGZ1#¥90201412-201709

main90253-15001i2ARFXE..AYZ1#¥120201407-201709

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFXE..AYZ1#;8ARFTS..AGZ1#..ARL,GCC,GEN¥90201407-202004

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFXE..AYZ1#¥1,700201407-201709

main11445-36020i8ARFTS..AGZ1#..ARL,GCC,GEN¥1,870201412-202004

11452GUIDE, OIL LEVEL GAGE

main11452-36040i8ARFTS..AGZ1#..CHI¥2,900201412-202004

main11452-36050i2ARFXE..AYZ1#¥1,300201407-201709

main11452-37020i3ZRFAE..ZGZ1#¥1,580201412-201709

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i3ZRFAE..ZGZ1#¥190201412-201709

main96723-19010i8ARFTS..AGZ1#..ARL,GCC,GEN¥140201412-202004

main96741-19010i2ARFXE..AYZ1#¥250201407-201709

12101PAN SUB-ASSY, OIL

main12101-36050i2ARFXE..AYZ1#¥11,600201407-201709

main12101-36080i8ARFTS..AGZ1#..CHI¥11,600201412-202004

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥160201407-202004

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥90201407-202004

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-36030i2ARFXE..AYZ1#¥1,720201407-201709

main12121-36060i8ARFTS..AGZ1#¥2,270201412-201811

main12121-36061i8ARFTS..AGZ1#..ARL,GCC,GEN¥1,890201811-202004

13620BBALANCER ASSY, ENGINE

main13620-36020i2ARFXE..AYZ1#¥34,400201407-201501

main13620-36040i8ARFTS..AGZ1#¥41,300201412-201705

sub13620-36041¥34,400

main13620-36041i8ARFTS..AGZ1#..CHI¥34,400201706-202004

main13620-36060i2ARFXE..AYZ1#¥31,300201501-201709

15301GAGE SUB-ASSY, OIL LEVEL

main15301-36031i2ARFXE..AYZ1#¥1,000201407-201912

sub15301-36032¥750

main15301-36032i2ARFXE..AYZ1#¥750202001

main15301-36060i8ARFTS..AGZ1#..CHI¥820201412-202004

main15301-37020i3ZRFAE..ZGZ1#¥820202003

main15301-37040i3ZRFAE..ZGZ1#¥1,000201412-202002

sub15301-37020¥820

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥140201407-202004

9010508056

main90105-08056¥130

9011906938

main90119-06938¥60

9012606015

main90126-06015¥110

9012608058

main90126-08058¥80

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

9151281032

main91512-81032¥110

91551L0845

main91551-L0845¥100

9167180614

main91671-80614¥60

29 parts on this diagram · 7 diagrams in section
