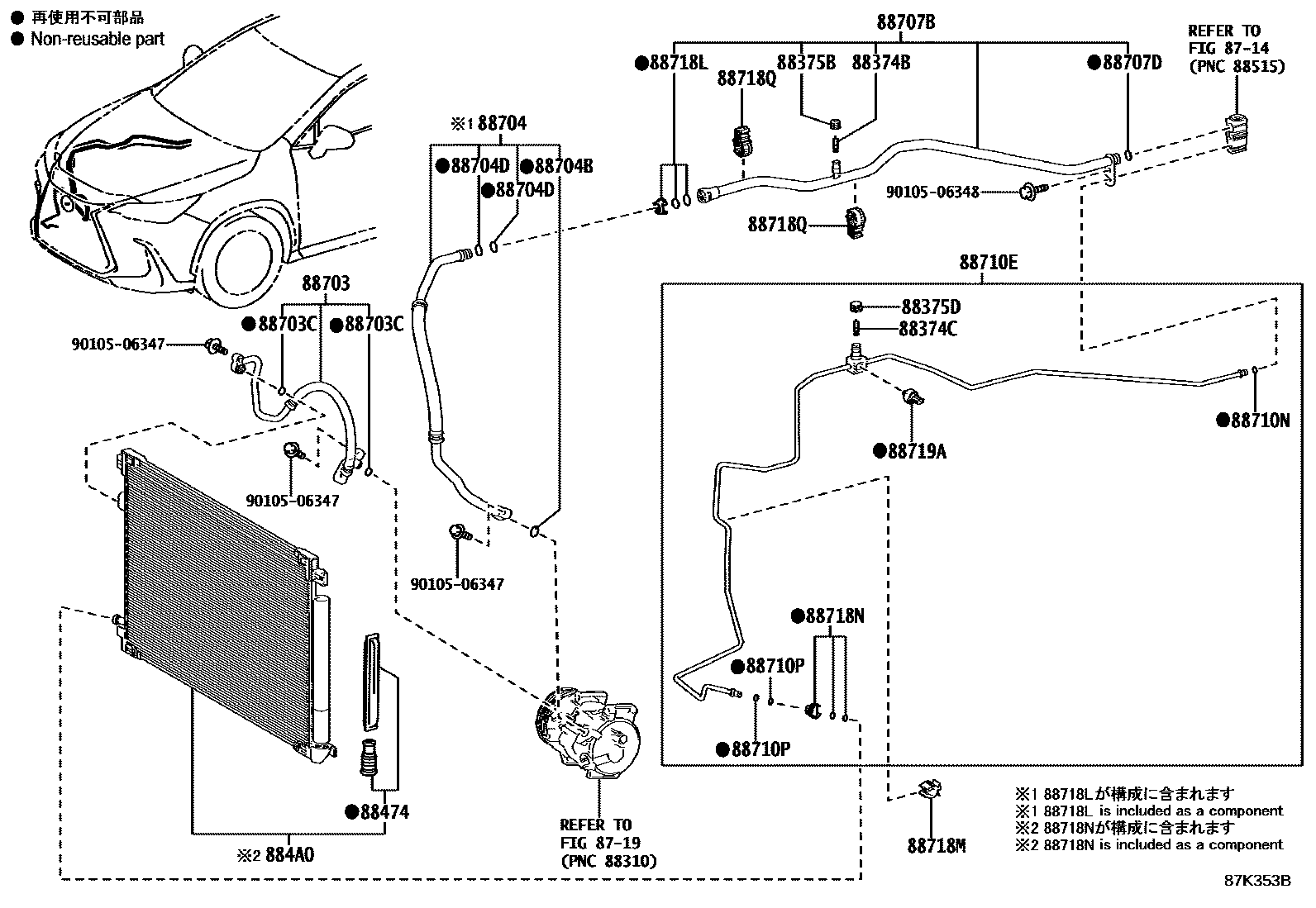

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1W/O(RADIATOR(FOR INVERTER COO0003 1W(RADIATOR(FOR INVERTER COOLI0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAAZA2#..RHD202403-202506

88374CVALVE, SERVICE, NO.2

main88374-30010iTAZA25..LHD;AAZH20,25,MAZA20202403

main88374-74010iAAZH21,26202403

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAAZH26..LHD..EUR202403

UKRAINE SPEC

main88375-30290iAAZA2#202403-202506

main88375-30310iAAZH20,25..EUR202111-202403

main88375-30320iAAZH26..EUR202403

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAAZH20,25..LHD..EUR202403

CHILE SPEC

main88375-30310iAAZH26..EUR202403

main88375-30320iAAZH20,25..EUR202403

main88375-74010iAAZH21,26..CHI,GEN202111-202403

TAIWAN SPEC

88474DRYER, COOLER

main88474-12020iAAZH25,TAZA25..GCC202111-202405

884A0CONDENSER ASSY, COOLER

main884A0-33040iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

main884A0-78010supersedes 884A0-33060iAAZH20,25..EUR202111-202403

TOWING PACKAGE-1500KG

main884A0-78020iAAZH21,26202111-202403

main884A0-78030iAAZH26..LHD202303-202403

NORWAY SPEC

88703HOSE SUB-ASSY, DISCHARGE

main88703-78050iAAZH21,26202111-202403

main88711-42040iMAZA20202403

main88711-42050iAAZA2#202403-202506

main88711-78010iTAZA25..GCC202111-202405

main88711-78020supersedes 88711-78040iAAZH25..GCC202111-202405

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-42730iAAZA2#202403-202506

main88704-42750iAAZH21,26202111-202403

main88704-78040iTAZA25..GCC202111-202405

main88704-78050supersedes 88704-42840iAAZH20,25..EUR202111-202403

TOWING PACKAGE-1500KG

main88704-78060iMAZA20202403

main88704-78070iTAZA25..GCC202405-202507

main88704-78090iTAZA25..EUR,GEN202403

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iTAZA25..GCC;AAZH20,25,MAZA20202403

ID=13.4,OD=18.2

main90099-14157×2iAAZH21,26202403

ID=13.4,OD=18.2

88704DRING, O, NO.2 (FOR SUCTION HOSE)

main90099-14157×2iAAZA2#202111-202403

ID=13.4,OD=18.2

88707BTUBE SUB-ASSY, SUCTION, B

main88707-42180supersedes 88707-42170iAAZA2#..LHD202403-202506

main88707-42220iAAZA2#..RHD202403-202506

main88707-42230iAAZH20,25..RHD..EUR202111-202403

main88707-42240iAAZH20,25..RHD..GEN202111-202403

main88707-78070iTAZA25..LHD..(EUR,GEN)202111-202403

main88707-78090iTAZA25..RHD202403-202507

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iTAZA25..EUR,GEN;AAZA2#,AAZH20,25,MAZA20202111-202405

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-42120iAAZA2#..LHD202403-202506

main88710-42160iAAZH20,25..LHD..(CHI,GEN)202111-202403

AZB,GRZ SPEC&TOWING PACKAGE-1500KG

main88710-42190iAAZA2#..RHD202111-202403

main88710-42210iAAZH20,25..RHD..GEN202111-202403

main88710-78080iTAZA25..GCC202405

main88710-78090iTAZA25..LHD..(EUR,GEN)202111-202403

main88710-78110iTAZA25..RHD202111-202403

main88710-78210iAAZH20,25..EUR202403

main88710-78230supersedes 88710-78190iAAZH20,25..RHD..GEN202403-202507

main88710-42150supersedes 88710-78190iAAZH20,25..LHD..EUR202111-202403

TOWING PACKAGE-1500KG

main88710-42200supersedes 88710-78180iAAZH20,25..RHD..EUR202111-202403

TOWING PACKAGE-1500KG

main88710-78200iAAZH20,25..LHD..EUR202111-202403

CHILE SPEC

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119×3iTAZA25..EUR,GEN;AAZA2#,AAZH20,25,MAZA20202111-202405

ID=6.7,OD=10.3

main90099-14157×2iAAZH21,26202403

ID=13.4,OD=18.2

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14158×2iAAZH20,25..EUR202111-202403

ID=6.7,OD=10.3

88718LCLAMP, PIPING

main88718-42110iAAZH21,26202403

main88718-52280iAAZH20,25,MAZA20,TAZA25202403

88718MCLAMP, PIPING

main88718-2F110iAAZA2#202403-202506

88718NCLAMP, PIPING

main88718-1E150iAAZH25,TAZA25..GCC202111-202405

main88718-42170×2iAAZH21,26202111-202403

88718QCLAMP, PIPING

main88718-2J230×2iAAZH21,26202111-202403

main88718-33490×2iTAZA25..RHD202403-202507

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAAZH25,TAZA25..GCC202111-202405

9010506347

main90105-06347

9010506348

main90105-06348

25 parts on this diagram · 14 diagrams in section
