HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
VIETNAM SPEC
CHILE SPEC
MOLDOVA SPEC
AZB,GRZ SPEC
UKRAINE SPEC
MOROCCO SPEC
TAIWAN SPEC
VIETNAM SPEC
MOLDOVA SPEC
CHILE SPEC
TAIWAN SPEC
MOROCCO SPEC
AZB,GRZ SPEC
UKRAINE SPEC
sub87050-78241
sub87050-78261
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
UKRAINE SPEC&COLD AREA SPEC-COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC-COLD AREA SPEC
ARMENIA SPEC&COLD AREA SPEC-COLD AREA SPEC
AZB,GRZ SPEC&COLD AREA SPEC-COLD AREA SPEC
KAZAKHSTAN SPEC&COLD AREA SPEC-COLD AREA SPEC
BELARUS SPEC&COLD AREA SPEC-COLD AREA SPEC
RUSSIA SPEC&COLD AREA SPEC-COLD AREA SPEC
CHILE SPEC&COLD AREA SPEC-WITHOUT(COLD AREA SPEC)
UKRAINE SPEC&COLD AREA SPEC-WITHOUT(COLD AREA SPEC)
MOLDOVA SPEC&COLD AREA SPEC-WITHOUT(COLD AREA SPEC)
AZB,GRZ SPEC&COLD AREA SPEC-WITHOUT(COLD AREA SPEC)
WITHOUT(COLD AREA SPEC)
MOLDOVA SPEC&WITHOUT(COLD AREA SPEC)
CHILE SPEC&WITHOUT(COLD AREA SPEC)
AZB,GRZ SPEC&WITHOUT(COLD AREA SPEC)
UKRAINE SPEC&WITHOUT(COLD AREA SPEC)
COLD AREA SPEC-WITHOUT(COLD AREA SPEC)
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER,OE PART
DEODORANT FILTER
87710GQUICK HEATER ASSY
AZB,GRZ SPEC&COLD AREA SPEC-COLD AREA SPEC
ARMENIA SPEC&COLD AREA SPEC-COLD AREA SPEC
COLD AREA SPEC-COLD AREA SPEC
COLD AREA SPEC
BELARUS SPEC&COLD AREA SPEC-COLD AREA SPEC
RUSSIA SPEC&COLD AREA SPEC-COLD AREA SPEC
UKRAINE SPEC&COLD AREA SPEC-COLD AREA SPEC
KAZAKHSTAN SPEC&COLD AREA SPEC-COLD AREA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
VIETNAM SPEC
AZB,GRZ SPEC
UKRAINE SPEC
MOROCCO SPEC
TAIWAN SPEC
CHILE SPEC
MOLDOVA SPEC
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
UKRAINE SPEC
MOROCCO SPEC
AZB,GRZ SPEC
MOLDOVA SPEC
CHILE SPEC
VIETNAM SPEC
TAIWAN SPEC
AZB,GRZ SPEC
MOLDOVA SPEC
CHILE SPEC
VIETNAM SPEC
TAIWAN SPEC
MOROCCO SPEC
UKRAINE SPEC
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
HONG KONG SPEC
INDIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
INDIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
INDIA SPEC
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
SOUTH AFRICA SPEC
MALAYSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
MALAYSIA SPEC
INDONESIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
INDONESIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
INDONESIA SPEC
THAILAND SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
THAILAND SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
THAILAND SPEC
SINGAPOLE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SINGAPOLE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
SINGAPOLE SPEC
BRUNEI SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
BRUNEI SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
BRUNEI SPEC
MACAU SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
MACAU SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
MACAU SPEC
HONG KONG SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
HONG KONG SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
sub88650-78381
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER
sub88650-78391
INDIA SPEC&SEAT COVER MATERIAL-OVERTRAIL SYNTHETIC LEATHER
HONG KONG SPEC
HONG KONG SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
HONG KONG SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
MACAU SPEC
MACAU SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
MACAU SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
BRUNEI SPEC
BRUNEI SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
BRUNEI SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SINGAPOLE SPEC
SINGAPOLE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
SINGAPOLE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
THAILAND SPEC
THAILAND SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
THAILAND SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
INDONESIA SPEC
INDONESIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
INDONESIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
MALAYSIA SPEC
MALAYSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
MALAYSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
SEAT COVER MATERIAL-OVERTRAIL SYNTHETIC LEATHER
SEAT COVER MATERIAL-OVERTRAIL SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
INDIA SPEC
INDIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
INDIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-OVERTRAIL SYNTHETIC LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS &PASSENGER)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
main90119-06951
9015960303
main90159-60303
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282

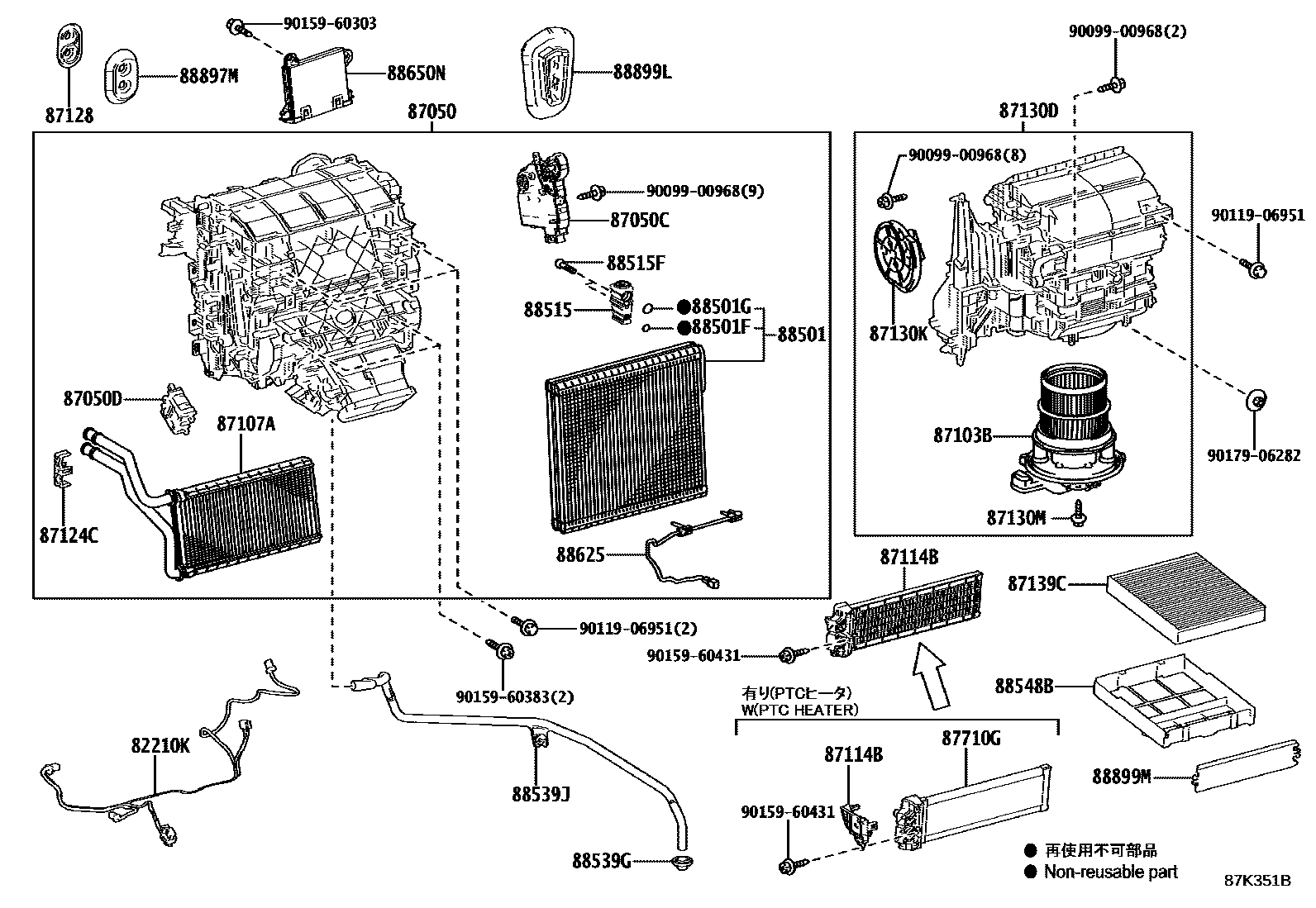

33 parts on this diagram · 2 diagrams in section
