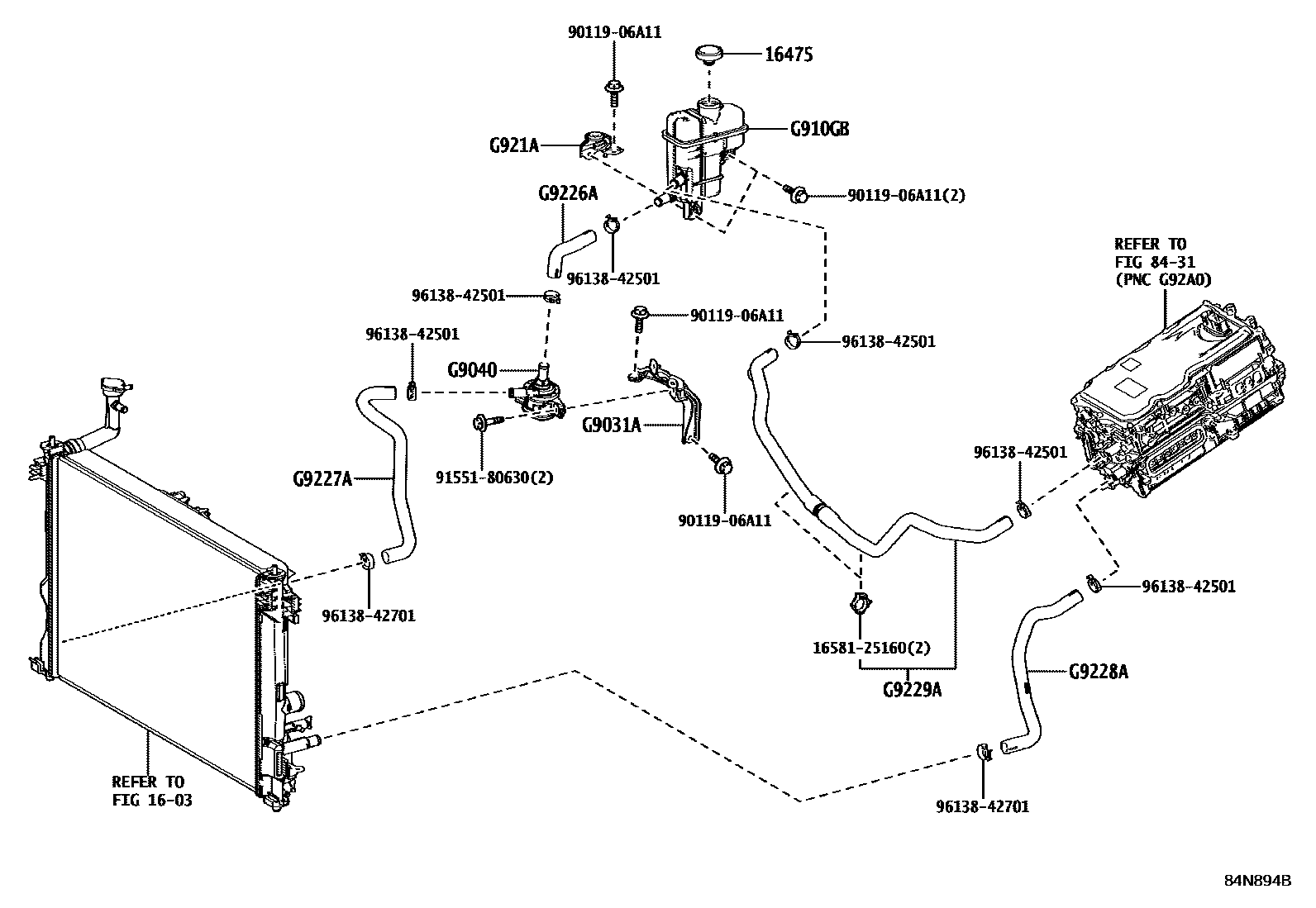

INVERTER COOLING

0001 1W/O(OIL COOLER) 0002 1W/O(OIL COOLER) 0004 1W(OIL COOLER) 0006 1

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AAZH25..GCC¥1,200202111-202405

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAAZH25..GCC202111-202405

mainG914142010iAAZH20,25..CHI,GEN202111-202403

TOWING PACKAGE-1500KG

mainG914178010iAAZH20,25..EUR202111-202403

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042010iAAZH20,25..CHI,GCC,GEN202111-202302

TOWING PACKAGE-1500KG&RADIATOR-699*453*16 FP2.5

mainG904042020iAAZH21,26;AAZH20,25..EUR202111-202302

mainG904048050iAAZH21,26;AAZH20,25..EUR202303-202403

mainG904048060iAAZH20,25..EUR202303-202403

TOWING PACKAGE-1500KG&RADIATOR-699*453*16 FP2.5

mainG904048060iAAZH20,25202303-202405

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAAZH2#202111-202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAAZH2#202111-202405

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAAZH20,25202111-202405

mainG922642010iAAZH20,25..CHI,GEN202111-202403

TOWING PACKAGE-1500KG&RADIATOR-699*453*16 FP2.5

mainG922642020iAAZH21,26202111-202403

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAAZH25..GCC202111-202405

mainG922742010iAAZH20,25..CHI,GEN202111-202403

TOWING PACKAGE-1500KG&RADIATOR-699*453*16 FP2.5

mainG922742020iAAZH21,26202111-202403

mainG922778010iAAZH20,25..EUR202111-202403

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842040iAAZH20,25..EUR202111-202403

TOWING PACKAGE-1500KG&RADIATOR-699*453*16 FP2.5

mainG922842040iAAZH25..GCC202111-202405

mainG922878050iAAZH20,25..EUR202111-202403

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAAZH20,25..CHI,EUR,GEN202403

mainG922942030iAAZH21,26202111-202403

mainG922978020iAAZH20,25..EUR202111-202403

mainG922978030iAAZH25..GCC202111-202405

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9155180630

main91551-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

16 parts on this diagram · 4 diagrams in section
