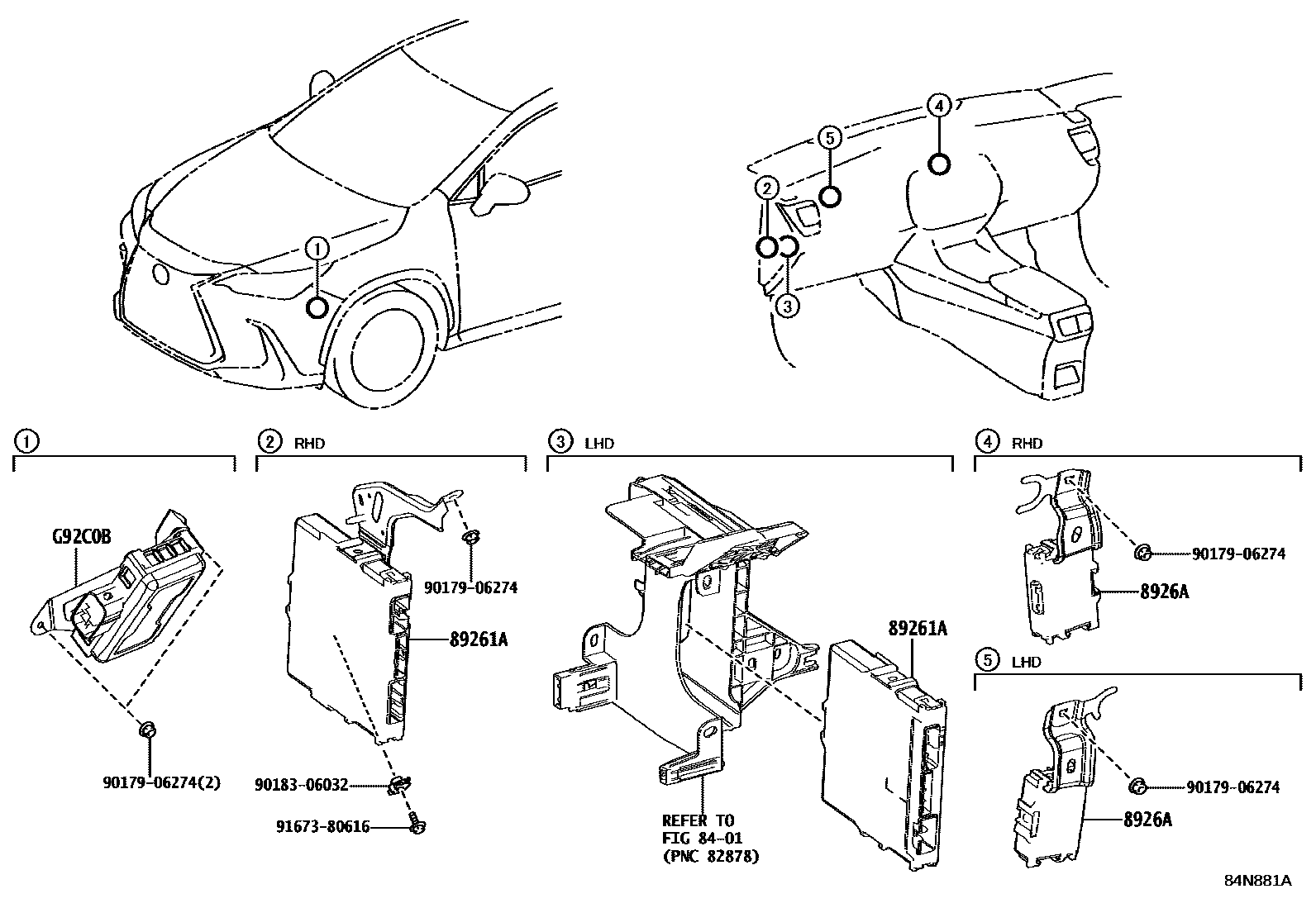

ECO-RUN SYSTEM

8401

89261ACOMPUTER, ENGINE STOP AND START

main89260-78050iAAZA2#,TAZA25..RHD202111-202303

*614

main89260-78060iAAZA2#,TAZA25..RHD202303-202308

*614

main89260-78061iAAZA2#,TAZA25..RHD202309-202403

*614

main89260-78070iTAZA25..RHD202403-202507

*614

main89261-78030iAAZA2#,TAZA25..LHD202111-202212

*614

main89261-78040iAAZA2#,TAZA25..LHD202303-202308

*614

main89261-78041iTAZA25..GCC202309-202405

*614

main89261-78070iAAZA2#,TAZA25..LHD202212-202303

*614

main89261-78090iAAZA2#..LHD202403-202507

*614

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-78020iAAZA2#,TAZA25..LHD..(CHI,EUR,GEN)202111-202507

main8926A-78030iAAZA2#,TAZA25..RHD202111-202507

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C078030iAAZA2#202111-202506

9017906274

main90179-06274

9018306032

main90183-06032

9167380616

main91673-80616

7 parts on this diagram · 1 diagram in section
